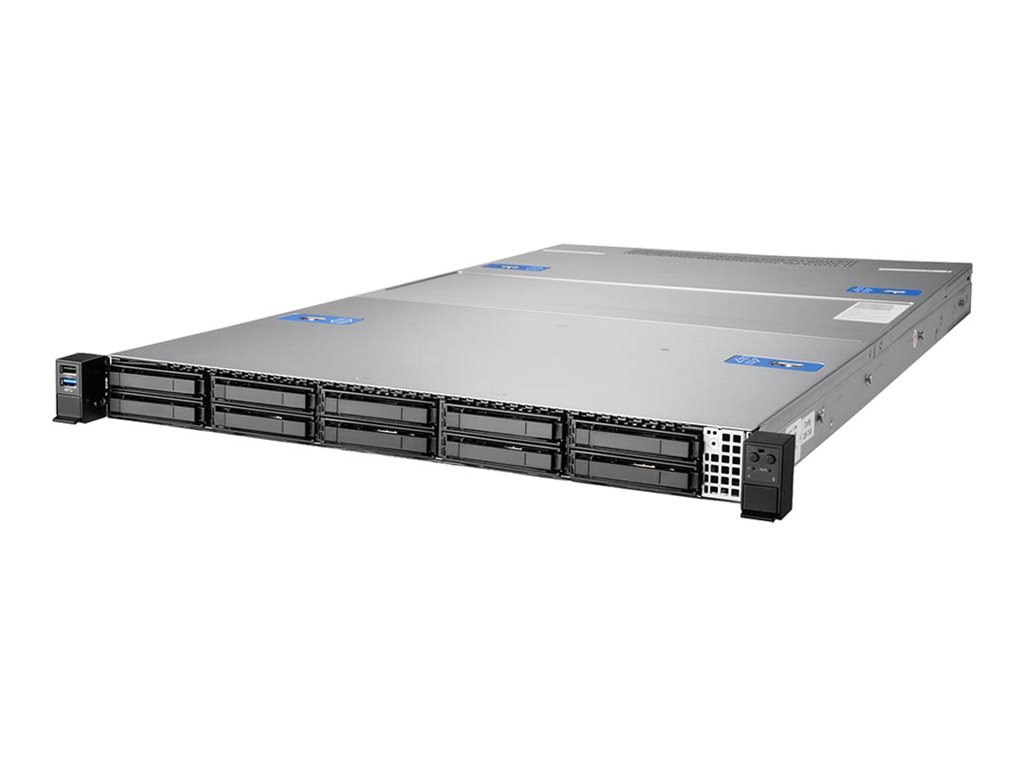

MiTAC R1520G6U2XD - rack-mountable no CPU - SSD
Server
rack-mountable 1U
2-way
no CPU
SATA
hot-swap 2.5" bay(s)
SSD
AST2600
Gigabit Ethernet
no OS
monitor: none
Weight: 27.00 KG
- Rack-mountable form factor allows for efficient use of space
- Hot-swap bays support easy replacement of drives
- Power redundancy ensures reliability during operation
- High capacity for memory expansion with 32 slots available
- Flexible environmental operation range to suit various settings
Overview
The Mio MiTAC R1520G6U2XD is a robust rack-mountable server designed for reliability and flexibility in demanding environments. With an internal capacity of 10 bays, it supports hot-swap functionality for SSDs, ensuring minimal downtime during maintenance. Supported by a powerful 1300-watt power supply with redundancy, this server is built to handle critical operations effectively. Operating within a temperature range of 10°C to 35°C with a humidity tolerance between 5% to 95%, it can function reliably in various conditions. Equipped with advanced PCIe 5.0 x16 and Open Compute Project mezzanine expansion slots, the R1520G6U2XD offers significant upgradability, making it suitable for evolving business needs. Designed for scalable server environments, it provides ample memory expansion capabilities with up to 32 slots for DDR5 SDRAM, ensuring high performance for multiple applications.
Main Specifications
- Product Description
- MiTAC R1520G6U2XD - rack-mountable no CPU - SSD
- Type
- Server - rack-mountable
- Height (Rack Units)
- 1U
- Server Scalability
- 2-way
- Processor
- No CPU
- Processor Socket
- LGA4710 Socket
- RAM
- 8192 GB (max) - DDR5 SDRAM
- Server Storage Bays
- Hot-swap 2.5"
- Hard Drive
- SSD (hot-swap) - SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)
- Optical Storage
- No optical drive
- Graphics Controller
- ASPEED AST2600
- Networking
- 1GbE
- Power Redundancy
- Yes
- OS Provided
- No operating system
- Dimensions (WxDxH)
- 43.8 cm x 77 cm x 8.7 cm
Associated Documents
Product Features
Reliable hot-swap capability
The server features hot-swap bays that enable users to replace drives without downtime, facilitating maintenance and ensuring continuous operation.
Extensive memory capacity
With 32 slots for DDR5 SDRAM, the server offers significant options for memory expansion, supporting up to 6400 MHz speeds for high performance.
Robust power management
Equipped with a 1300-watt power supply and a 1+1 redundancy scheme, this server maintains operational stability even in the case of a power unit failure.
Flexible networking options
The MiTAC R1520G6U2XD is equipped with multiple data link protocols including Gigabit Ethernet and Fast Ethernet, ensuring versatile networking capabilities.
Versatile expansion possibilities
The PCIe 5. 0 x16 expansion slots and Open Compute Project mezzanine support make this server adaptable for various configurations and future upgrades.
Specifications
General
- Built-in Devices
- 6 x fans
- Type
- Server
- Internal Bays Qty
- 10
- Front Accessible Bays Qty
- 10
- Hot-Swap Bays Qty
- 10
- Server Scalability
- 2-way
- Product Form Factor
- Rack-mountable - 2U
Connections & Expansion
- Slots
- 2 PCIe 5.0 x16, 2 Open Compute Project mezzanine (OCP) 3.0 (Mezzanine)
- Interfaces
- 1 x USB 3.0, 1 x Mini DisplayPort, 1 x LAN (Gigabit Ethernet) - RJ-45
RAM
- Effective Memory Speed
- 6400 MHz
- Rated Memory Speed
- 6400 MHz
- Slots
- 32 (Total) / 32 (empty)
- Technology
- DDR5 SDRAM
- Installed Size
- 8192 GB (max)
Networking
- Remote Management Protocol
- IPMI 2.0
- Remote Management Controller
- Aspeed AST2600
- Ethernet Controller
- Realtek RTL8211F
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
Miscellaneous
- Compliant Standards
- FCC SDOC Class A, DOC-A, CB, LVD, RCM, VCCI, BSMI, NRTL, IC, sDoC, RoHS 2.0, RoHS
Power
- Device Type
- Power supply
- Power Redundancy
- Yes
- Voltage Required
- AC 100-127/200-240 V
- Power Provided
- 1300 Watt
- Power Redundancy Scheme
- 1+1
- 80 PLUS Certification
- 80 PLUS Titanium
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Optical Storage
- Type
- No optical drive
Operating System / Software
- OS Provided
- No operating system
Monitor
- Monitor Type
- None.
Graphics Controller
- Video Interfaces
- Mini DisplayPort
- Graphics Processor
- ASPEED AST2600
Hard drive
- Type
- SSD - hot-swap
- Interface Type
- SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)
Weight & dimensions
- Width
- 43.8 cm
- Height
- 8.7 cm
- Depth
- 77 cm
Processor / Chipset
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- CPU
- No CPU
- CPU Socket
- LGA4710 Socket
- Motherboard Name
- R520G6SB
Dimensions & Weight (Shipping)
- Shipping Weight
- 34.5 kg
