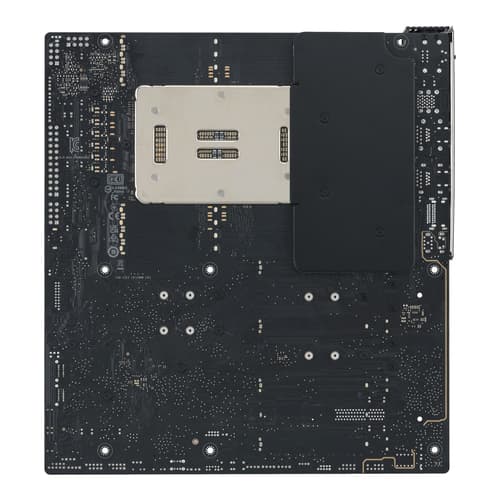

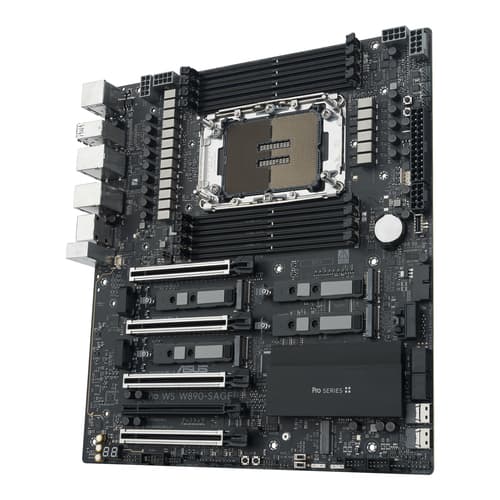

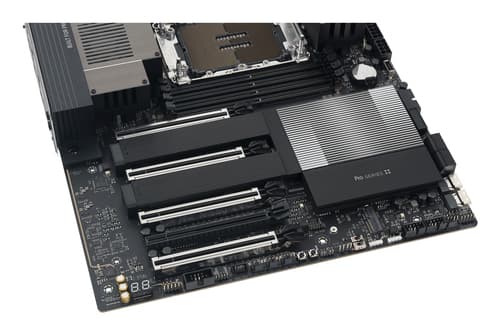

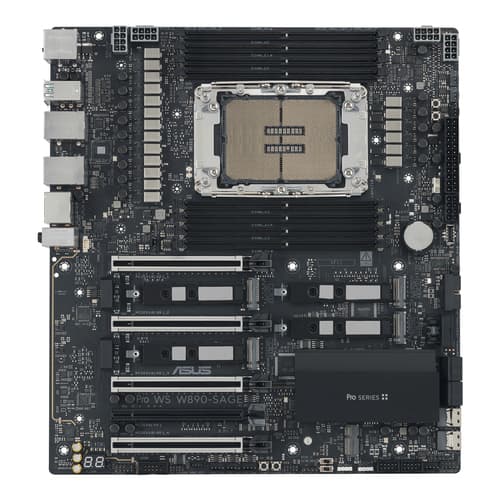

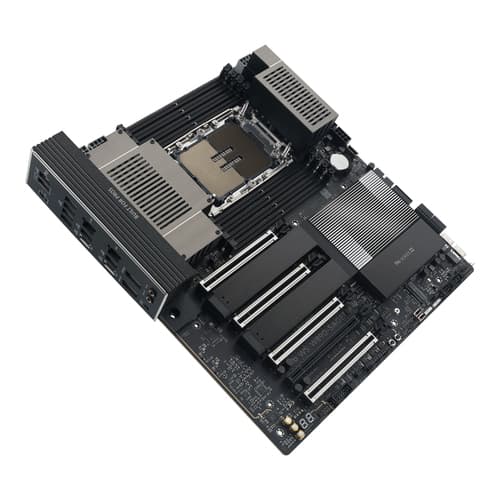

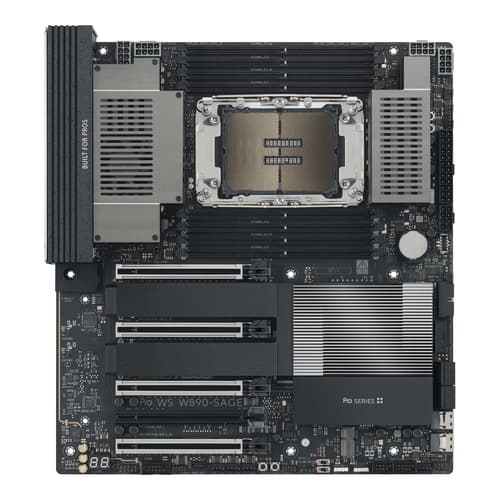

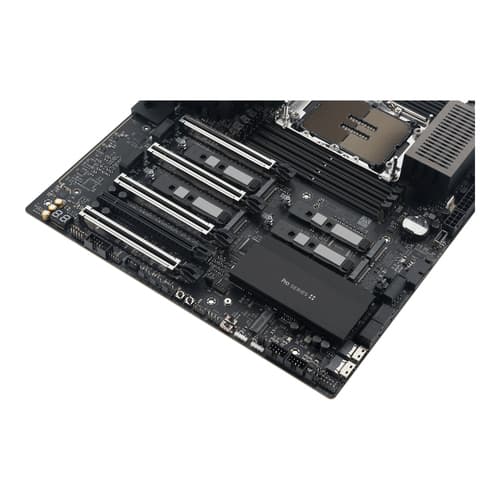

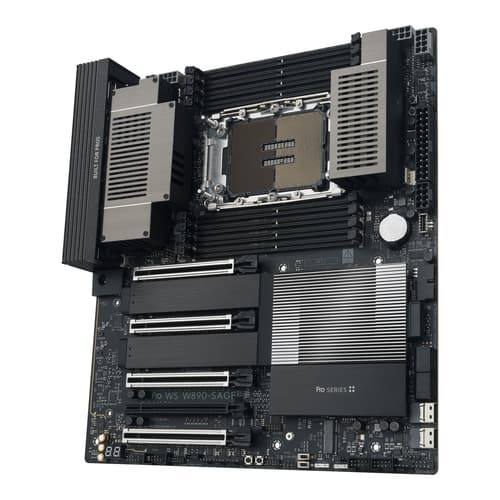

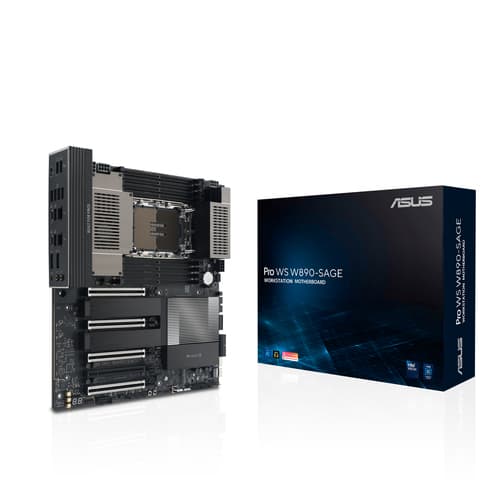

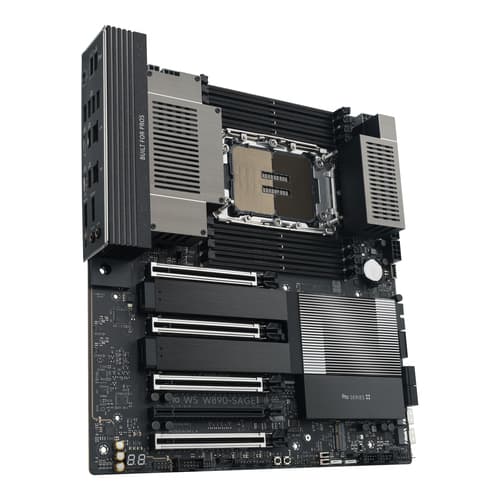

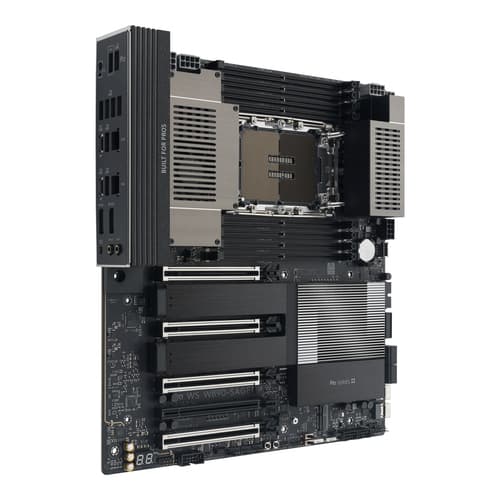

PRO WS W890-SAGE
ASUS PRO WS W890-SAGE. Processor manufacturer: Intel, Processor socket: LGA 4710-2, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Quad-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA4710-2 Socket Supports up to 86-Core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
- Ultrafast Connectivity: Four PCIe® 5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and Memory Overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (2DPC).
- Robust Power and Thermal Design: 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
- Ready for Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion card, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Overview
ASUS PRO WS W890-SAGE, Intel, LGA 4710-2, Intel® Xeon®, LGA 4710-2, DDR5-SDRAM, DIMM
Specifications
Processor
- Processor socket
- LGA 4710-2
- Compatible processor series
- Intel® Xeon®
- Processor manufacturer
- Intel
- Supported processor sockets
- LGA 4710-2
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 8
- Memory slots type
- DIMM
- Memory channels
- Quad-channel
- ECC сompatibility
- ECC
Storage controllers
- RAID levels
- 0, 5, 1, 10
- Supported storage drive interfaces
- M.2, SATA III, SlimSAS
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 10
- RAID support
- Yes
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of chassis fan connectors
- 5
- Number of COM connectors
- 1
- Integrated SAS ports
- 2
- Number of temperature sensor headers
- 1
- RGB LED pin header
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel connector
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 2
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 5
- 12V power connector
- Yes
- Number of water pump connectors
- 1
- Number of RGB LED pin headers
- 2
Graphics
- Parallel processing technology support
- Not supported
- Maximum resolution
- 7680 x 4320 pixels pixels

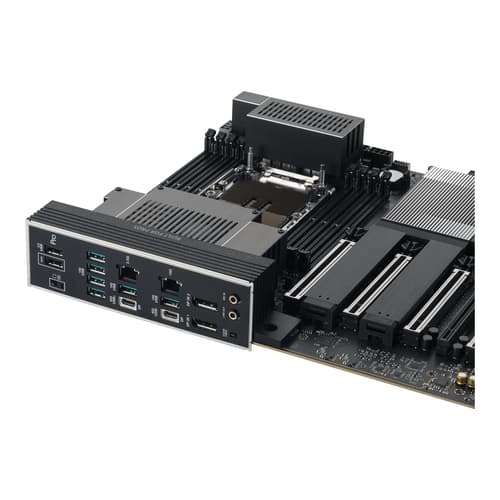

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 6
- USB4 Gen 3x2 ports quantity
- 2
- Headphone outputs
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- VGA (D-Sub) ports quantity
- 0
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Line-in
- Yes
- HDMI ports quantity
- 0
- DVI-D ports quantity
- 0
Network
- Ethernet interface type
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Wi-Fi
- No
- Ethernet LAN
- Yes
Features
- Motherboard form factor
- CEB
- Motherboard chipset
- Intel W890
- Audio output channels
- 7.1 channels channels
- Component for
- Workstation
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11
- Audio chip
- Realtek ALC1220P
- Product colour
- Black
- Cooling type
- Passive
- Power source type
- ATX
Expansion slots
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 5.0
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 4
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- PCI Express x16 (Gen 5.x) slots
- 4
- 1st M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 5.0
BIOS
- BIOS type
- UEFI AMI
- BIOS flashback button
- Yes
- BIOS memory size
- 512 Mbit Mbit
- Clear CMOS button
- Yes
Packaging data
- Package width
- 376 mm mm
- Package depth
- 320 mm mm
- Package height
- 100 mm mm
- Package weight
- 4.12 kg kg
Weight & dimensions
- Width
- 305 mm mm
- Height
- 50 mm mm
- Depth
- 280 mm mm

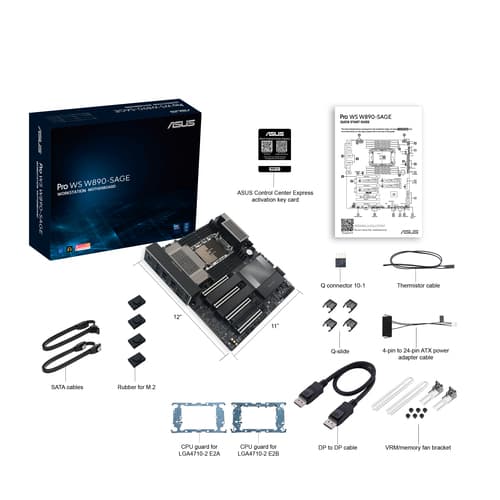

Packaging content
- Cables included
- SATA, DisplayPort
- Screws included
- Yes
Other features
- Weight
- 2.75 kg kg
- Number of M.2 (E) slots
- 1
