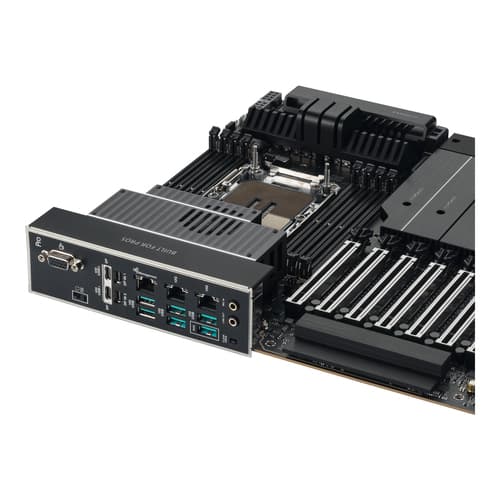

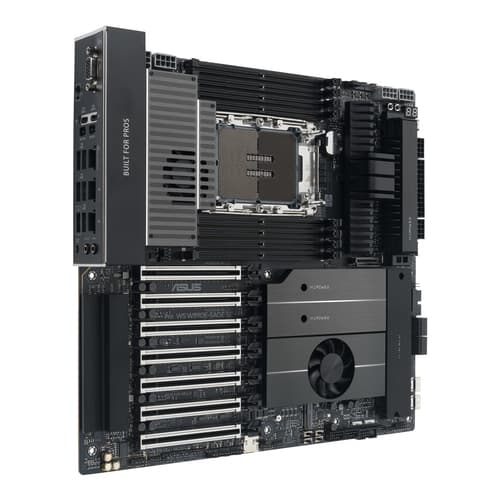

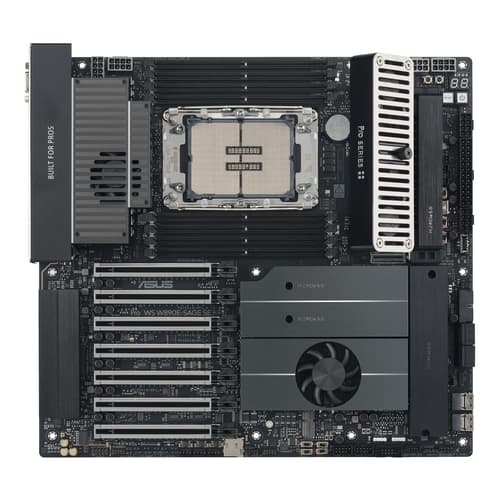

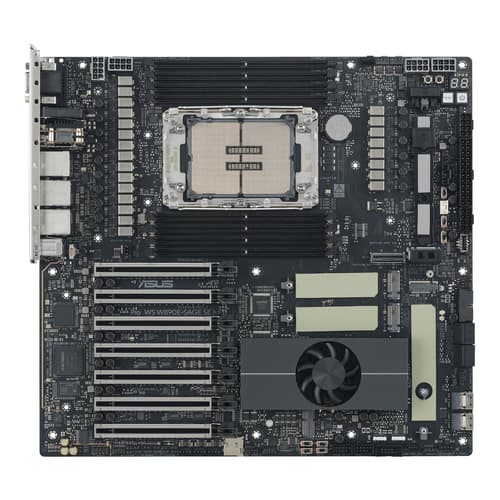

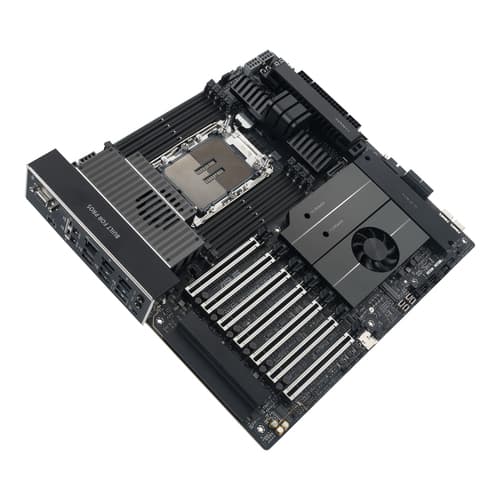

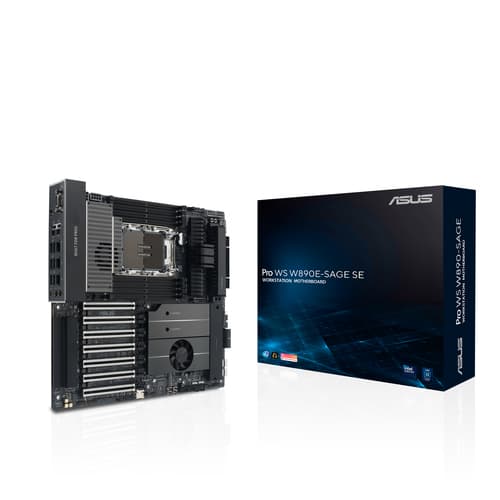

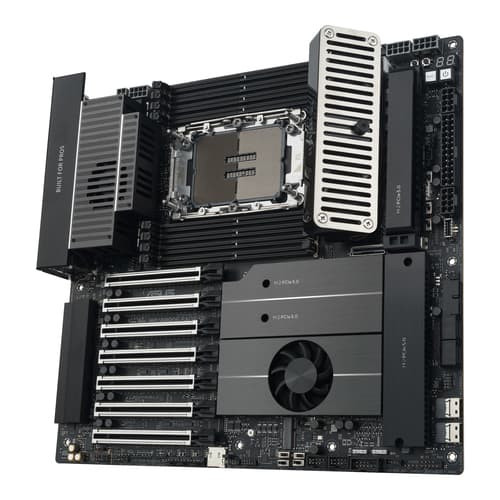

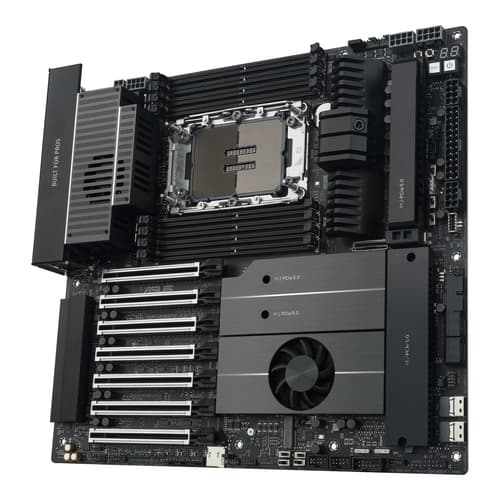

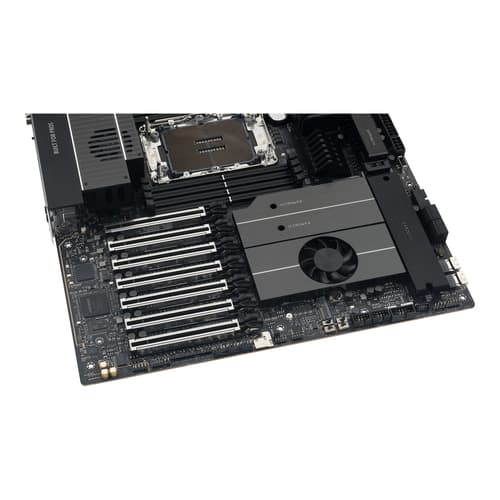

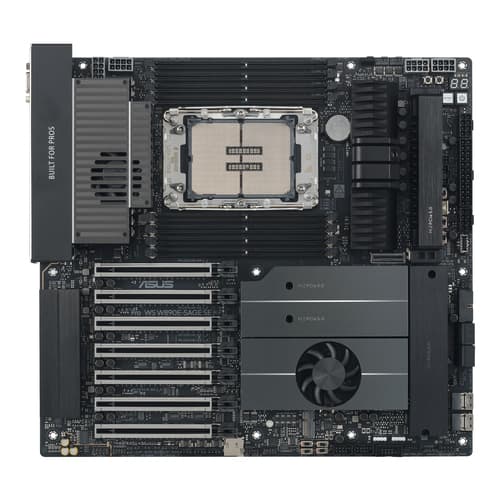

PRO WS W890E-SAGE SE

Manuf P/N: 90MB1LH0-M0EAY0

APAXON#: 13144179

EAN: 4711636389372

ASUS Pro WS W890E-SAGE SE. Processor manufacturer: Intel, Processor socket: LGA 4710-2, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
  • Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.

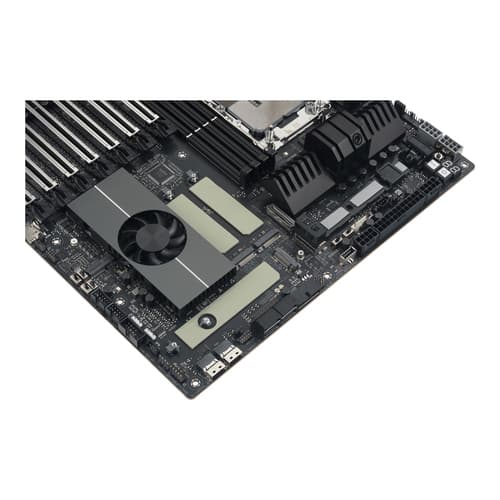

  • Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
  • CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).

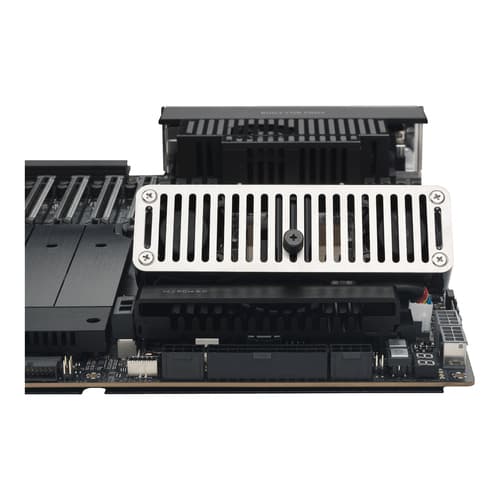

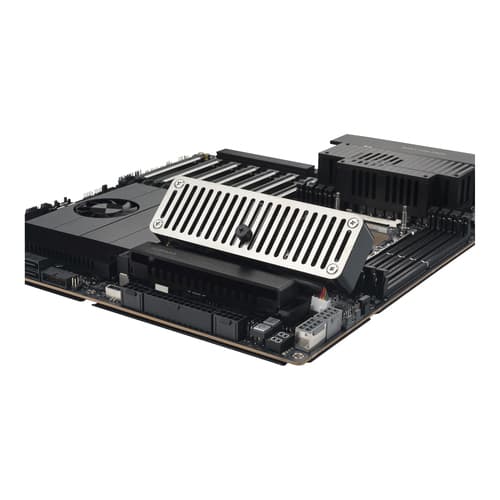

  • Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

ASUS Pro WS W890E-SAGE SE, Intel, LGA 4710-2, Intel® Xeon®, LGA 4710-2, DDR5-SDRAM, DIMM

BIOS

BIOS type
UEFI AMI
Clear CMOS button
Yes
BIOS memory size
512 Mbit Mbit
BIOS flashback button
Yes

Processor

Processor socket
LGA 4710-2
Compatible processor series
Intel® Xeon®
Supported processor sockets
LGA 4710-2
Processor manufacturer
Intel

Memory

Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC
Memory channels
Octa-channel

Storage controllers

Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 5, 1, 10
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Number of HDDs supported
4
Number of storage drives supported
10

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
USB 3.2 Gen 2x2 connectors
1
Chassis intrusion connector
Yes
Number of EPS power connectors (8-pin)
5
Integrated SAS ports
2
RGB LED pin header
Yes
Number of chassis fan connectors
5
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of water pump connectors
1
Number of temperature sensor headers
1
Number of RGB LED pin headers
2

Features

Motherboard chipset
Intel W890
Windows operating systems supported
Windows 11
Product colour
Black
Component for
Workstation
Motherboard chipset family
Intel
Motherboard form factor
EEB
Audio output channels
7.1 channels channels
Audio chip
Realtek ALC1220P
Power source type
ATX
Cooling type
Passive

Packaging data

Package width
362 mm mm
Package depth
377 mm mm
Package weight
3.7 kg kg
Package height
103 mm mm

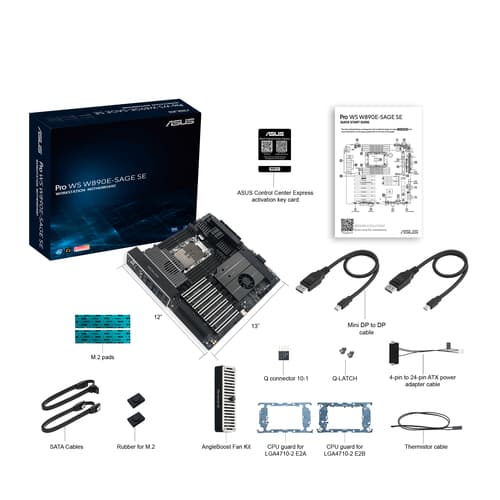

Packaging content

Cables included
SATA, DisplayPort
Screws included
Yes

Expansion slots

Number of M.2 (M) slots
4
1st M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
4th M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
4th M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
7

Weight & dimensions

Width
305 mm mm
Height
50 mm mm
Depth
330 mm mm

Other features

Mini DisplayPorts quantity
2
Weight
3.4 kg kg
Number of M.2 (E) slots
1

Rear panel I/O ports

USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB4 Gen 3x2 ports quantity
2
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
HDMI ports quantity
0
IPMI LAN (RJ-45) port
Yes
Line-in
Yes
VGA (D-Sub) ports quantity
1
DVI-D ports quantity
0
DisplayPort version
1.4

Graphics

Parallel processing technology support
Not supported
Maximum resolution
7680 x 4320 pixels pixels

Network

Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi
No
Ethernet LAN
Yes
