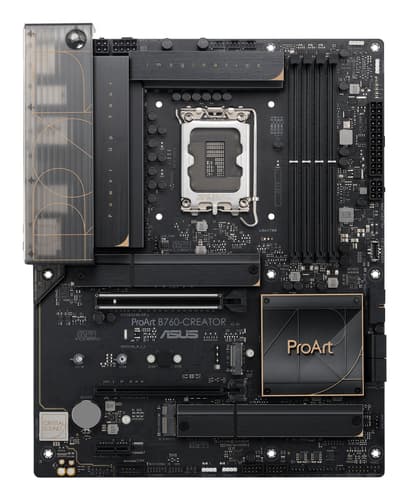

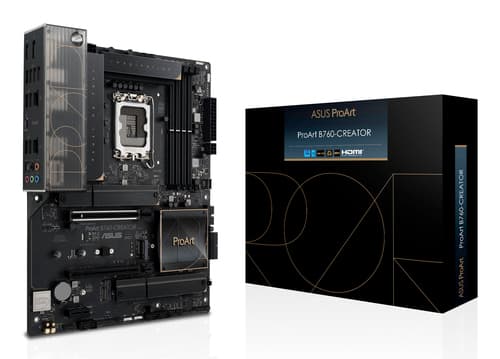

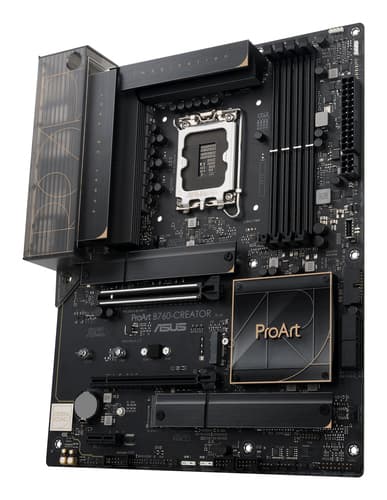

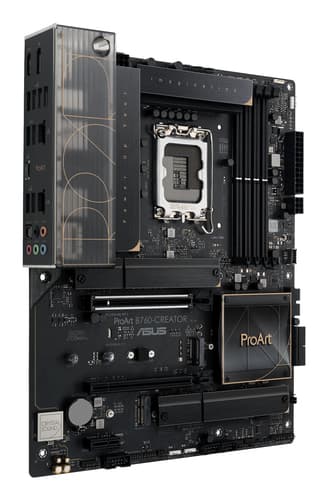

PROART B760-CREATOR
Overview
ASUS PROART B760-CREATOR, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
- ECC сompatibility
- Non-ECC
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 4
- Number of chassis fan connectors
- 4
- EPS power connector (8-pin)
- Yes
- Thunderbolt headers
- 1
- 12V power connector
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
- RGB LED pin header
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of COM connectors
- 1

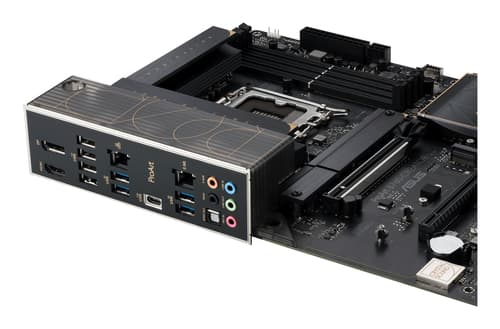

Rear panel I/O ports
- HDMI ports quantity
- 1
- Microphone in
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 4
- DVI-D ports quantity
- 0
- Headphone outputs
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPorts quantity
- 1
Network
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Ethernet interface type
- 2.5 Gigabit Ethernet
Packaging data
- Package width
- 338 mm mm
- Package weight
- 2.43 kg kg
- Package height
- 68 mm mm
- Package depth
- 273 mm mm
Weight & dimensions
- Height
- 50 mm mm
- Depth
- 244 mm mm
- Width
- 305 mm mm
Features
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Audio output channels
- 7.1 channels channels
- Motherboard chipset
- Intel B760
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Other features
- Number of M.2 (E) slots
- 1
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- Number of M.2 (M) slots
- 3

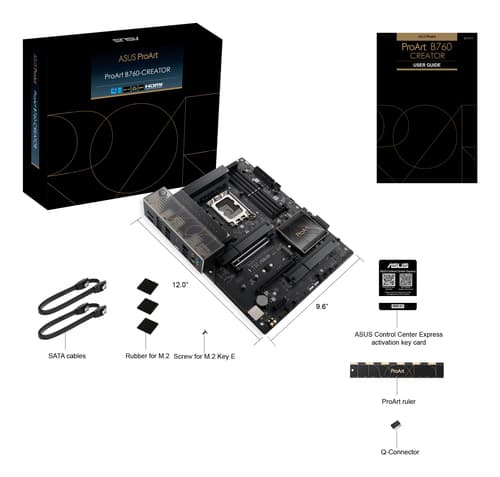

Packaging content
- Cables included
- SATA
BIOS
- BIOS memory size
- 128 Mbit Mbit
- Clear CMOS button
- Yes
