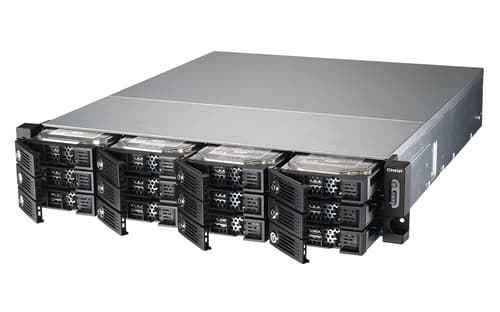

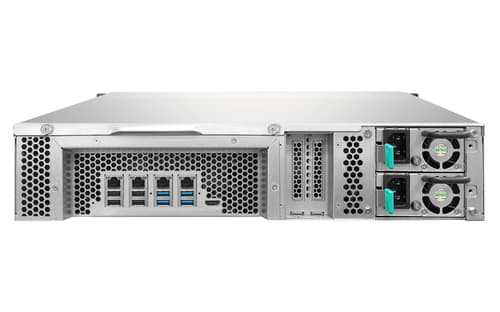

QNAP TVS-1271U-RP NAS RACK (2U) ETHE
QNAP TVS-1271U-RP. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Core™ i5, Processor model: i5-4590S, Processor frequency: 3 GHz. Internal memory: 16 GB, Internal memory type: DDR3. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System
Overview
QNAP TVS-1271U-RP, NAS, Rack (2U), Intel® Core™ i5, i5-4590S, 16 GB, DDR3
Specifications
Storage
- Installed storage drive type
- No
- Supported storage drive types
- HDD & SSD
- Storage drives installed
- No
- Storage drive capacity
- 0 GB GB
- Supported storage drive interfaces
- Serial ATA, Serial ATA II, Serial ATA III
- Total installed storage capacity
- 0 TB TB
- Number of storage drives installed
- 0
- Storage drive sizes supported
- 2.5,3.5" "
- Hot-swap drive bays
- Yes
- Supported file systems
- ext3, ext4, FAT32, HFS+, NTFS
- Number of storage drives supported
- 12
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 6, 10, JBOD
Processor
- Processor family
- Intel® Core™ i5
- Processor manufacturer
- Intel
- Processor threads
- 4
- L3 cache
- 6 MB MB
- CPU configuration (max)
- 1
- ECC supported by processor
- No
- PCI Express slots version
- 3.0
- Processor cache type
- Smart Cache
- Processor model
- i5-4590S
- Processor frequency
- 3 GHz GHz
- Processor generation
- 4th gen Intel® Core™ i5
- Processor cores
- 4
- Processor boost frequency
- 3.7 GHz GHz
- Processor cache
- 6 MB MB
- Bus type
- DMI
- PCI Express configurations
- 1x16, 2x8, 1x8+2x4
- Stepping
- C0
- System bus rate
- 5 GT/s GT/s
- Tcase
- 71.35 °C °C
- Thermal Design Power (TDP)
- 65 W W
- On-board graphics card model
- Intel® HD Graphics 4600
- Memory bandwidth supported by processor (max)
- 25.6 GB/s GB/s
- Conflict-Free processor
- Yes
- Processor code
- SR1QN
- Processor codename
- Haswell
- Processor lithography
- 22 nm nm
- Processor operating modes
- 64-bit
- Processor package size
- 37.5 x 37.5 mm mm
- Processor socket
- LGA 1150 (Socket H3)
- Scalability
- 1S
- Maximum internal memory supported by processor
- 32 GB GB
Graphics
- Maximum on-board graphics card memory
- 1.024 GB GB
- Number of displays supported (on-board graphics)
- 3
- On-board graphics card base frequency
- 350 MHz MHz
- On-board graphics card DirectX version
- 11.1
- On-board graphics card dynamic frequency (max)
- 1150 MHz MHz
- On-board graphics card ID
- 0x412
Performance
- Device class
- Small & Medium Business
- Backup features
- Cloud, iSCSI LUN
- Buzzer
- Yes
- Multilingual support
- Yes
- Number of users
- 30 user(s) user(s)
- Noise level
- 45 dB dB
- Share folder access right management
- Yes
- Security algorithms
- 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
- Access Control List (ACL)
- Yes
- Built-in FTP server
- Yes
- System log
- Yes
- S.M.A.R.T. support
- Yes
- Backup function
- Yes
- Web-based management
- Yes
- Reset button
- Yes
- Browser supported
- Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
- Share folder
- CIFS/SMB
- Type
- NAS
- On/off switch
- Yes
- Built-in UPnP AV media server
- Yes
- Hot spare
- Yes
Software
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Operating system installed
- QNAP Turbo System
- Operating system version
- 4.1
- Windows operating systems supported
- Windows XP Professional
- Server operating systems supported
- Windows Server 2003
Power
- Number of power supply units
- 1
- Power consumption (typical)
- 174.64 W W
- AC input voltage
- 100-240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Output current
- 7 A A
- Power supply location
- Built-in
- Power supply unit (PSU) capacity
- 500 W W
- Power consumption (sleep)
- 88.91 W W
Weight & dimensions
- Depth
- 534 mm mm
- Width
- 482 mm mm
- Height
- 89 mm mm
- Weight
- 16.1 kg kg
Packaging content
- Quick installation guide
- Yes
- Cables included
- AC, LAN (RJ-45)
- Number of screws
- 28
Processor special features
- Embedded options available
- Yes
- Intel Enhanced Halt State
- Yes
- Graphics & IMC lithography
- 22 nm nm
- Intel 64
- Yes
- Intel FDI Technology
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Execute Disable Bit
- Yes
- Idle States
- Yes
- Intel Secure Key Technology version
- 1.00
- Intel Small Business Advantage (SBA) version
- 1.00
- Intel TSX-NI version
- 0.00
- Intel Identity Protection Technology version
- 1.00
- Intel Trusted Execution Technology
- Yes
- Intel® Anti-Theft Technology (Intel® AT)
- Yes
- Intel® Identity Protection Technology (Intel® IPT)
- Yes
- Intel® InTru™ 3D Technology
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- Yes
- Intel® OS Guard
- Yes
- Intel Stable Image Platform Program (SIPP)
- Yes
- Intel Stable Image Platform Program (SIPP) version
- 1.00
- Intel TSX-NI
- No
- Thermal Monitoring Technologies
- Yes
- Thermal solution specification
- PCG 2013C
- Memory channels supported by processor
- Dual
- Memory types supported by processor
- DDR3-SDRAM
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel® Clear Video HD Technology (Intel® CVT HD)
- Yes
- Intel® Hyper Threading Technology (Intel® HT Technology)
- No
- Intel® Insider™
- Yes
- Intel® Quick Sync Video Technology
- Yes
- Intel® Secure Key
- Yes
- Intel® Smart Cache
- Yes
- Intel® Turbo Boost Technology
- 2.0
- Intel® Wireless Display (Intel® WiDi)
- Yes
- Maximum number of PCI Express lanes
- 16
- Number of QPI links
- 0
Network
- Wi-Fi
- No
- DHCP client
- Yes
- Jumbo frames support
- Yes
- iSCSI support
- Yes
- Ethernet LAN
- Yes
- Wake-on-LAN ready
- Yes
- Link aggregation
- Yes
- Ethernet LAN data rates
- 10,100,1000,10000 Mbit/s Mbit/s
- DHCP server
- Yes
- Supported network protocols
- CIFS/SMB, SMB2.1, SMB3.0, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC
Ports & interfaces
- Fiber ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 4
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB port
- Yes
- HDMI ports quantity
- 1
Design
- Cooling type
- Active
- Drive bay locking
- Yes
- Number of fans
- 3 fan(s) fan(s)
- LED indicators
- Yes
- Chassis type
- Rack (2U)
- Product colour
- Black, Grey
- Fan diameter
- 7 cm cm
Memory
- Maximum RAM supported
- 32 GB GB
- Internal memory
- 16 GB GB
- Internal memory type
- DDR3
- Memory slots
- 4
- Flash memory
- 512 MB MB
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
Other features
- Power management
- Yes
- Processor ARK ID
- 80816
