This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

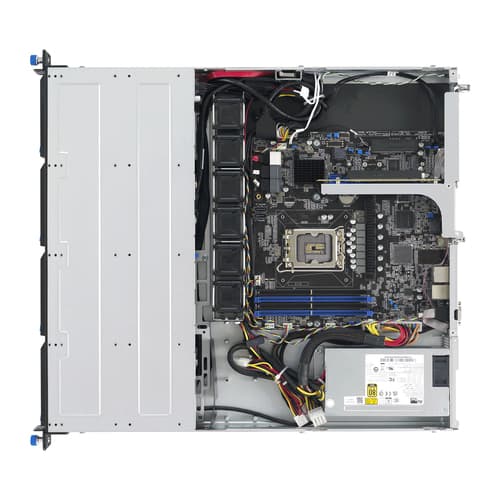

RS300-E12-PS4/350W
- Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
- Dual Intel I210-AT gigabit Ethernet with teaming support
- Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
- Powered by eight-core Intel Xeon E-2400-series processor and Intel Xeon 6300 series processor with support for up to 95 W TDP
- Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
- Simplified system maintenance with a 350 W 80 PLUS Gold power supply
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Chassis-intrusion for enhanced physical security
Overview
ASUS RS300-E12-PS4, Intel C262, LGA 1700, E-2400, DDR5-SDRAM, 8GB, 16GB, 32GB, 128 GB
Specifications
Processor
- Motherboard chipset
- Intel C262
- Number of processors supported
- 1
- Intel Xeon series
- E-2400
- Processor socket
- LGA 1700
Memory
- Maximum internal memory
- 128 GB GB
- Memory channels
- Dual-channel
- Number of DIMM slots
- 4
- Supported RDIMM clock speeds
- 4400,4000,3600 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Supported DIMM module capacities
- 8GB, 16GB, 32GB
Storage
- Number of storage drives supported
- 8
- Number of 3.5" bays
- 4
- Storage drive sizes supported
- 3.5" "
- Hot-swap HDD bays
- Yes
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, Serial ATA III, Serial Attached SCSI (SAS)
Network
- Ethernet LAN
- Yes
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 1
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Number of SATA III connectors
- 8
- COM ports quantity
- 1
Power
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50/60 Hz Hz
- Power supply
- 350 W W
- Input current
- 6.3 A A
- 80 PLUS certification
- 80 PLUS Gold
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
- Storage temperature (T-T)
- -40 - 70 °C °C
Weight & dimensions
- Width
- 497 mm mm
- Depth
- 439.5 mm mm
- Height
- 44 mm mm
- Weight
- 13.5 kg kg
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 1
Design
- Product colour
- Silver
- LED indicators
- Power, Reset, HDD
- Chassis type
- Rack (1U)
