This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

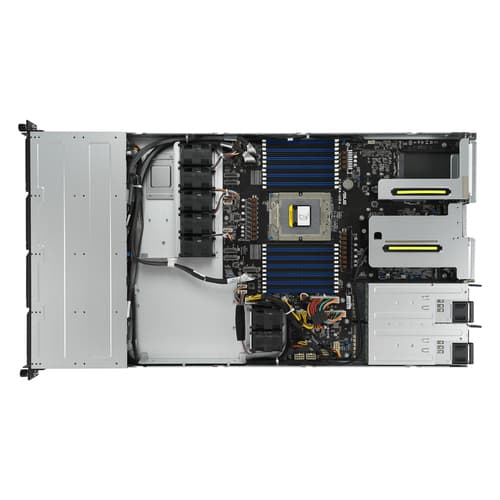

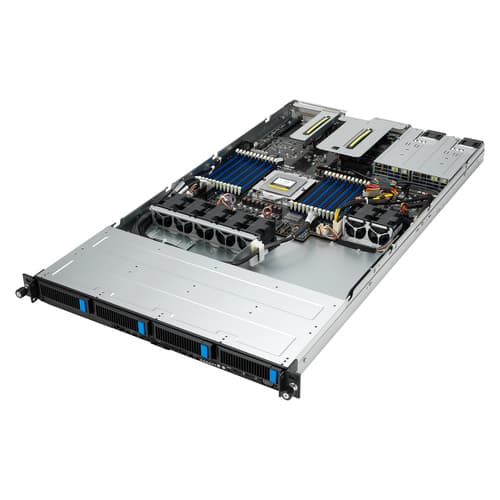

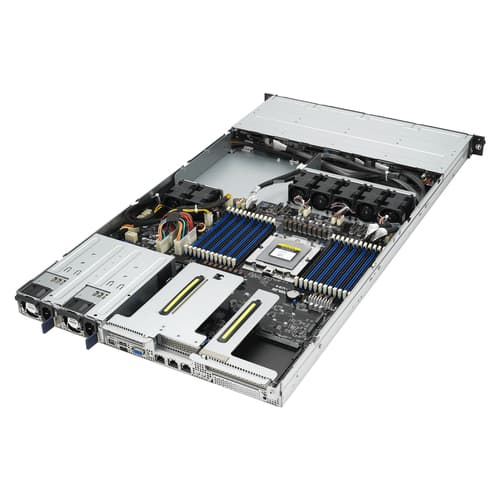

RS500A-E12-RS4U/1G/800W/4NVMe/OCP
- Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Powerful performance:Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads:Up to two single-slot GPUs
- Scale-up storage and expansion design:Up to 4 all-flash NVMe drives on the front panel and 3 PCIe 5.0 slots for higher bandwidth and system upgrade
Overview
ASUS RS500A-E12-RS4U, Socket SP5, AMD, AMD, AMD EPYC 9004, DDR5-SDRAM, 6 TB
Specifications
Processor
- Processor family
- AMD
- Built-in processor
- No
- Compatible processor series
- AMD EPYC 9004
- Processor socket
- Socket SP5
- Number of processors supported
- 1
- Processor manufacturer
- AMD
Memory
- Number of DIMM slots
- 24
- Supported memory types
- DDR5-SDRAM
- Maximum internal memory
- 6 TB TB
- Supported RDIMM clock speeds
- 4000,3600,4400,4800 MHz MHz
Storage
- Number of storage drives supported
- 6
- Number of 3.5" bays
- 4
- Storage drive sizes supported
- 3.5,M.2 "
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- Serial ATA, Serial Attached SCSI (SAS)
- SSD form factor
- M.2
- Hot-swap HDD bays
- Yes
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Intel® I350-AM2
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 2.0 ports quantity
- 0
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- IPMI LAN (RJ-45) port
- Yes
Features
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Expansion slots
- PCI Express x16 slots
- 3
- Number of M.2 (M) slots
- 2
- PCI Express x8 slots
- 1
Weight & dimensions
- Weight
- 13.2 kg kg
- Depth
- 449 mm mm
- Width
- 842.5 mm mm
- Height
- 43.9 mm mm
Packaging data
- Package weight
- 18.1 kg kg
Design
- Chassis type
- Rack (1U)
- LED indicators
- Yes
- Product colour
- Black, Silver
- On/off switch
- Yes
Power
- Number of main power supplies
- 2
- 80 PLUS certification
- 80 PLUS Titanium
- Power supply
- 800 W W
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
- Storage temperature (T-T)
- -40 - 70 °C °C
