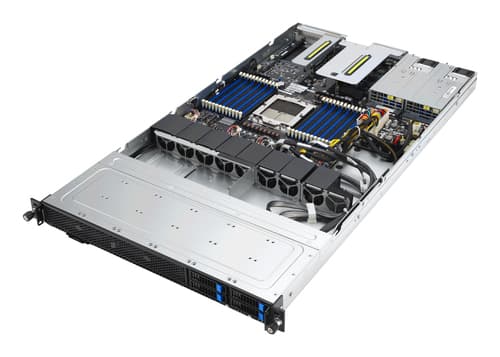

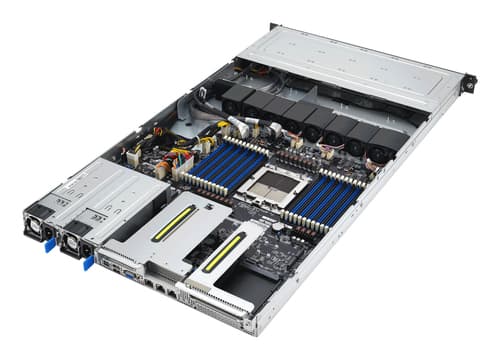

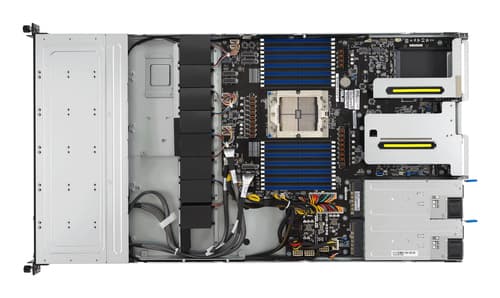

RS501A-E12-RS4U/1G/1.6KW/4NVMe/
- Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200MHz DDR5 and support for a maximum TDP of up to 450 watts.
- Scale-up storage and expansion design: Up to four drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrades
- Flexible networking module design: Up to four all-flash 2.5” NVMe drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrades.
- Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP.
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT-management software and hardware-level Root-of-Trust solution.
- Read for AI and HPC workloads: Up to two single-slot GPUs.
Overview
ASUS RS501A-E12-RS4U, LGA 6096, AMD, AMD EPYC, AMD EPYC 9004, DDR5-SDRAM, 3 TB
Specifications
Processor
- Number of processors supported
- 1
- Processor manufacturer
- AMD
- Processor family
- AMD EPYC
- Compatible processor series
- AMD EPYC 9004
- Processor socket
- LGA 6096
- Built-in processor
- No
Memory
- Number of DIMM slots
- 24
- Supported memory types
- DDR5-SDRAM
- Maximum internal memory
- 3 TB TB
- Supported RDIMM clock speeds
- 4800,6400,5600 MHz MHz
Storage
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- Serial ATA, Serial Attached SCSI (SAS)
- SSD form factor
- M.2
- Number of storage drives supported
- 6
- Hot-swap HDD bays
- Yes
- Number of 2.5" bays
- 4
- Storage drive sizes supported
- M.2,2.5 "
Network
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- LAN controller
- Intel® I350-AM2
Power
- Power supply
- 1600 W W
- Redundant power supply (RPS) support
- Yes
- Number of redundant power supplies supported
- 2
- 80 PLUS certification
- 80 PLUS Titanium
Weight & dimensions
- Weight
- 14.2 kg kg
- Width
- 842.5 mm mm
- Depth
- 449 mm mm
- Height
- 43.9 mm mm
Packaging data
- Package weight
- 19.2 kg kg
Ports & interfaces
- USB 2.0 ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 3
- Number of M.2 (M) slots
- 2
Design
- Chassis type
- Rack (1U)
- Product colour
- Black, Silver
- LED indicators
- Yes
- Certification
- BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
