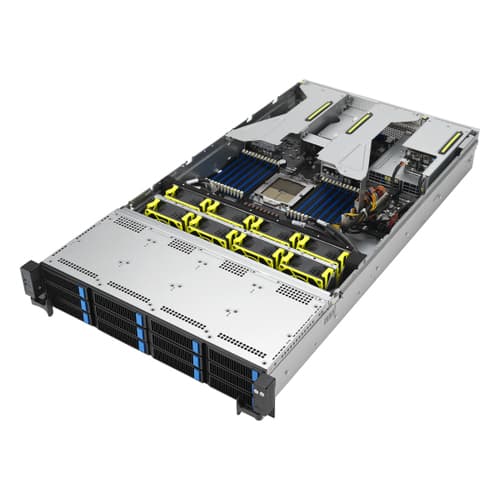

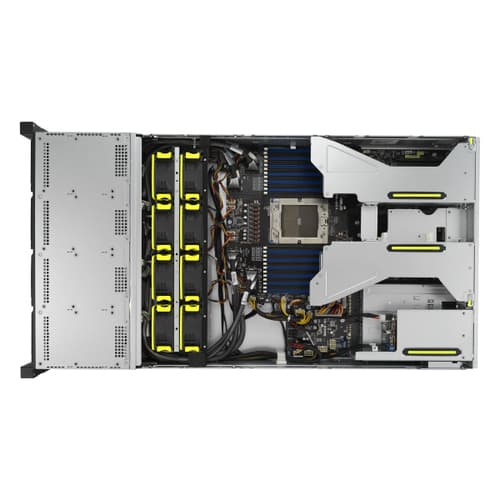

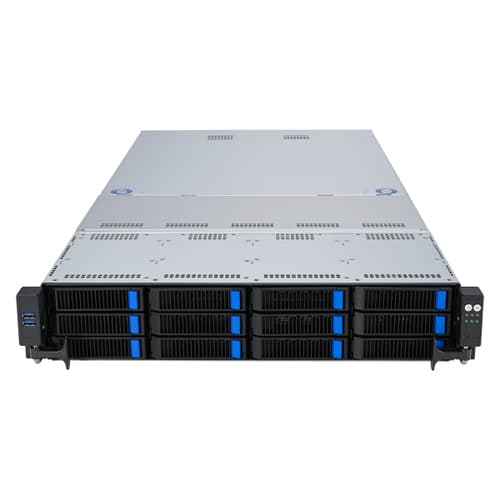

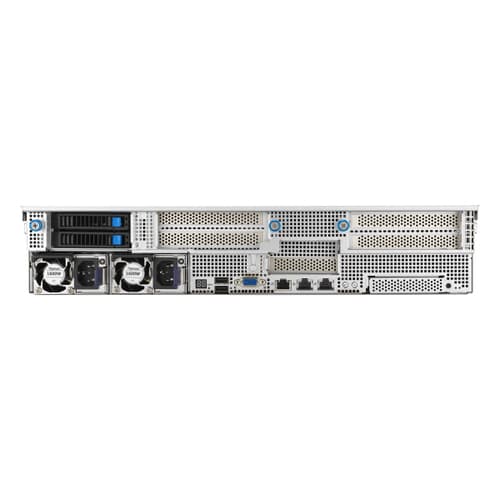

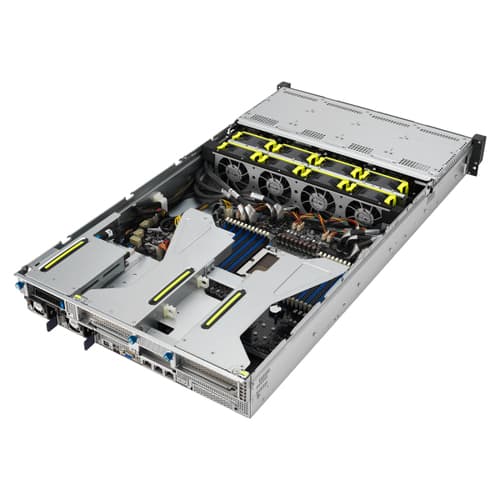

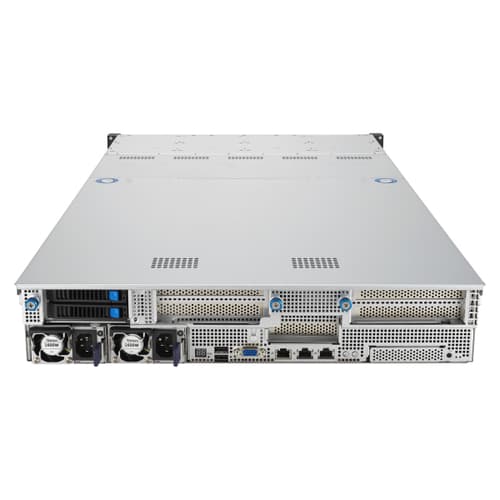

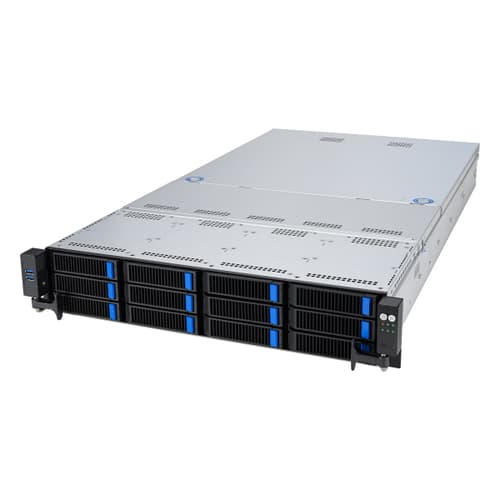

RS520A-E12-RS12U/1G/1.6kW/12NVMe/FAN/RH/
- Powerful performance:Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Scale-up storage and expansion design:Up to 12 all-flash NVMe drives on the front panel, two drives in the real panel, and 5 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
- Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads:Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx
Overview
ASUS RS520A-E12-RS12U, Socket SP5, AMD, AMD, AMD EPYC, DDR5-SDRAM, 6 TB
Specifications
Storage
- Number of storage drives supported
- 14
- Hot-swap HDD bays
- Yes
- Number of 3.5" bays
- 12
- Storage drive sizes supported
- 2.5,3.5" "
- Number of 2.5" bays
- 2
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, Serial ATA, Serial Attached SCSI (SAS)
Weight & dimensions
- Depth
- 840 mm mm
- Height
- 88.1 mm mm
- Width
- 449 mm mm
- Weight
- 17.9 kg kg
Processor
- Built-in processor
- No
- Processor socket
- Socket SP5
- Processor manufacturer
- AMD
- Processor family
- AMD
- Compatible processor series
- AMD EPYC
- Number of processors supported
- 1
- AMD Opteron series
- 9000
Network
- LAN controller
- Intel® I350-AM2
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
Expansion slots
- PCI Express x16 slots
- 2
- PCI Express x8 slots
- 1
- PCI Express slots version
- 5.0
Power
- Number of redundant power supplies supported
- 2
- Power supply
- 1600 W W
- 80 PLUS certification
- 80 PLUS Titanium
- Redundant power supply (RPS) support
- Yes
Memory
- Number of DIMM slots
- 24
- Supported memory types
- DDR5-SDRAM
- Maximum internal memory
- 6 TB TB
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 3
- VGA (D-Sub) ports quantity
- 2
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- IPMI LAN (RJ-45) port
- Yes
Features
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
- Operating relative humidity (H-H)
- 20 - 90% %
Design
- Product colour
- Black, Steel
- Chassis type
- Rack (2U)
- LED indicators
- Yes
Packaging data
- Bundled software
- ASUS Control Center ASUS ASMB11-iKVM
