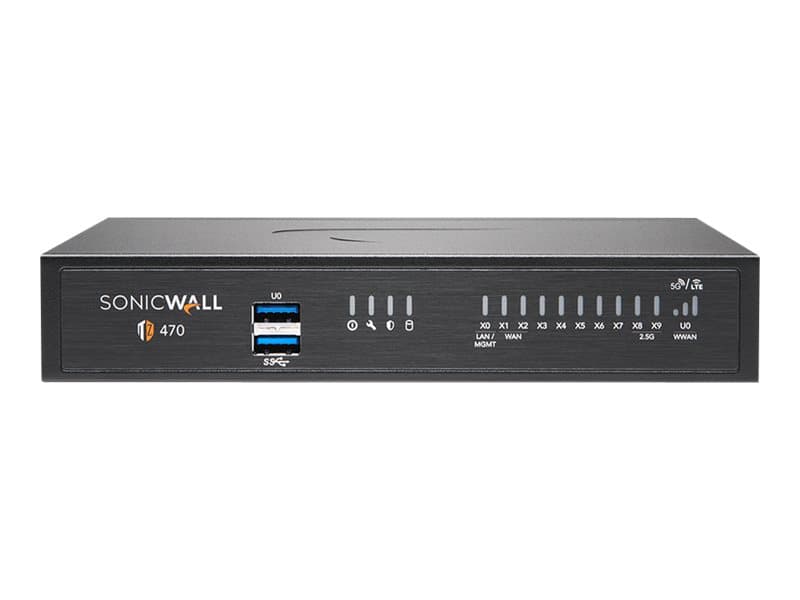

SonicWall TZ470
Advanced Edition
security appliance
with 1 year TotalSecure
1GbE, 2.5GbE
desktop
Weight: 1.44 KG
- Get lightning-fast performance with security processors optimized for speed
- Gain a deeper level of threat prevention through Real-Time Deep Memory Inspection
- Leverage shared threat intelligence for continuously updated security
- Leverage multi-core, parallel-processing hardware architecture
- Take advantage of single-pass, stream-based inspection
- Inspect simultaneous network streams using deep packet inspection
- Get your firewall up and running quickly with Zero-Touch Deployment
- Grow your distributed network while lowering costs with Secure SD-WAN
- Power your PoE-enabled devices with integrated PoE/PoE+ support
- Gain insight into and control over application usage across the network
- Connect from virtually any operating system
- Detect and remove hidden threats over the VPN connection
Overview
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats. The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity. With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with Real-Time Deep Memory Inspection (RTDMI). Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management - or the next threat.
Main Specifications
- Product Description
- SonicWall TZ470 - Advanced Edition - security appliance - with 1 year TotalSecure
- Device Type
- Security appliance
- Bundled Services
- 1 year TotalSecure
- Form Factor
- Desktop
- Data Link Protocol
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- Performance
- Firewall throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.5 Gbps ¦ Application throughput: 2 Gbps ¦ IPS throughput: 2 Gbps ¦ Anti-malware throughput: 1.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 600 Mbps ¦ VPN throughput (IPSec): 1.5 Gbps ¦ Connection rate: 12000 connections per second
- Capacity
- Virtual interfaces (VLANs): 128 ¦ SSL VPN licences: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 150 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 1000000 ¦ DPI connections: 250000 ¦ DPI SSL connections: 35000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 19 cm x 13.5 cm x 3.5 cm
- Weight
- 830 g
- SSL/TLS decryption and inspection
- Leverage decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1. 3 support.
Product Features
'Single-pane-of-glass' management and reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.
SD-WAN and Zero-Touch Deployment capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.
Deep memory inspection
Block even the advanced attacks with Real-Time Deep Memory Inspection (RTDMI) and Capture Advanced Threat Protection (ATP).
Superior performance and features
Get advanced threat protection at lightning speeds without compromising on performance. The TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.
What's in the box
SonicWall TZ470 Advanced Edition, External power adapter
Specifications
Networking
- Form Factor
- Desktop
- Connectivity Technology
- Wired
- Network / Transport Protocol
- TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
- Encryption Algorithm
- DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
- Data Link Protocol
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- Authentication Method
- RADIUS, LDAP, XAUTH authentication
- Performance
- Firewall throughput: 3.5 Gbps, Threat prevention throughput: 1.5 Gbps, Application throughput: 2 Gbps, IPS throughput: 2 Gbps, Anti-malware throughput: 1.5 Gbps, TLS/SSL inspection and decryption throughput: 600 Mbps, VPN throughput (IPSec): 1.5 Gbps, Connection rate: 12000 connections per second
- Capacity
- Virtual interfaces (VLANs): 128, SSL VPN licences: 2 (maximum 150), VPN tunnels (site-to-site): 150, IPSec VPN clients: 5 (maximum 200), SPI connections: 1000000, DPI connections: 250000, DPI SSL connections: 35000, Single Sign-On (SSO) users: 2500, Manageable access points: 32
- Remote Management Protocol
- SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH
- Status Indicators
- Link/activity, power, secure, SSD activity, test mode
- Features
- SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention
General
- Width
- 19 cm
- Height
- 3.5 cm
- Depth
- 13.5 cm
- Weight
- 830 g
- Device Type
- Security appliance
- Bundled Services
- 1 year TotalSecure
Connections & Expansion
- Interfaces
- 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x 2.5Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 1 x console - RJ-45
Miscellaneous
- MTBF
- 46 years
- Compliant Standards
- FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, CoC
Power
- Power Provided
- 36 Watt
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 19.95 Watt
Software / System Requirements
- OS Provided
- SonicOS 7.0
- Software Included
- SonicWall Advanced Protection Service Suite (1 year)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Dimensions & Weight (Shipping)
- Shipping Weight
- 1.43 kg
IP Telephony
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
