This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

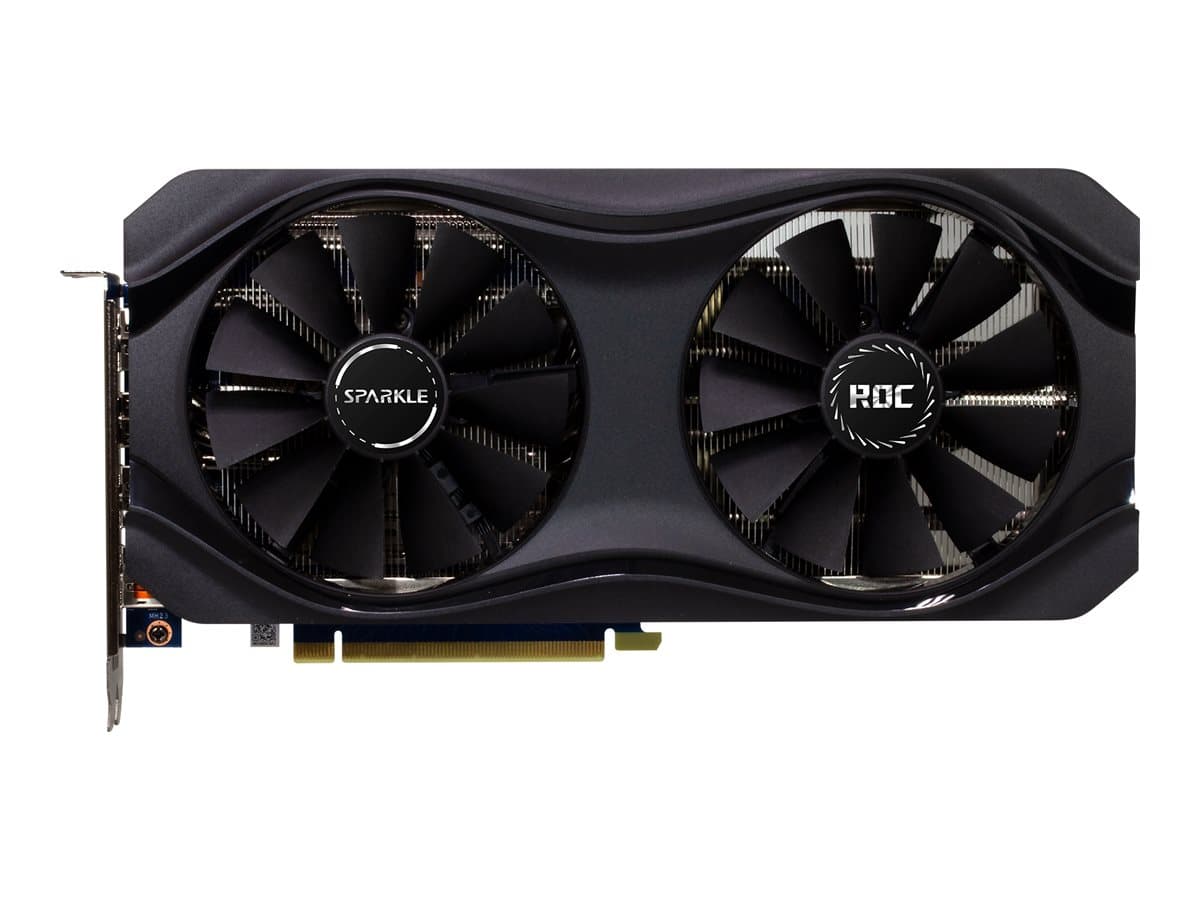

SPARKLE Intel Arc A770 ROC
OC Edition
graphics card
Intel Arc A770
16 GB GDDR6
PCIe 4.0 x16
3 x DisplayPort, HDMI
Weight: 1.22 KG
- 16 GB GDDR6 SDRAM provides memory capacity
- Supports resolutions up to 7680 x 4320 for visuals
- Features three DisplayPort outputs and one HDMI port for flexible connectivity
- Incorporates technologies like Intel Deep Link and ray tracing
- Delivers performance with dual 100mm cooling fans
Overview
The SPARKLE Intel Arc A770 ROC Open Edition graphics card powers a new era in gaming and creative performance. With a potent 16 GB of GDDR6 SDRAM and a 256-bit bus width, this card delivers bandwidth of 560 GBps and memory speeds of 17.5 Gbps. This architecture supports a maximum external resolution of 7680 x 4320, ensuring visuals for even the most demanding applications. Connect with three DisplayPorts and one HDMI port, all featuring version 2.0 support, to unlock the potential of ultra-high-definition displays. Equipped with Intel Deep Link Technology and advanced video adapter features, including variable rate shading and ray tracing capabilities, the A770 ROC is engineered for gaming and content creation. Enjoy enhanced performance with 32 Ray Tracing Units and 512 Intel XMX Engines. The cooling system includes dual 100mm double-ball bearing fans to maintain performance during intense gaming sessions. This graphics card supports modern APIs such as OpenGL 4.6 and DirectX 12, making it a versatile option for users seeking graphics rendering.
Specifications
Miscellaneous
- Depth
- 13.1 cm
- Power Consumption Operational
- 225 Watt
- Height
- 5.1 cm
- Width
- 28.1 cm
- Weight
- 880 g
General
- Device Type
- Graphics card
- Boost Clock
- 2300 MHz
- Max Resolution
- 7680 x 4320 at 60 Hz
- Max Resolution Details
- DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 4096 x 2160 at 60 Hz
- Bus Type
- PCI Express 4.0 x16
- Graphics Engine
- Intel Arc A770
- Interfaces Details
- HDMI, 3 x DisplayPort (version 2.0)
- API Supported
- DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Features
- 32 Xe Cores, 32 Ray Tracing Units, 512 Intel XMX Engines, 512 Xe Vector Engines, metal backplate, variable rate shading (VRS), AV1 decode support, AV1 encode support, VP9 support, Intel Deep Link Technology, Ray Tracing, 2 x 100mm double-ball bearing fans
Memory
- Size
- 16 GB
- Bus Width
- 256-bit
- Technology
- GDDR6 SDRAM
- Memory Speed
- 17.5 Gbps
- Bandwidth
- 560 GBps
System requirements
- Required Power Supply
- 650 W
- Additional Requirements
- 2 x 8 pin PCI Express power connector
- OS Required
- Windows 11, Windows 10, Ubuntu 22.04
