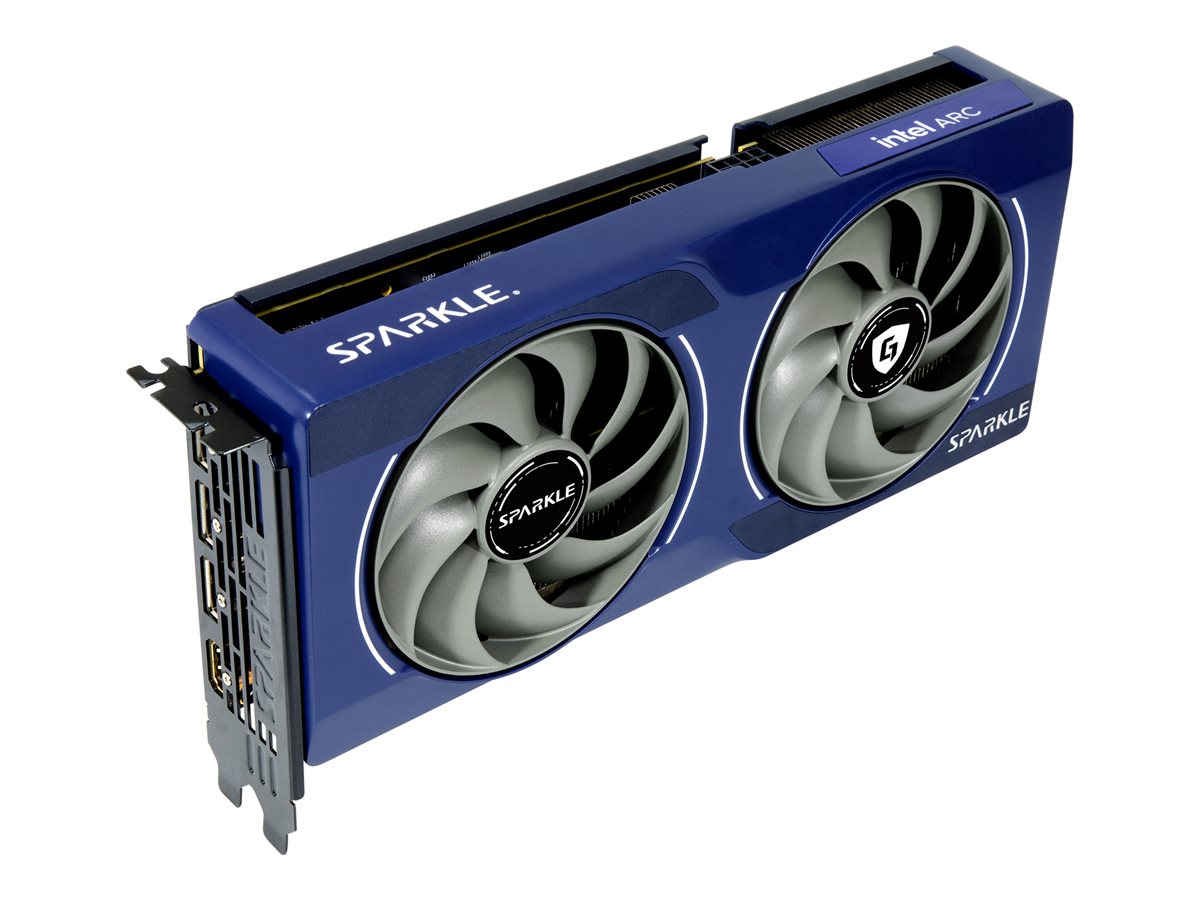

SPARKLE Intel Arc B580 GUARDIAN
Graphics card
Arc B580
12 GB GDDR6
PCIe 4.0 x8
3 x DisplayPort, HDMI
Weight: 1.22 KG
- NPU performance of 233 TOPS
- Supports maximum resolution of 7680 x 4320
- Equipped with 12 GB GDDR6 VRAM for demanding applications
- Multi-monitor support for expanded workspace and gaming experiences
- Ray tracing capabilities for realistic graphics
Overview
The SPARKLE Intel Arc B580 GUARDIAN graphics card brings a powerful gaming experience with performance features. Equipped with 12 GB of GDDR6 SDRAM and a 192-bit bus width, this card delivers memory bandwidth of 456 GBps, ensuring smooth gameplay and efficient multitasking. With a NPU performance of up to 233 TOPS and a boost clock speed of 2670 MHz, it is engineered for computational tasks and high-resolution gaming. The card supports a maximum external resolution of 7680 x 4320, allowing for stunning visual clarity and enhanced gaming immersion across multiple monitors, with support for up to 4 displays simultaneously. The SPARKLE B580 GUARDIAN is compatible with various APIs including DirectX 12 and Vulkan 1.3, making it versatile for a range of applications.
Main Specifications
- API Supported
- DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Dimensions (WxDxH)
- 4.4 cm x 24.2 cm x 10.5 cm
- Product Description
- SPARKLE Intel Arc B580 GUARDIAN - graphics card - Arc B580 - 12 GB
- Device Type
- Graphics card
- Bus Type
- PCI Express 4.0 x8
- Graphics Engine
- Intel Arc B580 - up to 233 TOPS
- Memory
- 12 GB GDDR6
- Boost Clock
- 2670 MHz
- Memory Interface
- 192-bit
- Max Resolution
- 7680 x 4320
- Max Resolution Details
- DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
- Max Monitors Supported
- 4
- Interfaces Details
- HDMI ¦ 3 x DisplayPort
Associated Documents
Product Features
Memory performance
This graphics card utilizes GDDR6 SDRAM technology with a total installed size of 12 GB, paired with a 192-bit bus width for high-speed data processing.
Connectivity options
Equipped with three DisplayPort and one HDMI output, the card provides connectivity options supporting various display setups.
Thermal management
Featuring a 2. 2-slot Fan Cooler and a dual AXL fan design, the SPARKLE B580 GUARDIAN ensures cooling performance during intense usage.
Graphics capabilities
The presence of 20 Xe Cores and 20 Ray Tracing Units enables lifelike visuals and dynamic rendering techniques, enhancing the visual quality of games and applications.
API support
API support
Specifications
General
- Max Monitors Supported
- 4
- Device Type
- Graphics card
- Interfaces Details
- HDMI 3 x DisplayPort
- Max Resolution
- 7680 x 4320 at 120 Hz
- Bus Type
- PCI Express 4.0 x8
- Boost Clock
- 2670 MHz
- API Supported
- DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Graphics Engine
- Intel Arc B580
- Max Resolution Details
- DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
- Features
- Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 2 x AXL fans, 2.2-slot Fan Cooler
Memory
- Size
- 12 GB
- Bus Width
- 192-bit
- Technology
- GDDR6 SDRAM
- Bandwidth
- 456 GBps
Miscellaneous
- Width
- 4.4 cm
- Depth
- 24.2 cm
- Height
- 10.5 cm
- Power Consumption Operational
- 190 Watt
- Weight
- 796 g
System requirements
- Required Power Supply
- 600 W
- Additional Requirements
- 8 pin PCI Express power connector
- OS Required
- Windows 11, Windows 10
Performance
- NPU Performance Up To (TOPS)
- 233 TOPS
