This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

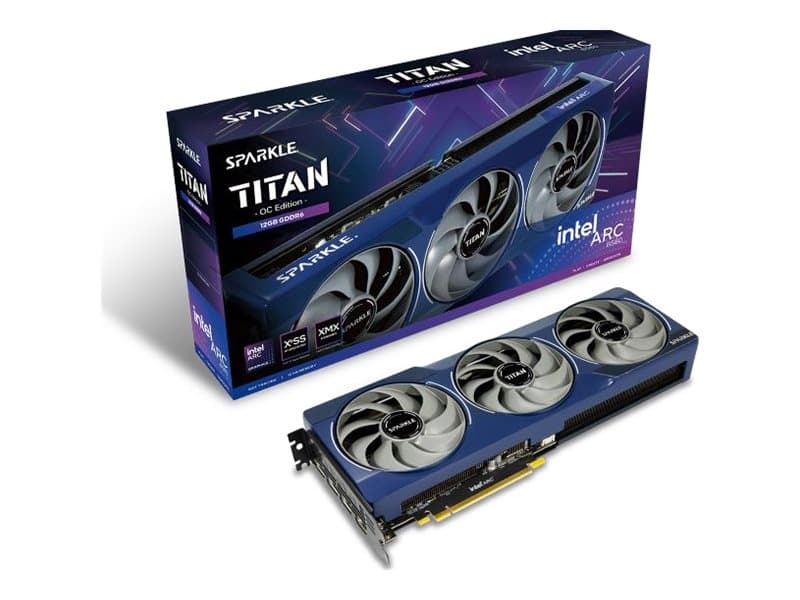

SPARKLE Intel Arc B580 TITAN OC
Graphics card
Arc B580
12 GB GDDR6
PCIe 4.0 x8
3 x DisplayPort, HDMI
Weight: 1.64 KG
- Equipped with a powerful Intel Arc B580 graphics processor
- High performance with up to 233 TOPS NPU performance
- Support for multiple APIs including DirectX 12 Ultimate and Vulkan 1.3
- Includes cooling features for optimal thermal management
- VGA holder included for added convenience
Overview
The SPARKLE Intel Arc B580 TITAN OC provides performance and versatility for gamers and creators alike. Featuring graphics capabilities, this card supports a maximum external resolution of 7680 x 4320 at 120 Hz through its HDMI and DisplayPort interfaces. With 12 GB of GDDR6 SDRAM and a 192-bit bus width, bandwidth reaches 456 GBps, facilitating smooth gameplay.
Main Specifications
- Product Description
- SPARKLE Intel Arc B580 TITAN OC - graphics card - Arc B580 - 12 GB
- Device Type
- Graphics card
- Bus Type
- PCI Express 4.0 x8
- Graphics Engine
- Intel Arc B580 - up to 233 TOPS
- Memory
- 12 GB GDDR6
- Boost Clock
- 2740 MHz
- Memory Interface
- 192-bit
- Max Resolution
- 7680 x 4320
- Max Resolution Details
- DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
- Interfaces Details
- HDMI ¦ 3 x DisplayPort
- API Supported
- DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Dimensions (WxDxH)
- 4.4 cm x 31.5 cm x 11.7 cm
Associated Documents
Product Features
High-performance graphics processing
This graphics card is powered by the Intel Arc B580 processor, which supports performance metrics with the ability to execute up to 233 TOPS, making it ideal for demanding applications.
Enhanced cooling technology
Equipped with TORN cooling 2. 0 and three AXL fans, this graphics card ensures heat dissipation, maintaining performance during intense gaming sessions.
Impressive memory capability
With 12 GB GDDR6 SDRAM, a 192-bit bus, and a bandwidth of 456 GBps, this card efficiently handles large data transfers, enhancing rendering speeds and graphics performance.
Support for high-resolution displays
Achieve visuals with support for resolutions up to 7680 x 4320, enabling a captivating gaming and multimedia experience on compatible displays.
Versatile connectivity options
This graphics card features three DisplayPort and one HDMI output, providing flexibility to connect multiple displays while ensuring compatibility with various video configurations.
What's in the box
SPARKLE Intel Arc B580 TITAN OC, VGA Holder
Specifications
General
- Device Type
- Graphics card
- Interfaces Details
- HDMI 3 x DisplayPort
- Max Resolution
- 7680 x 4320 at 120 Hz
- Bus Type
- PCI Express 4.0 x8
- API Supported
- DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Graphics Engine
- Intel Arc B580
- Boost Clock
- 2740 MHz
- Max Resolution Details
- DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz
- Features
- Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 3 x AXL fans, 2.2-slot Fan Cooler
Memory
- Size
- 12 GB
- Bus Width
- 192-bit
- Technology
- GDDR6 SDRAM
- Bandwidth
- 456 GBps
Miscellaneous
- Depth
- 31.5 cm
- Power Consumption Operational
- 200 Watt
- Width
- 4.4 cm
- Height
- 11.7 cm
- Weight
- 954 g
- Included Accessories
- VGA Holder
System requirements
- Required Power Supply
- 600 W
- Additional Requirements
- 8 pin PCI Express power connector
- OS Required
- Windows 11, Windows 10
Performance
- AI Datatype Support on NPU
- INT8
- NPU Performance Up To (TOPS)
- 233 TOPS
