Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

True 4K HDMI/USB HDBT3.0-Lite

Manuf P/N: VE1833-AT-E

ATEN True 4K HDMI/USB HDBT3.0-Lite. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 5 m. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Power consumption (TX): 6.01 W, Power consumption (RX): 7.09 W. Width: 146.9 mm, Depth: 169.4 mm, Height: 30 mm. Package width: 95 mm, Package depth: 265 mm, Package height: 220 mm
  • Supports bi-directional PoH and HDMI audio embedding / de-embedding functions
  • Extends uncompressed True 4K HDMI signals up to 40 m over a single Cat 6a cable with zero
  • Compliant with HDBaseT 3.0 standards – transmits high-quality video, full range IR, bi-directional RS-232, independent stereo audio and USB 2.0 signals channel bypass
  • Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported

ATEN True 4K HDMI/USB HDBT3.0-Lite, 4096 x 2160 pixels, AV transmitter & receiver, 5 m, Wired, 3D, HDCP

Ports & interfaces

Ethernet LAN
Yes
DC-in jack
Yes
Connectivity technology
Wired
Number of HDMI outputs
1
USB connector type
USB Type-A, USB Type-B
Remote (IR) output
1
RJ-45 output ports
1
3.5 mm (1/8-inch) out
Yes
HDMI in
1
USB ports quantity
3
3.5 mm (1/8-inch) in
Yes

Features

Maximum resolution
4096 x 2160 pixels pixels
Type
AV transmitter & receiver
High Dynamic Range (HDR) supported
Yes
Maximum refresh rate
60 Hz Hz
Bandwidth
18 Gbit/s Gbit/s
HDCP
Yes
3D
Yes
Impedance
100 Ω Ω
Consumer Electronics Control (CEC) support
Yes
HDCP version
2.2/2.3
Material
Metal
Product colour
Black
LED indicators
Yes
Firmware upgradeable
Yes
Maximum transfer distance
5 m m

Weight & dimensions

Width
146.9 mm mm
Depth
169.4 mm mm
Weight
640 g g
Height
30 mm mm

Power

Power source type
DC
Power consumption (TX)
6.01 W W
Power consumption (RX)
7.09 W W

Operational conditions

Operating temperature (T-T)
0 - 40 °C °C
Operating relative humidity (H-H)
0 - 80% %
Storage temperature (T-T)
-20 - 60 °C °C

Packaging data

Package width
95 mm mm
Package depth
265 mm mm
Package height
220 mm mm
Package weight
1.22 kg kg

Technical details

Country of origin
Taiwan

Logistics data

Master (outer) case length
500 mm mm
Master (outer) case width
232 mm mm
Master (outer) case height
283 mm mm
Master (outer) case gross weight
6.69 kg kg

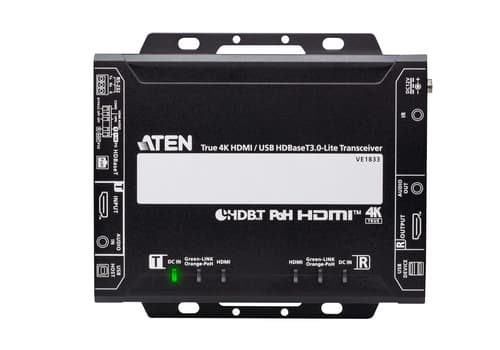

True 4K HDMI/USB HDBT3.0-Lite — image 1
