This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

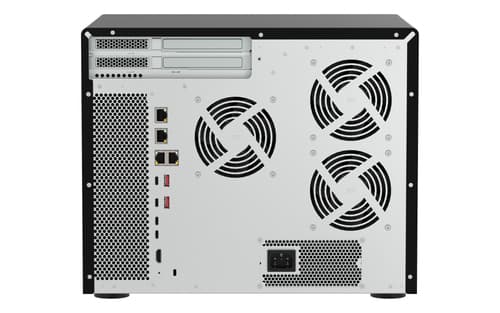

16-Bay QuTS hero NAS 12 x 3.5" SATA+4
- 12+4 hybrid storage: Equipped with 12 SATA HDD bays and 4 U.2 NVMe / SATA SSD slots, balancing massive capacity with high-speed performance.
- Built-in Intel® Arc™ Graphics: Delivers outstanding graphics processing and compute performance to accelerate AI inference, media transcoding, and multitasking efficiency.
- Up to 36 TOPS AI performance: Integrated CPU, GPU, and NPU accelerate AI image applications, enabling faster facial and object recognition.
- Standard 2.5/10GbE, upgradeable to 100GbE: Expand via PCIe cards to 25/100GbE, ideal for virtualization, intensive file access, media transfer, and high-speed backup/restore tasks.
- Petabyte-scale expandability: Connect multiple QNAP JBODs to flexibly scale with business growth and store massive datasets or backups.
- Thunderbolt™ 5 expansion support: Optional Thunderbolt™ 5 PCIe card boosts workflows for professional multimedia editing.
Similar Products
Overview
QNAP TVS-AIH1688ATX-U9-48G, NAS, Tower, 48 GB, DDR5, 0 TB, QuTS hero
Specifications
Storage
- Storage drives installed
- No
- Total installed storage capacity
- 0 TB TB
- Number of storage drives installed
- 0
- Number of storage drives supported
- 16
- Installed storage drive type
- No
- Supported storage drive types
- HDD & SSD
- RAID support
- Yes
- Supported storage drive interfaces
- M.2, Serial ATA II, Serial ATA III
- Storage drive sizes supported
- 2.5,3.5,M.2 "
- Total installed system drives capacity
- 5 GB GB
- RAID levels
- 0, 1, 5, 6, 10, 50, 60, JBOD
- Online RAID migration
- Yes
- Online RAID expansion
- Yes
- Supported file systems
- FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Auto-rebuild
- Yes
- Bad block scan
- Yes
- Disk roaming
- Yes
- RAID rebuild
- Yes
- Hot-swap drive bays
- Yes
Processor
- Processor manufacturer
- Intel
- Processor boost frequency
- 5.6 GHz GHz
- Processor cores
- 24
- Processor threads
- 24
- On-board graphics card model
- Intel® HD Graphics
Memory
- Internal memory
- 48 GB GB
- Internal memory type
- DDR5
- Memory form factor
- UDIMM
Software
- Operating system installed
- QuTS hero
- Operating system version
- h5.6.0
Power
- Power supply location
- Built-in
- Number of power supply units
- 1
- Power consumption (HDD standby)
- 97.036 W W
- AC input frequency
- 50/60 Hz Hz
- Power supply unit (PSU) capacity
- 750 W W
- Power consumption (typical)
- 130.83 W W
- AC input voltage
- 100 - 240 V V
Weight & dimensions
- Depth
- 319.8 mm mm
- Height
- 294.3 mm mm
- Package width
- 440 mm mm
- Package height
- 493 mm mm
- Width
- 369.9 mm mm
- Weight
- 13.8 kg kg
- Package depth
- 469 mm mm
- Package weight
- 17.2 kg kg
Packaging content
- Package type
- Box
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Storage relative humidity (H-H)
- 5 - 95% %
Other features
- Warranty period
- 5 year(s) year(s)
Network
- Ethernet LAN data rates
- 2500,10000 Mbit/s Mbit/s
- Jumbo frames support
- Yes
- Dynamic DNS (DDNS)
- Yes
- Ethernet LAN
- Yes
- DHCP server
- Yes
- Wake-on-LAN ready
- Yes
Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 4
- USB port
- Yes
Design
- LED indicators
- Yes
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Chassis type
- Tower
- Cooling type
- Active
- Product colour
- Black
Performance
- Type
- NAS
- Device class
- Small & Medium Business
- Backup function
- Yes
- Buzzer
- Yes
