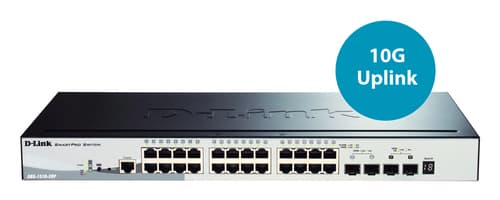

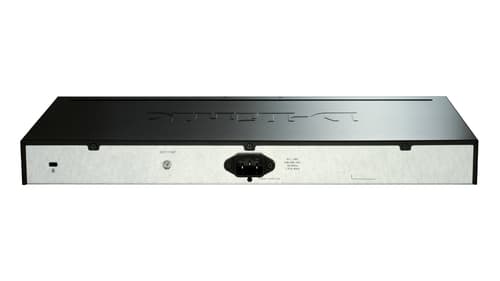

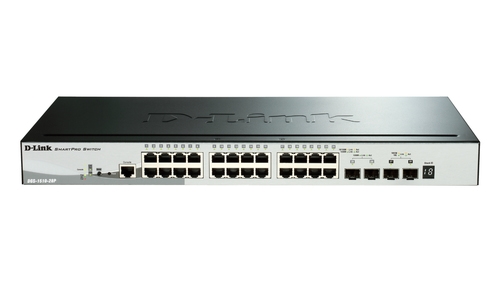

D-Link SmartPro DGS-1510-28P
Weight: 4.08 KG
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- Cat5, Cat5e 10G support
- MAC address table: 16000 entries Switching capacity: 92 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
Similar Products
Overview
The DGS-1510 series is the next generation of smart managed switch. It contains 16, 24 or 48 10/100/1000 Mbps ports plus 2 Gigabit SFP ports and 2 10G SFP+ ports, 24/48 10/100/1000 Mbps ports plus 4 10G SFP+ ports, as well as one 24 10/100/1000 Mbps PoE plus 2 Gigabit SFP ports and 2 10G ports smart managed switch. With it's 10G SFP+ ports, the DGS-1510 series is ideal for deployments in the SME/SMB core with its 10G uplinks connecting with servers equipped with 10G port connectivity. For medium to large scale enterprise deployment, it can serve as a good interconnection between the core switch and edge switch.
Specifications
Weight & dimensions
- Depth
- 250 mm mm
- Height
- 44 mm mm
- Weight
- 2.54 kg kg
- Width
- 440 mm
- Depth
- 250 mm
- Height
- 44 mm
- Weight
- 2.54 kg
- Width
- 440 mm mm
Packaging data
- Package width
- 348 mm mm
- Package depth
- 511 mm mm
- Package height
- 91 mm mm
- Package weight
- 4 kg kg
- Package width
- 348 mm
- Package depth
- 511 mm
- Package height
- 91 mm
- Package weight
- 4 kg
Technical details
- Shipping (inner) case height
- 38.3 cm cm
- Shipping (inner) case width
- 29.6 cm cm
- Shipping (inner) case length
- 52.9 cm cm
- Shipping (inner) case net weight
- 9.27 kg kg
- Products per shipping (inner) case
- 3 pc(s) pc(s)
- Pallet gross weight (air)
- 533.9 kg kg
- Master (outer) cases per pallet (air)
- 40 pc(s) pc(s)
- Products per pallet (air)
- 120 pc(s) pc(s)
- Master (outer) cases per pallet (sea)
- 40 pc(s) pc(s)
- Products per pallet (sea)
- 120 pc(s) pc(s)
- Pallet height (sea)
- 2.05 m m
- Shipping (inner) case gross weight
- 12.9 kg kg
- Shipping (inner) case height
- 38.3 cm
- Shipping (inner) case width
- 29.6 cm
- Shipping (inner) case length
- 52.9 cm
- Shipping (inner) case net weight
- 9.27 kg
- Products per shipping (inner) case
- 3 pc(s)
- Pallet gross weight (air)
- 533.9 kg
- Master (outer) cases per pallet (air)
- 40 pc(s)
- Products per pallet (air)
- 120 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross width
- 120 cm
- Pallet height (air)
- 2.05 m
- Pallet gross weight (sea)
- 533.9 kg
- Master (outer) cases per pallet (sea)
- 40 pc(s)
- Products per pallet (sea)
- 120 pc(s)
- Pallet height (sea)
- 2.05 m
- Shipping (inner) case gross weight
- 12.9 kg
- Pallet gross length
- 110 cm cm
- Pallet gross width
- 120 cm cm
- Pallet height (air)
- 2.05 m m
- Pallet gross weight (sea)
- 533.9 kg kg
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- System event log
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
- SFP+ module slots quantity
- 2
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
- 10G support
- Yes
- Cable types supported
- Cat5, Cat5e
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Head-of-line (HOL) blocking
- Yes
- Auto-negotiation
- Yes
- MAC address auto-learning supported
- Yes
- VLAN support
- Yes
Data transmission
- MAC address table
- 16000 entries
- Switching capacity
- 92 Gbit/s
- Forwarding rate
- 68.45 Mpps
- Store-and-forward
- Yes
- Number of static routes
- 512
- Jumbo frames support
- Yes
- Packet buffer memory
- 1.5 MB
- MAC address table
- 16000 entries entries
- Switching capacity
- 92 Gbit/s Gbit/s
- Forwarding rate
- 68.45 Mpps Mpps
- Packet buffer memory
- 1.5 MB MB
Security
- DHCP features
- DHCP server, DHCP client
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- Static port security
- Yes
- SSH/SSL support
- Yes
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Product colour
- Black
- LED indicators
- Activity, Link, PoE, Power
- Number of fans
- 2 fan(s)
- Safety
- cUL, CB
- Number of fans
- 2 fan(s) fan(s)
Performance
- Physical stacking (units)
- 6
- Virtual stacking (units)
- 32
- Noise level
- 46.4 dB
- Noise level
- 46.4 dB dB
Power
- AC input frequency
- 50 - 60 Hz
- Power consumption (typical)
- 238.7 W
- Voltage Required
- AC 120/230 V (50/60 Hz) V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (typical)
- 238.7 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 193 W
- Total Power over Ethernet (PoE) budget
- 193 W W
Operational conditions
- Operating temperature (T-T)
- -5 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Heat dissipation
- 813.967 BTU/h
- Operating relative humidity (H-H)
- 0 - 95% %
- Operating temperature (T-T)
- -5 - 50 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Storage relative humidity (H-H)
- 0 - 95% %
- Heat dissipation
- 813.967 BTU/h BTU/h
Packaging content
- Manual
- Yes
Certificates
- Certification
- CE, FCC, C-Tick, VCCI, BSMI, CCC
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- Authentication Method
- RADIUS
- Routing Protocol
- Static IP routing
- Power Over Ethernet (PoE)
- PoE+
- Device Type
- Switch - 28 ports - L3 - Managed - stackable
- Status Indicators
- Port transmission speed, power, PoE, link/activity, fan
- Remote Management Protocol
- SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Encryption Algorithm
- SSL, TLS, PEAP, TTLS
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+
- Enclosure Type
- Desktop, rack-mountable 1U
- Performance
- Switching capacity: 92 Gbps Forwarding performance: 68.45 Mpps Stacking bandwidth: 20 Gbps
- Capacity
- ARP entries: 256 IPv6 routes: 32 IPv4 routes: 64
- Features
- Flow control, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, RADIUS support, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, LACP, Energy Efficient Ethernet, Loopback
