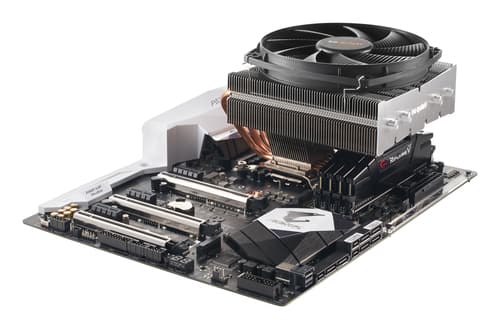

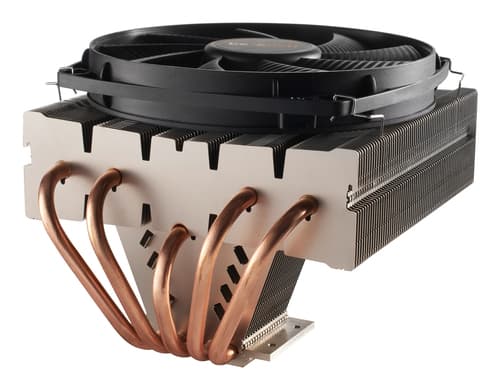

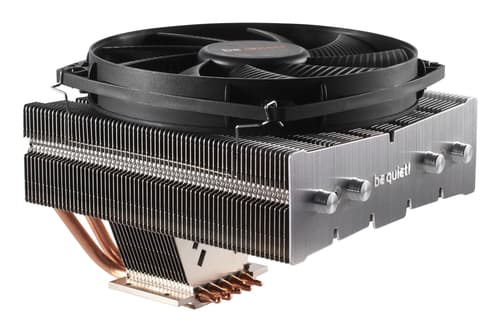

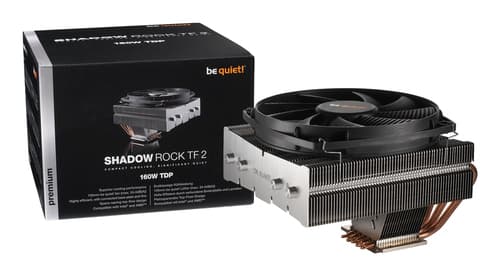

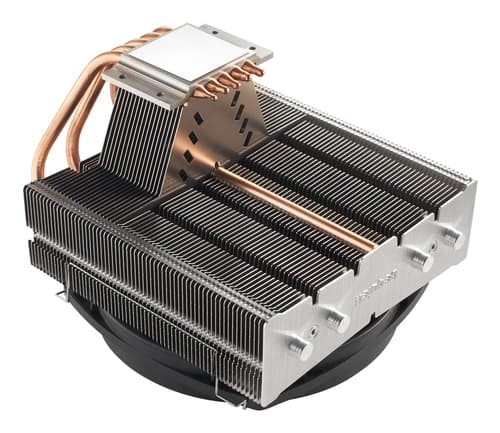

51. BK003 SHADOW ROCK TF2 HEATSINK
- Space-saving top-flow construction
- Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
- Direct connection of baseplate to cooling fins for fast heat transfer
- Very high cooling capacity of 160W TDP
- Compatibility with Intel® and AMDTM sockets
- Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
- 5 high-performance 6mm heat pipes
Similar Products
Overview
be quiet! Shadow Rock TF 2, Cooler, 13.5 cm, 1400 RPM, 2000 RPM, 113.8 m³/h, Black, Copper, Silver
Specifications
Performance
- Airflow
- 113.8 m³/h m³/h
- Maximum air pressure
- 2.1 mmH2O mmH2O
- Suitable location
- Processor
- Type
- Cooler
- Supported processor sockets
- LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+
- Bearing type
- Rifle bearing
- Fan diameter
- 13.5 cm cm
- Rotational speed (max)
- 2000 RPM RPM
- Rotational speed (min)
- 1400 RPM RPM
- Noise level (low speed)
- 11.9 dB dB
- Maximum airflow
- 67.8 cfm cfm
- Noise level (high speed)
- 24.4 dB dB
- Pulse-width modulation (PWM) support
- Yes
Design
- Product colour
- Black, Copper, Silver
- Fins material
- Aluminium
- Number of heat pipes
- 5
- Fan connector
- 4-pin
- Material
- Aluminium, Copper
- Number of fins
- 57
- Number of fans
- 1 fan(s) fan(s)
- Number of fan blades
- 9
Power
- Rated voltage
- 12 V V
- Rated current
- 0.11 A A
- Power supply
- 1.32 W W
Weight & dimensions
- Width
- 137 mm mm
- Weight
- 680 g g
- Package height
- 130 mm mm
- Package weight
- 1.09 kg kg
- Depth
- 165 mm mm
- Height
- 112 mm mm
- Cable length
- 0.2 m m
- Package width
- 178 mm mm
- Fan dimensions (W x D x H)
- 135 x 135 x 22 mm mm
- Package depth
- 203 mm mm
- Heat pipes diameter
- 6 mm mm
Logistics data
- Harmonized System (HS) code
- 84733080
Packaging content

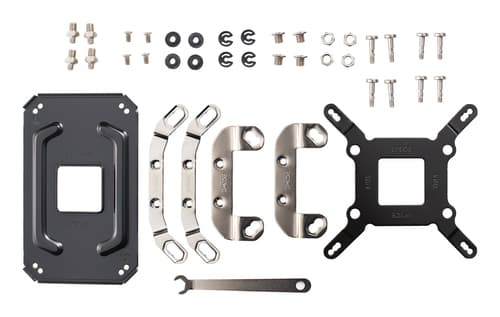

- Screws included
- Yes
- Thermal pad included
- Yes
Other features
- Heatsink dimensions (W x D x H)
- 165 x 137 x 87 mm mm
