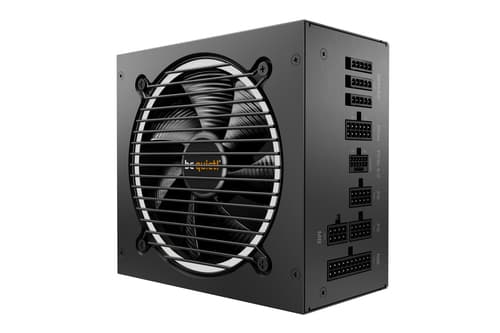

750W PURE POWER 12 M PSU
- 80 PLUS® Gold efficiency (up to 92.6%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Modular cables for maximum build flexibility
- One PCIe 5.1 12V-2x6 600W and 2 PCIe 6+2 connectors for high-end GPUs
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- 10-year manufacturer’s warranty
Similar Products
Overview
be quiet! Pure Power 12 M, 750 W, 100 - 240 V, 820 W, 50 - 60 Hz, 10/5 A, Active
Specifications
Power
- Peak power
- 820 W W
- Power Factor Correction (PFC) type
- Active
- Max output current (+3.3V)
- 20 A A
- Max output current (+12V1)
- 36 A A
- Max output current (+12V2)
- 32 A A
- Efficiency
- 92.6% %
- Combined power (+5V)
- 120 W W
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit
- Total power
- 750 W W
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Combined power (+3.3V)
- 120 W W
- Combined power (-12V)
- 3.6 W W
- Combined power (+5Vsb)
- 15 W W
- Max output current (-12V)
- 0.3 A A
- Power factor
- 0.98
- Input current
- 10/5 A A
- Combined power (+12V)
- 750 W W
- Max output current (+5V)
- 20 A A
- Max output current (+5Vsb)
- 3 A A
- Power Good signal delay range
- 100 - 150 ms ms
Ports & interfaces
- Number of PATA power connectors
- 2
- Peripheral (Molex) power connectors (4-pin)
- 1
- Number of SATA power connectors
- 5
- EPS power connector (4+4 pin)
- Yes
- PCI Express power connectors (6+2 pin)
- 2
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 55 cm cm
- SATA power cable length
- 500,650,800,950 mm mm
- Peripheral (Molex) power cable length
- 550 mm mm
- EPS power connector (8-pin)
- Yes
- ATX power connector (20+4 pin)
- Yes
- PCI Express connector
- Yes
- Cabling type
- Fully-Modular
Logistics data
- Warranty period
- 10 year(s) year(s)
Other features
- Screws included
- Yes
- Noise level (quiet mode, 50%)
- 8.9 dB dB
- Noise level (silent mode, <30%)
- 8.4 dB dB
- Number of screws
- 5
- Cable ties included
- Yes
- Noise level (full-load mode, 100%)
- 24 dB dB
Design
- On/off switch
- Yes
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 12 cm cm
- Number of fans
- 1 fan(s) fan(s)
- Fan location
- Top
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
Weight & dimensions
- Height
- 86 mm mm
- Width
- 160 mm mm
- Depth
- 150 mm mm
Packaging content
- Cables included
- PATA, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates
- RoHS
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- Noise level
- 24 dB dB
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- EPS version
- 2.92
- Mean time between failures (MTBF)
- 100000 h h
Technical details
- Sustainability certificates
- ENERGY STAR, ErP
- Sustainability compliance
- Yes
