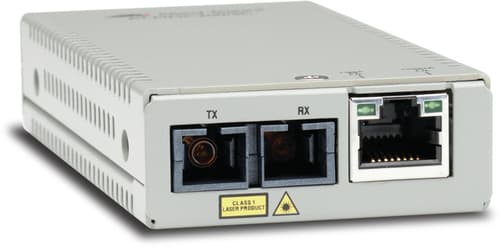

Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm
Manuf P/N: AT-DMC100/SC-30
APAXON#: 8987025
EAN: 767035206622
Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm
- Wired
- 100 Mbit/s 2000 m 1310 nm
- Multi-mode SC 50/125,62.5/125 µm
- Grey
Stock15
Price £82.18
Quantity
|
Similar Products
Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm
Your Choice
—
—
—
—
Stock15
£82.18
Allied Telesis AT DMC1000/ST - Fibre media converter - 1GbE - 1000Base-SX, 1000Base-T - RJ-45 / ST multi-mode - up to 500 m - 850 nm
Better
—
—
—
—
Stock0
£82.18
Allied Telesis AT MMC200/ST - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm - TAA Compliant
Better
—
—
—
—
Stock0
£82.18
Product Summary
Allied Telesis AT-DMC100/SC-30 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Extended Specification
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Data transfer rate
100 Mbit/s
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (1 Gbps)
1488000 pps
VLAN support
Yes
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-22.5 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Rx power (max)
-34 dBmW
Features
Internal
No
LED indicators
Yes
Product colour
Grey
Ports & interfaces
Fiber optic connector
SC
Connectivity technology
Wired
Power
Power consumption (typical)
1.5 W
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Height
21.6 mm
Weight
113 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
