This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

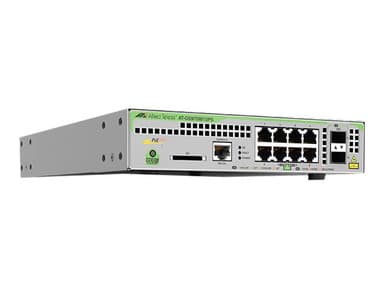

Allied Telesis CentreCOM AT-GS970M/10PS
Switch
L3
Managed
8 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)
desktop
PoE+
Weight: 3.10 KG
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static routing and RIP support Layer 3 environments
Similar Products
Overview
The CentreCOM GS970M series of Layer 3 switches provide high performance with Gigabit to the desktop, the ability to connect and power endpoints, and lower management costs - a high value network edge solution from Allied Telesis.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- SFP module slots quantity
- 2
Network
- Networking standards
- IEEE 802.2, IEEE 802.3
- 10G support
- Yes
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Flow control support
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Number of VLANs
- 2048
Data transmission
- MAC address table
- 16000 entries
- Switching capacity
- 20 Gbit/s
- Latency (10-100 Mbps)
- 7.8 µs
- Latency (1 Gbps)
- 3.4 µs
- Jumbo frames support
- Yes
- Packet buffer memory
- 1.5 MB
Security
- DHCP features
- DHCP client
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Grey
Performance
- Internal memory
- 256 MB
- Flash memory
- 64 MB
- Noise level
- 33 dB
Power
- Voltage Required
- AC 120/230 V
- AC input frequency
- 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 124 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 55 BTU/h
Weight & dimensions
- Width
- 210 mm
- Depth
- 275 mm
- Height
- 42.5 mm
- Weight
- 2.1 kg
Packaging data
- Package width
- 430 mm
- Package depth
- 360 mm
- Package height
- 150 mm
- Package weight
- 3.45 kg
General
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Status Indicators
- Status
- Authentication Method
- RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
- Device Type
- Switch - 10 ports - L3 - Managed
- Performance
- Switching fabric bandwidth: 20 Gbps, Forwarding performance: 14.9 Mpps
- Capacity
- Priority queues: 8
- Routing Protocol
- RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, SNMP 6, SSH 6
- Encryption Algorithm
- DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, RNG, 224-bit SHA-2
- Built-in Devices
- SD card reader, SDHC card reader
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)
- Features
- Flow control, DHCP support, auto-negotiation, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, full duplex mode, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, PVST+, STP Root Guard, UDLD, fanless, LLDP support, LACP, SNMP trap, Energy Efficient Ethernet, MIB, NAC, loop prevention, 802.1x authentication, 1.5MB packet buffer, IP source guard, EPSRing, BPDU, ICMP, CPP, SCP, AMF, DDM, NTP, AAA
