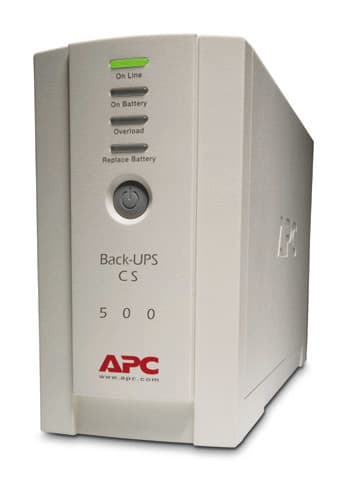

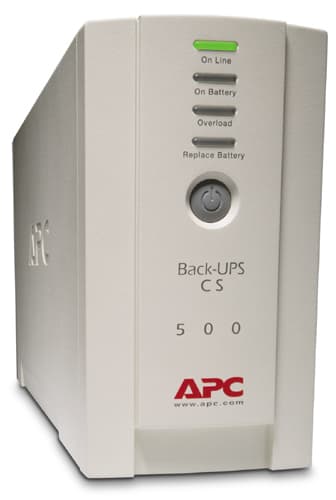

APC Back-UPS 500, 230V
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8

APC Back-UPS 500, 230V

Manuf P/N: BK500EI
APAXON#: 608049
EAN: 0731304016359
APC Back-UPS 500, 230V
Weight: 6.70 KG
  • Standby (Offline)
  • Waveform: Sine
  • Sealed Lead Acid (VRLA) 12 V 7 Ah
  • Tower Beige
Stock113
Price £ 140.95
Price inc. VAT
£ 169.14
Quantity
|

Product Summary

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

Extended Specification

Features
UPS topology
Standby (Offline)
Output power capacity
0.5 kVA kVA
Output power
300 W W
Waveform
Sine
Input operation voltage (min)
160 V V
Input operation voltage (max)
300 V V
Input frequency
50/60 Hz Hz
Output frequency regulation
47 - 63 Hz Hz
Surge energy rating
310 J J
Hold time (min)
6 ms ms
Hold time (max)
10 ms ms
Efficiency
99% %
Noise level
40 dB dB
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Telephone
Power protection features
Overload
Audible alarm(s)
Yes
Audible alarm modes
Low battery alarm, Overload alarm
Ports & interfaces

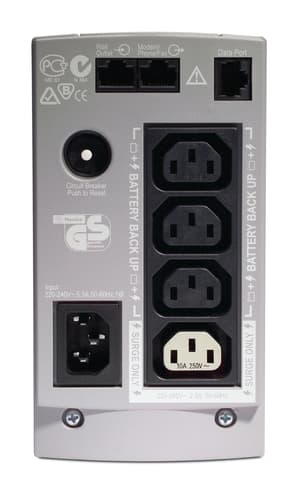

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s) AC outlet(s)
Number of output IEC jumpers
2
USB port
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
7 Ah Ah
Battery capacity
83 VAh VAh
Battery voltage
12 V V

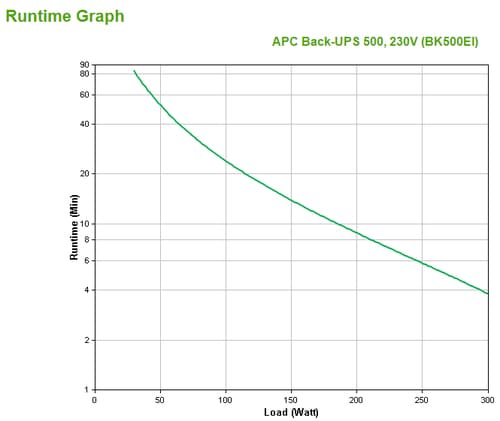

Typical backup time at full load
3.8 min min
Typical backup time at half load
13.8 min min
Battery life (max)
6 year(s) year(s)
Battery recharge time
8 h h
Automatic battery test
Yes
Design
Form factor
Tower
Product colour
Beige
Cable length
1.83 m m
LED indicators
Battery replacement
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-15 - 45 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
0 - 3000 m m
Non-operating altitude
0 - 15000 m m
Packaging data
Package width
241 mm mm
Warranty card
Yes
Software CD
Yes
Bundled software
PowerChute Personal Edition
Package depth
368 mm mm
Package height
178 mm mm
Package weight
7.05 kg kg
Certificates
Compliance certificates
RoHS
Certification
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
Packaging content
Cables included
Phone (RJ-11), USB cable
Quick installation guide
Yes
Sustainability
Sustainability certificates
ENERGY STAR, Green Premium
Weight & dimensions
Width
91 mm mm
Depth
284 mm mm
Height
165 mm mm
Weight
6.32 kg kg
Logistics data
Products per pallet
48 pc(s) pc(s)
Harmonized System (HS) code
85078000
Products per master (outer) case
1 pc(s) pc(s)
Other features
Nominal output voltage
230 V V
Nominal input voltage
230 V V
Filtering
Yes
Packaging content
Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord
Power Device
Input Voltage
AC 230 V
Input Voltage Range
AC 196 - 280 V
Power Capacity
300 Watt / 500 VA
General
Device Type
UPS - external
APC Back-UPS 500, 230V

Disclaimers

  • Actual configuration might differ from illustration
