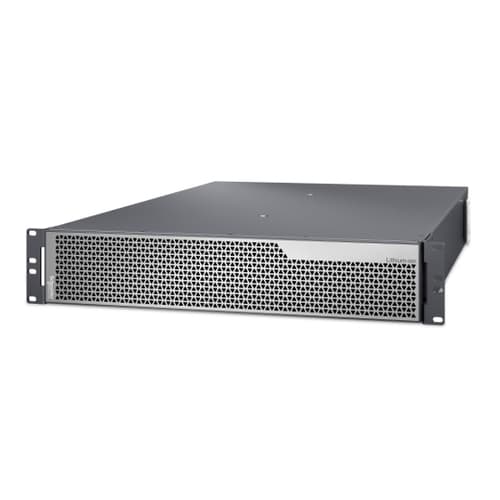

APC Smart-UPS 1500VA LCD RM
Manuf P/N: SMT1500RMI2UC
APAXON#: 4704930
EAN: 731304333005
APC Smart-UPS 1500VA LCD RM
UPS (rack-mountable)
AC 220/230/240 V
1000 Watt
1500 VA
RS-232, USB
output connectors: 4
2U
black
with APC SmartConnect
for P/N: AR106V, AR106VI, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
Weight: 34.40 KG
UPS (rack-mountable)
AC 220/230/240 V
1000 Watt
1500 VA
RS-232, USB
output connectors: 4
2U
black
with APC SmartConnect
for P/N: AR106V, AR106VI, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
Weight: 34.40 KG
- Intuitive LCD interface
- Predictive replace battery date
- Energy meter
- Pure sine wave output on battery
- Single switched outlet group
- High online efficiency
- SmartSlot
- Cold-start capable
- Temperature-compensated battery charging
Stock32
Price £ 1,043.95
Price inc. VAT
£ 1,252.74
Quantity
|
Similar Products
Product Summary
Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Extended Specification
Features
Output power capacity
1.5 kVA kVA
Output power
1000 W W
Input operation voltage (min)
151 V V
Input operation voltage (max)
302 V V
Input frequency
50/60 Hz Hz
Output operation voltage (min)
220 V V
Output operation voltage (max)
240 V V
Output frequency
50/60 Hz Hz
Surge energy rating
459 J J
Response time
10 ms ms
Noise level
46 dB dB
UPS topology
Line-Interactive
Output power capacity
1.5 kVA
Output power
1000 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
459 J
Response time
10 ms
Noise level
46 dB
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm
Auto-restart
Yes
Ports & interfaces
AC outlets quantity
4 AC outlet(s) AC outlet(s)
AC outlet types
C13 coupler, IEC Jumpers
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
Battery
Battery life (max)
6 year(s) year(s)
Battery recharge time
3 h h
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
6 year(s)
Battery recharge time
3 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-15 - 45 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
0 - 3000 m m
Non-operating altitude
0 - 15000 m m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm mm
Depth
477 mm mm
Height
86 mm mm
Weight
26.1 kg kg
Width
432 mm
Depth
477 mm
Height
86 mm
Weight
26.1 kg
Packaging data
Package width
594 mm mm
Package depth
603 mm mm
Package height
251 mm mm
Package weight
31.9 kg kg
Resource CD
Yes
Package width
594 mm
Package depth
603 mm
Package height
251 mm
Package weight
31.9 kg
Logistics data
Products per pallet
8 pc(s) pc(s)
Products per pallet
8 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
1416.6
Other features
Output voltage
230 V V
Output voltage
230 V
Design
Form factor
Rackmount
Product colour
Black
Rack capacity
2U
Display type
LCD
LED indicators
Yes
Certificates
Certification
CE, EAC, EN / IEC 62040-1, EN / IEC 62040-2, Energy Star 1.0 (EU), RCM, TÜV, VDE
Packaging content
Rack mount kit
Yes
Cables included
RS-232, USB cable
Manual
Yes
Sustainability
Sustainability certificates
ENERGY STAR, Green Premium
General
Device Type
UPS - rack-mountable
Power Device
Input Voltage
AC 220/230/240 V
Power Capacity
1000 Watt / 1500 VA
Input Voltage Range
AC 160 - 286 V
Miscellaneous
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR106V, AR106VI, AR112SH6, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X432, AR7007, AR7050, AR7057, NBWL0356
