This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

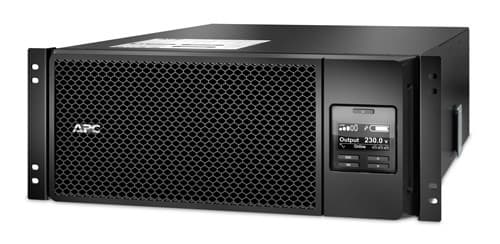

APC Marine Smart-UPS On-Line - UPS (rack-mountable / external) - AC 220/230/240 V - 6000 Watt - 6000 VA - Ethernet, serial - output connectors: 10 - 4U - for P/N: AR3103SP, AR3106SP, SRT192BPUS, SRT192RMBP2US, SRT192RMBPUS, SRT72RMBPUS, SRT96RMBPUS
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 13 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
Similar Products
Overview
APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
Specifications
Features
- Output power capacity
- 6 kVA
- Output power
- 6000 W
- Waveform
- Sine
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 480 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 3%
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
- Temperature voltage compensation
- Yes
- UPS topology
- Double-conversion (Online)
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler, IEC Jumpers
- Power plug
- Terminal
- AC outlets quantity
- 13 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Cabling technology
- 10/100Base-T
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount
- Product colour
- Black
- Rack capacity
- 4U
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, RCM, VDE, REACH
Weight & dimensions
- Width
- 432 mm
- Depth
- 719 mm
- Height
- 174 mm
- Weight
- 60 kg
Packaging data
- Package width
- 610 mm
- Package depth
- 960 mm
- Package height
- 370 mm
- Package volume
- 67000 cm³
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 55428.62
