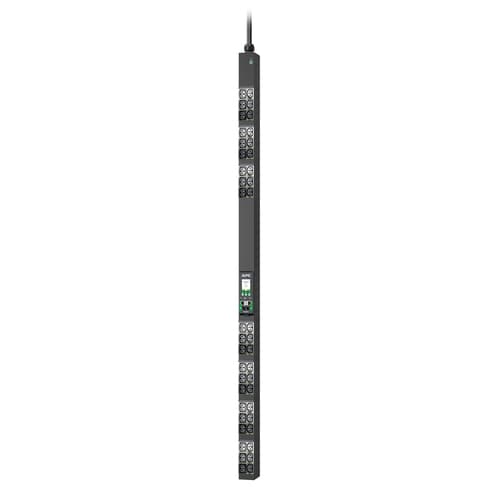

APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched - AC 400/415 V - 11.5 kW - 11500 VA - 3-phase - Ethernet 10/100/1000, Ethernet 10/100 - input: IEC 60309 520P6 - output connectors: 42 (21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15) - 0U - 1.8 m cord - black
Thumbnail 0

APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched - AC 400/415 V - 11.5 kW - 11500 VA - 3-phase - Ethernet 10/100/1000, Ethernet 10/100 - input: IEC 60309 520P6 - output connectors: 42 (21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15) - 0U - 1.8 m cord - black

Manuf P/N: APDU10250SW
APAXON#: 8166898
EAN: 731304439691
APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched - AC 400/415 V - 11.5 kW - 11500 VA - 3-phase - Ethernet 10/100/1000, Ethernet 10/100 - input: IEC 60309 520P6 - output connectors: 42 (21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15) - 0U - 1.8 m cord - black
  • Three-phase Switched 0U Black
  • LCD
  • 42 AC outlet(s) C13 coupler, C15 coupler, C19 coupler, C21 coupler
  • 11500 W
UK Stock8
ConditionNew
Price £ 1,776.73
Price inc. VAT
£ 2,132.08
Quantity
|

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

APC NetShelter Rack PDU Advanced, Switched, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 42 Outlets, IEC309

Extended Specification

Design
PDU types
Switched
Rack capacity
0U
Type
Three-phase
Form factor
Rackmount
Mounting
Vertical
Product colour
Black
Display
LCD
On/off switch
Yes
Regulatory Approvals
CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plug
IEC 60309
Ethernet LAN (RJ-45) ports
2
USB ports quantity
1
Features
Daisy chain
Yes
Reset button
Yes
LED indicators
Activity, Network, Power
Colour-coded outlets
Yes
Cable length
1.8 m
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection
Yes
Compatible products
Compatible with most NetShelter SX enclosures and third-party racks
Management features
Monitoring
Current, Humidity, Power, Temperature, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Firmware upgradeable
Yes
Firmware upgradeable via
Network, USB
Power
Nominal input voltage
400 V
Maximum current
16 A
AC input frequency
50 - 60 Hz
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
11500 VA
Number of phases
3
Maximum total current draw per phase
16 A
Power protection features
Overload
Maximum power
11500 W
Surge protection
Yes
Certificates
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Operating temperature (T-T)
23 - 140 °F
Weight & dimensions
Width
56 mm
Depth
75 mm
Height
1490 mm
Weight
7.2 kg
Packaging data
Package weight
9.2 kg
Package width
208 mm
Package depth
116 mm
Package height
1720 mm
Logistics data
Total carbon footprint (kg of CO2e)
2894.37
