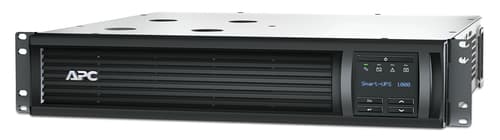

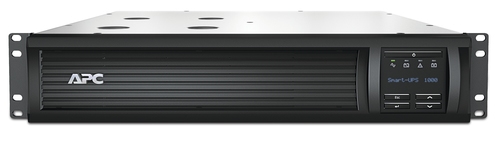

APC Smart-UPS 1000VA LCD RM
APC Smart-UPS 1000VA LCD RM
UPS (rack-mountable)
AC 220/230/240 V
700 Watt
1000 VA
Ethernet 10/100, RS-232, USB
output connectors: 4
2U
black
with APC SmartConnect
for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 31.00 KG
UPS (rack-mountable)
AC 220/230/240 V
700 Watt
1000 VA
Ethernet 10/100, RS-232, USB
output connectors: 4
2U
black
with APC SmartConnect
for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 31.00 KG
- Cold-start capable
- Energy meter
- Green mode
- High online efficiency

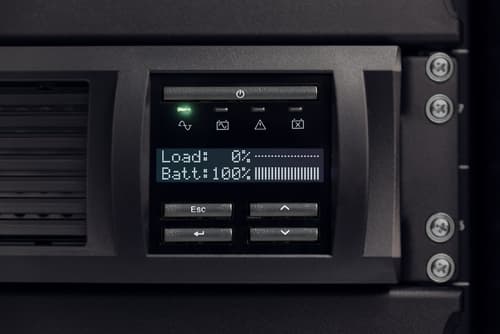

- Intuitive LCD interface
- Predictive replace battery date
Similar Products
Overview
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy-to-use navigation keys. Many different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1 kVA
- Output power
- 700 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz

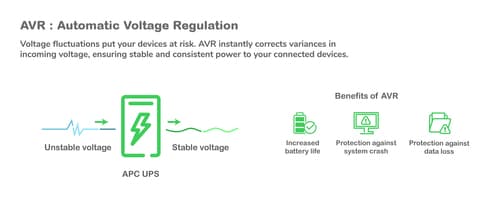

- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 459 J
- Response time
- 10 ms
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 45 dB
- Surge protection
- Yes

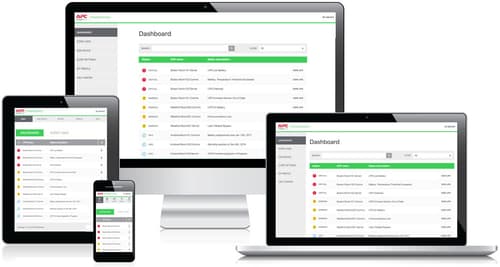

- Web-based management
- Yes
- Auto-restart
- Yes
- Temperature voltage compensation
- Yes
- Output power capacity
- 1 kVA kVA
- Output power
- 700 W W
- Input operation voltage (min)
- 151 V V
- Input operation voltage (max)
- 302 V V
- Input frequency
- 50/60 Hz Hz
- Output operation voltage (min)
- 220 V V
- Output operation voltage (max)
- 240 V V
- Response time
- 10 ms ms
- Output voltage Total Harmonic Distortion (THD)
- 5% %
- Output frequency
- 50/60 Hz Hz
- Noise level
- 45 dB dB
- Surge energy rating
- 459 J J
Ports & interfaces
- AC outlet types
- C13 coupler
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
- USB port type
- USB Type-A
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- SmartSlot
- Yes
- AC outlets quantity
- 4 AC outlet(s) AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- APCRBC132
- Battery life (max)
- 6 year(s) year(s)
- Battery recharge time
- 3 h h
Design
- Form factor
- Rackmount
- Product colour
- Black
- Rack capacity
- 2U
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Storage relative humidity (H-H)
- 0 - 95% %
- Non-operating altitude
- 0 - 15000 m m
- Operating relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 477 mm
- Height
- 86 mm
- Weight
- 22.5 kg
- Width
- 432 mm mm
- Depth
- 477 mm mm
- Height
- 86 mm mm
- Weight
- 22.5 kg kg
Packaging data
- Resource CD
- Yes
- Software CD
- Yes
- Package width
- 594 mm
- Package depth
- 603 mm
- Package height
- 251 mm
- Package weight
- 31.4 kg
- Package width
- 594 mm mm
- Package depth
- 603 mm mm
- Package height
- 251 mm mm
- Package weight
- 31.4 kg kg
Logistics data
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 1165.17
- Products per pallet
- 8 pc(s) pc(s)
General
- Device Type
- UPS - rack-mountable
Power Device
- Input Voltage
- AC 220/230/240 V
- Power Capacity
- 700 Watt / 1000 VA
- Input Voltage Range
- AC 160 - 280 V
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X432, AR7007, AR7050, AR7057, NBWL0356A
