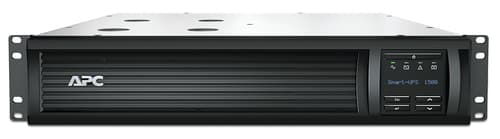

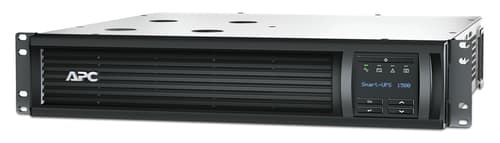

APC Smart-UPS 1500VA LCD RM
APC Smart-UPS 1500VA LCD RM
UPS (rack-mountable)
AC 230 V
1000 Watt
1500 VA
Ethernet, RS-232, USB
output connectors: 4
2U
black
with APC UPS Network Management Card
for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 31.44 KG
UPS (rack-mountable)
AC 230 V
1000 Watt
1500 VA
Ethernet, RS-232, USB
output connectors: 4
2U
black
with APC UPS Network Management Card
for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 31.44 KG
- Intuitive LCD interface
- Predictive replace battery date
- Energy meter
- Pure sine wave output on battery
- Single switched outlet group
- High online efficiency
- SmartSlot
- Cold-start capable
- Temperature-compensated battery charging
Similar Products
Overview
Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Specifications
Battery
- Battery capacity
- 432 Ah
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Battery capacity
- 432 Ah Ah
- Battery recharge time
- 3 h h
Design
- Product colour
- Black
- Form factor
- Rackmount
- Rack capacity
- 2U
- Display type
- LCD
- LED indicators
- Yes
Logistics data
- Total carbon footprint (kg of CO2e)
- 1407.66
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Products per pallet
- 8 pc(s) pc(s)
Other features
- Output voltage
- 230 V
- Output voltage
- 230 V V
Features
- UPS topology
- Line-Interactive
- Output power
- 1000 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Surge energy rating
- 459 J
- Response time
- 2 ms
- Emergency Power Off (EPO)
- O
- Noise level
- 46 dB
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Audible alarm modes
- Battery replacement
- Auto-restart
- Yes
- Output power capacity
- 1.5 kVA
- Output power capacity
- 1.5 kVA kVA
- Output power
- 1000 W W
- Input operation voltage (min)
- 151 V V
- Input operation voltage (max)
- 302 V V
- Input frequency
- 50/60 Hz Hz
- Output operation voltage (min)
- 220 V V
- Output operation voltage (max)
- 240 V V
- Output frequency
- 50/60 Hz Hz
- Output voltage regulation
- 5% %
- Surge energy rating
- 459 J J
- Response time
- 2 ms ms
- Noise level
- 46 dB dB

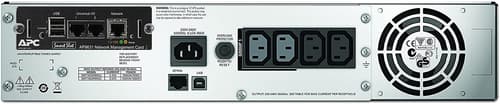

Ports & interfaces
- AC outlet types
- C13 coupler, C14 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 4 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- AC outlets quantity
- 4 AC outlet(s) AC outlet(s)
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
- Rack mount kit
- Yes
- Cables included
- Input power cable, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 457 mm
- Height
- 89 mm
- Weight
- 28.6 kg
- Width
- 432 mm mm
- Depth
- 457 mm mm
- Height
- 89 mm mm
- Weight
- 28.6 kg kg
Packaging data
- Resource CD
- Yes
- Package width
- 594 mm
- Package depth
- 603 mm
- Package height
- 251 mm
- Package weight
- 31.8 kg
- Package width
- 594 mm mm
- Package depth
- 603 mm mm
- Package height
- 251 mm mm
- Package weight
- 31.8 kg kg
General
- Device Type
- UPS - rack-mountable
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 286 V
- Power Capacity
- 1000 Watt / 1500 VA
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF202BLK, ACF400, ACF402, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBPD0180, NBRK0201, NBRK0320, NBRK0320E, NBRK0551, NBWL0355, NBWL0356A
