ARCTIC FREEZER 4U-M R2 4U CPU COOLER

Name: ARCTIC FREEZER 4U-M R2 4U CPU COOLER
Brand: ARCTIC
SKU: ACFRE00133B
Price: 36.79 GBP
Availability: InStock

Manuf P/N: ACFRE00133B

EAN: 4895213704960

ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel. Type: Air cooler, Fan diameter: 12 cm, Airflow: 122.16 m³/h, Bearing type: Dual ball bearing. Width: 156 mm, Depth: 124 mm, Height: 145 mm. Product colour: Aluminium, Black

Stock34

ConditionNew

Exc. VAT

£36.79

Inc. VAT £44.15

Quantity

Notify me when available

Sales & Technical

Phone: 0161 464 9941

Email: sales@apaxon.co.uk

Manufacturer Warranty

Manufacturer warranty applies. Warranty periods and service levels vary by brand and product type.

Apaxon® is an authorised reseller of ARCTIC. Warranty claims, repairs, replacements, and credits are fulfilled strictly in accordance with the manufacturer's terms and conditions.

Returns Policy

Business & Consumer Purchases

Orders placed for business use, resale, or onward supply are treated as Business-to-Business (B2B) transactions. B2B sales do not carry an automatic right of cancellation.

Nothing in this policy affects statutory consumer rights under UK law.

Consumer Cancellation (B2C Only)

Consumers may cancel within 14 days of delivery under the Consumer Contracts Regulations 2013.
Cancellation must be confirmed in writing within 14 days of delivery.
Goods must be returned within 14 days of cancellation.
Items must be unused beyond reasonable inspection and in resaleable condition.
Return shipping costs are the customer's responsibility.
Prepaid return labels are not provided for change-of-mind returns.
Refunds are processed after inspection and issued to the original payment method.

Faults & Delivery Issues

Transit damage or shortages must be reported within 48 hours of delivery.
Visible defects must be reported within 7 days of delivery.
Hidden faults must be reported within 7 days of discovery.
Returns require prior authorisation and a valid RMA reference.
Failure to report within these timeframes may affect eligibility for return or claim.

Business Returns (B2B)

Business customers do not have an automatic right to return non-faulty goods.

Supply chain authorisation
Restocking fees (typically 15–25%)
Inspection approval
Non-refundable outbound carriage

Return shipping is the responsibility of the buyer unless agreed otherwise.

Non-Returnable Items

Software, licences, activation keys, and digital products
Special-order or non-standard procurement items
Opened consumables
Items not in resaleable condition

Overview

ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel, Air cooler, 12 cm, 122.16 m³/h, Aluminium, Black

Specifications

Weight & dimensions

Height: 145 mm mm
Width: 156 mm mm
Depth: 124 mm mm
Weight: 1.27 kg kg
Heat pipes diameter: 6 mm mm
Cable length: 0.2 m m
Package width: 160 mm mm
Package depth: 211 mm mm
Package height: 141 mm mm
Package weight: 1.55 kg kg

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm cm
Supported processor sockets: LGA 4189, LGA 4677 (Socket E), LGA 4710 (Socket E2), SP6, Socket TR4, Socket TR5, Socket sTRX4, Socket sWRX8
Maximum airflow: 71.9 cfm cfm
Airflow: 122.16 m³/h m³/h
Bearing type: Dual ball bearing
Fan noise level (max): 40 dB dB
Fan speed (min): 400 RPM RPM
Fan speed (max): 2300 RPM RPM
Fan static pressure: 3.3 mmH2O mmH2O
Operating temperature (T-T): 0 - 40 °C °C

Design

Product colour: Aluminium, Black
Number of fans: 2 fan(s) fan(s)
Number of fins: 57
Fins material: Aluminium
Number of heat pipes: 8
Fan connector: 4-pin
Rack capacity: 4U

Power

Starting voltage: 8 V V
Thermal Design Power (TDP): 350 W W
Fan voltage: 12 V V
Fan current: 0.12 A A

Packaging content

Package type: Box

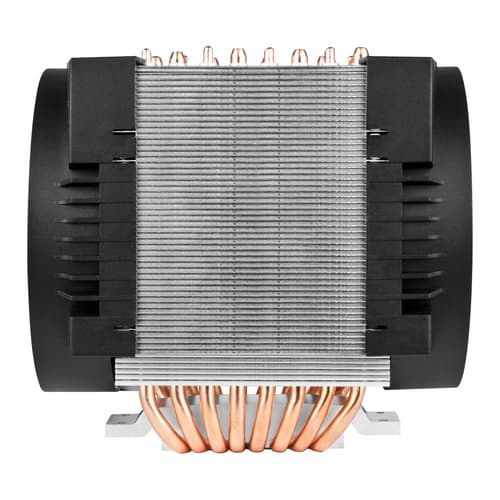

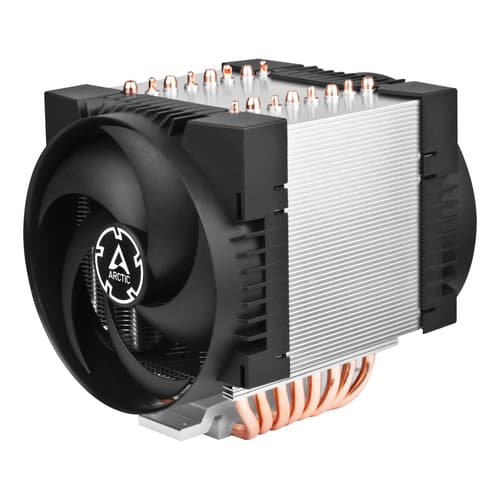

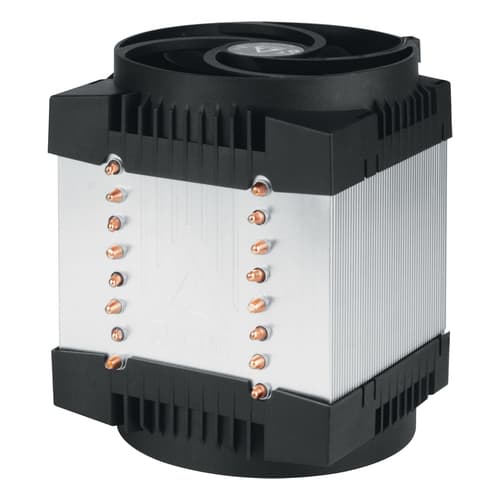

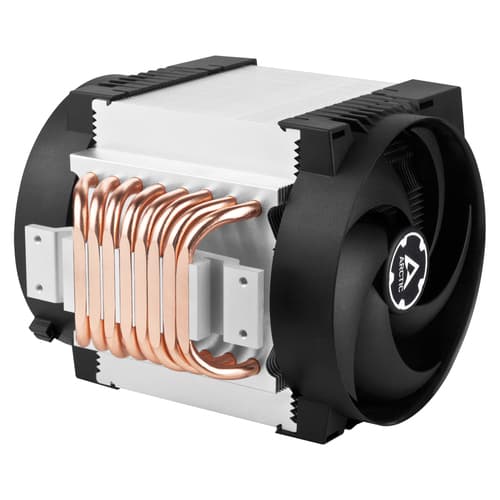

ARCTIC FREEZER 4U-M R2 4U CPU COOLER — image 1

Versatile Multi-Compatible Server Cooler

The Freezer 4U-M Rev. 2 stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4710, LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. It also supports the Ampere Altra LGA4926*. Remarkably, despite its impressive cooling capabilities, the Freezer 4U-M Rev. 2 consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.

RAM Compatibility and Clearance

The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.

Compact Design and Dual Socket Compatibility

With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

Powerful Fans in Push-Pull Configuration

The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

Designed for continuous operation

Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

Premium Thermal Paste Included

The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
