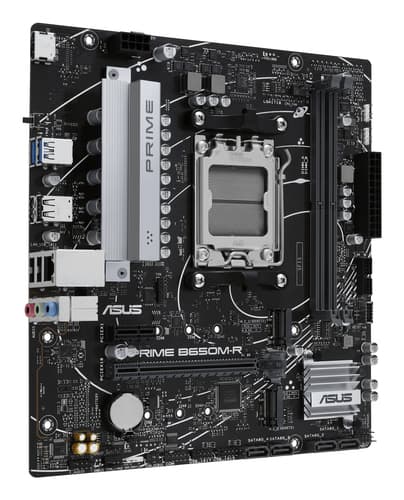

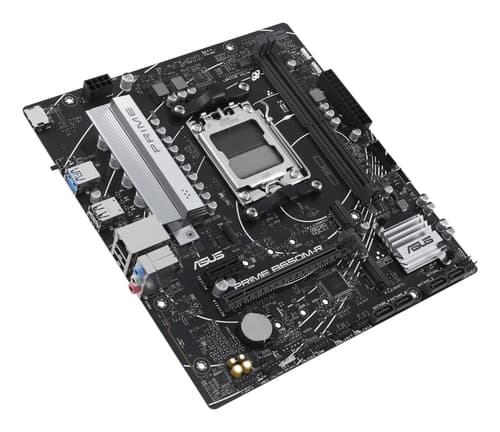

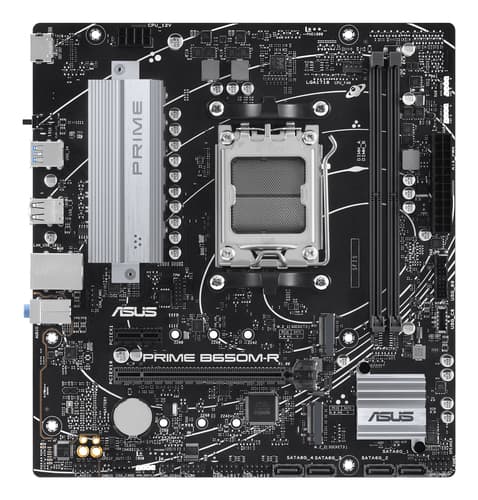

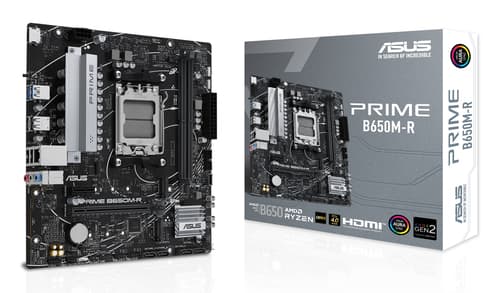

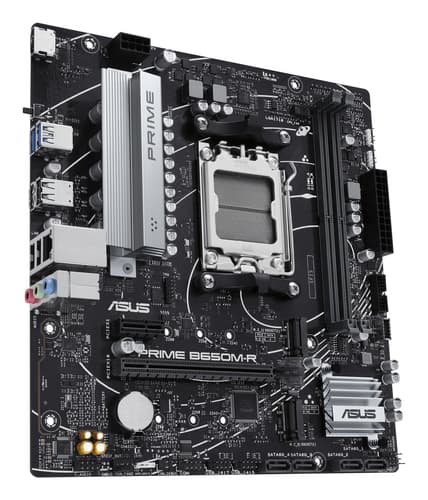

ASUS MOBO MBA
- AM5 Socket for AMD Ryzen Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Similar Products
Overview
ASUS PRIME B650M-R, AMD, Socket AM5, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, 96 GB
Specifications
Rear panel I/O ports
- DVI-D ports quantity
- 0
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Line-in
- Yes
Packaging data
- Package weight
- 855 g g
- Package width
- 260 mm mm
- Package depth
- 270 mm mm
- Package height
- 51.5 mm mm
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- Supported processor sockets
- Socket AM5
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Maximum internal memory
- 96 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
- Supported memory clock speed (max)
- 7200 MHz MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0, 1, 10
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- AMD
- Motherboard chipset
- AMD B650
- Audio output channels
- 7.1 channels channels
- Product colour
- Black
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit Mbit
Weight & dimensions
- Width
- 236 mm mm
- Depth
- 221 mm mm

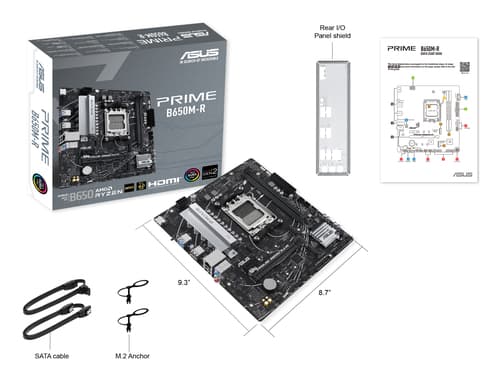

Packaging content
- Cables included
- SATA
- User guide
- Yes
Other features
- Back-to-BIOS button
- Yes
