This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

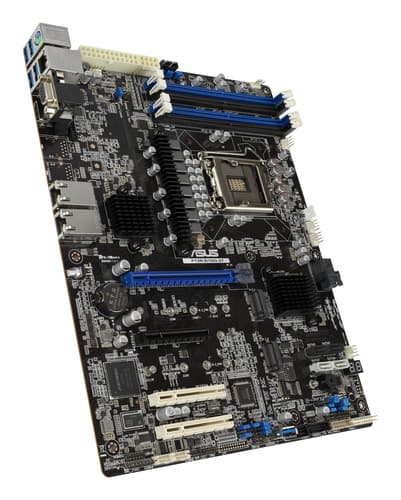

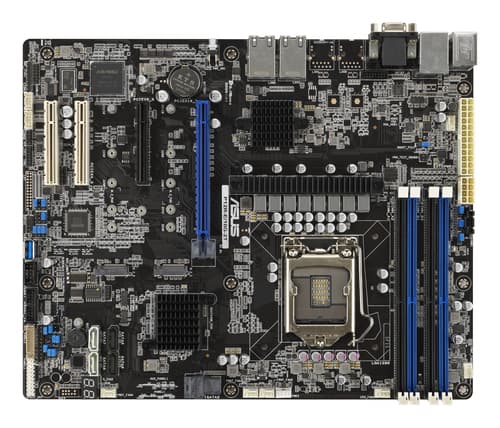

ASUS P12R-E/10G-2T - Motherboard - ATX - LGA1200 Socket - C256 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Dual Intel X710AT 10GbE Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Similar Products
Overview
ASUS P12R-E/10G-2T, Intel, LGA 1200 (Socket H5), Intel® Pentium®, Intel Xeon E, DDR4-SDRAM, 128 GB, DIMM
Specifications
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 3
- Peripheral (Molex) power connectors (4-pin)
- 6
- EPS power connector (8-pin)
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 2
- USB 2.0 connectors
- 0
- ATX Power connector (24-pin)
- Yes
- Number of COM connectors
- 1
- Number of SATA III connectors
- 8
- TPM connector
- Yes
- Serial port headers
- 1
Rear panel I/O ports
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
Network
- Ethernet interface type
- 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi
- No
- Ethernet LAN
- Yes
- LAN controller
- Intel X710-AT2
Features
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel C256
- Component for
- Server
Expansion slots
- Number of M.2 (M) slots
- 2
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 10 - 50 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
Packaging data
- Package weight
- 1.3 kg kg
Weight & dimensions
- Width
- 305 mm mm
- Depth
- 244 mm mm
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1200 (Socket H5)
- Compatible processor series
- Intel® Pentium®, Intel Xeon E
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Memory channels
- Dual-channel
- Supported memory clock speeds
- 2666,2933,3200 MHz MHz
- Supported memory module capacities
- 8GB, 16GB, 32GB
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
Graphics
- Graphics card family
- ASPEED
- Graphics card
- AST2600
- On-board graphics card model
- Aspeed AST2600
- On-board graphics card memory
- 64 MB MB
- Parallel processing technology support
- Not supported
Other features
- Weight
- 760 g g
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
