This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

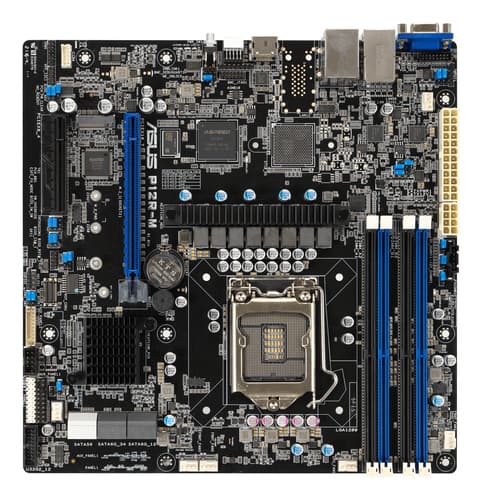

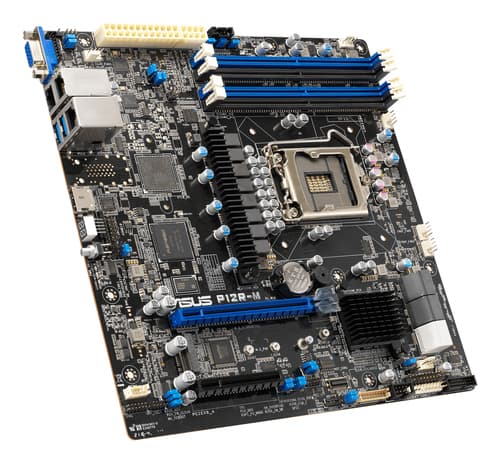

ASUS P12R-M/10G-2T - Motherboard - micro ATX - LGA1200 Socket - C252 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Similar Products
Overview
ASUS P12R-M/10G-2T/ASMB10, Intel, LGA 1200 (Socket H5), Intel® Pentium®, Intel Xeon E, LGA 1700, DDR4-SDRAM, 128 GB
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1200 (Socket H5)
- Compatible processor series
- Intel® Pentium®, Intel Xeon E
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Memory channels
- Dual-channel
- Supported memory clock speeds
- 2666,2933,3200 MHz MHz
- Memory slots type
- DIMM
- Maximum internal memory
- 128 GB GB
- Supported memory module capacities
- 4GB, 8GB, 16GB, 32GB
Internal I/O
- Number of SATA III connectors
- 6
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- ATX Power connector (24-pin)
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 6
- Serial port headers
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 2
Rear panel I/O ports
- HDMI ports quantity
- 1
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- DVI-D ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 3
- VGA (D-Sub) ports quantity
- 1
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
Features
- Component for
- Server
- Motherboard chipset
- Intel C252
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
Expansion slots
- PCI Express x4 slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 1
Operational conditions
- Storage relative humidity (H-H)
- 20 - 90% %
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 10 - 50 °C °C
Graphics
- Graphics card family
- ASPEED
- Graphics card
- AST2600
- On-board graphics card memory
- 64 MB MB
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
Weight & dimensions
- Width
- 244 mm mm
- Depth
- 244 mm mm
Packaging data
- Package weight
- 9.5 kg kg
