This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

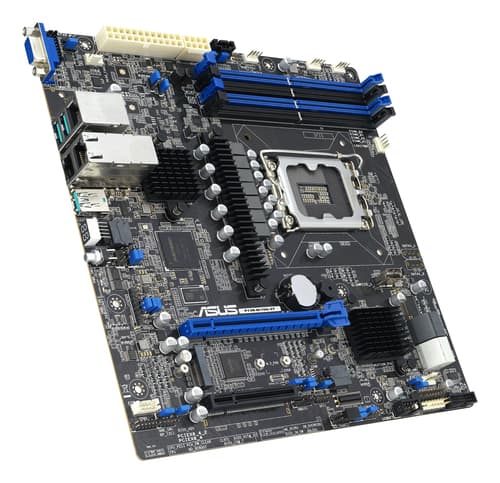

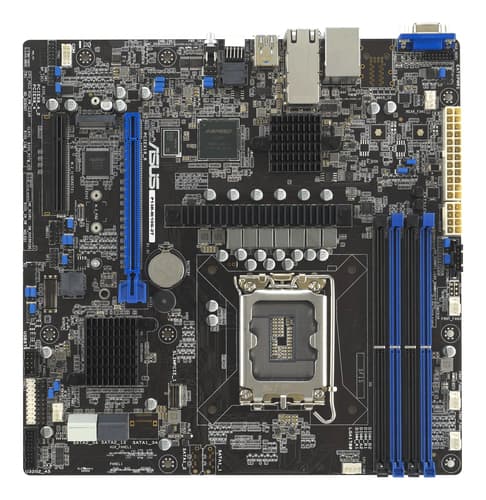

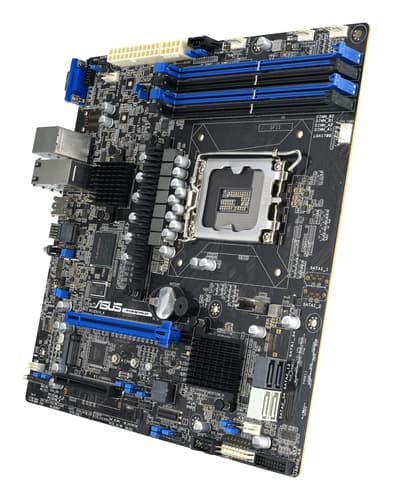

ASUS P13R-M/10G-2T - Motherboard - micro ATX - LGA1700 Socket - C262 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
- Powered by eight-core Intel Xeon E-2400-series processor with support for up to 95 W TDP
- Flexible expandability with four native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
- Dual-port Intel X710-AT2 gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Similar Products
Overview
ASUS P13R-M/10G-2T, Intel, LGA 1700, Intel® Pentium®, Intel Xeon E, LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Pentium®, Intel Xeon E
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- Supported memory clock speeds
- 3600,4000,4400 MHz MHz
- Supported memory clock speed (max)
- 4400 MHz MHz
- Supported memory module capacities
- 8GB, 16GB, 32GB
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 5
- RAID support
- Yes
Graphics
- Graphics card family
- ASPEED
- Graphics card
- AST2600
- On-board graphics card model
- Aspeed AST2600
- On-board graphics card memory
- 64 MB MB
Internal I/O
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 3
- Number of SATA III connectors
- 4
- ATX Power connector (24-pin)
- Yes
- Number of chassis fan connectors
- 6
- Chassis intrusion connector
- Yes
- TPM connector
- Yes
- Serial port headers
- 1
- 12V power connector
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 0
- DVI-D ports quantity
- 0
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet
- LAN controller
- Intel X710-AT2
Features
- Component for
- Server
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel C262
Expansion slots
- PCI Express x8 slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 1
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 10 - 50 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
Packaging data
- Package depth
- 281 mm mm
- Package height
- 78 mm mm
- Package weight
- 1.3 kg kg
- Package width
- 341 mm mm
Weight & dimensions
- Width
- 244 mm mm
- Depth
- 244 mm mm
Packaging content
- Cables included
- SATA
