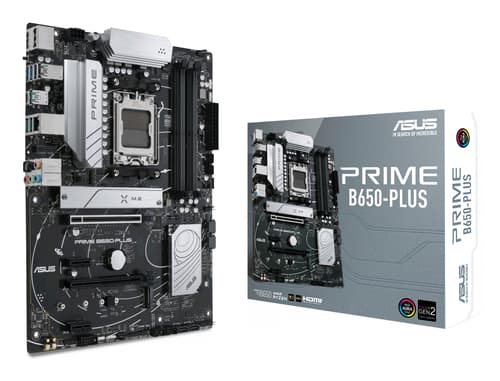

ASUS Prime B650-Plus - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1BS0-M0EAY0

APAXON#: 7925940

EAN: 4711081923381

ASUS Prime B650-Plus - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
  • AMD Socket AM5 AMD Ryzen 7000 Series
  • PC ATX AMD B650 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet

Similar Products

Compare All

ASUS PRIME B650-PLUS AMD B650 Socket AM5 ATX

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Unbuffered memory
Yes

Storage controllers

Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of SATA connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes

Rear panel I/O ports

USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
S/PDIF out port
Yes

Network

Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet

Features

Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Product colour
Multicolour
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11 x64

Expansion slots

PCI Express x4 (Gen 1.x) slots
2
PCI Express x16 (Gen 4.x) slots
2
PCI slots
0
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Packaging data

Package width
338 mm
Package depth
373 mm
Package height
68 mm
Package weight
1.35 kg

Weight & dimensions

Width
305 mm
Depth
244 mm

Packaging content

Cables included
SATA
User guide
Yes

Other features

mSATA ports quantity
0
Back-to-BIOS button
Yes
Number of M.2 (E) slots
1
