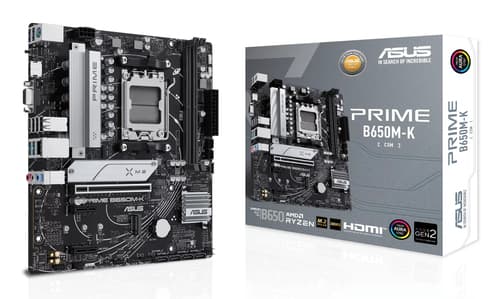

ASUS PRIME B650M-K - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1F60-M0EAY0
APAXON#: 8459023
EAN: 4711387236628
ASUS PRIME B650M-K - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD B650 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
Stock67
Price Ā£107.77
Quantity
|
Similar Products
ASUS PRIME B650M-K - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock67
Ā£107.77
ASUS ROG STRIX Z790-H GAMING WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
ASUS Prime X670-P - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB-C 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS PRIME B650M-K AMD B650 Socket AM5 micro ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Maximum internal memory
96 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC Ńompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
Parallel processing technology support
Not supported
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
S/PDIF out connector
Yes
Audio connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Group 2206
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
DVI-D ports quantity
0
PS/2 ports quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
Group 2764
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Group 13324
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11
Group 4189
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
2
Number of M.2 (M) slots
2
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 72243
Package width
260 mm
Package depth
270 mm
Package height
51.5 mm
Package weight
1.07 kg
Group 1019
Width
244 mm
Depth
221 mm
Group 4753
Cables included
SATA
