ASUS PRIME Z790M-PLUS - Motherboard - micro ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1E70-M0EAY0

APAXON#: 7923903

ASUS PRIME Z790M-PLUS - Motherboard - micro ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Similar Products

Compare All

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX

Internal I/O

Number of SATA III connectors
4
Number of SATA connectors
0
S/PDIF out connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA II connectors
0
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes
Audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of COM connectors
1
Serial port headers
1

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
ECC сompatibility
Non-ECC
Maximum internal memory
128 GB GB
Memory slots type
DIMM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
Unbuffered memory
Yes

Network

Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet

Features

Component for
PC
Motherboard chipset
Intel Z790
Audio output channels
7.1 channels channels
Product colour
Aluminium, Black
Windows operating systems supported
Windows 10, Windows 11
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Power source type
ATX

Expansion slots

PCI Express x1 (Gen 4.x) slots
2
Number of M.2 (M) slots
3
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1

BIOS

BIOS type
UEFI AMI
BIOS memory size
192 Mbit Mbit

Other features

mSATA ports quantity
0

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer
Intel
Processor socket
LGA 1700

Storage controllers

Supported storage drive interfaces
M.2, PCI Express 4.0, SATA
Supported storage drive types
HDD & SSD
Number of HDDs supported
3
Number of storage drives supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

On-board graphics card
No

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DVI-D ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
HDMI version
2.0
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
COM ports quantity
1

Weight & dimensions

Width
244 mm mm
Depth
244 mm mm

Packaging content

Bundled software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Cables included
SATA

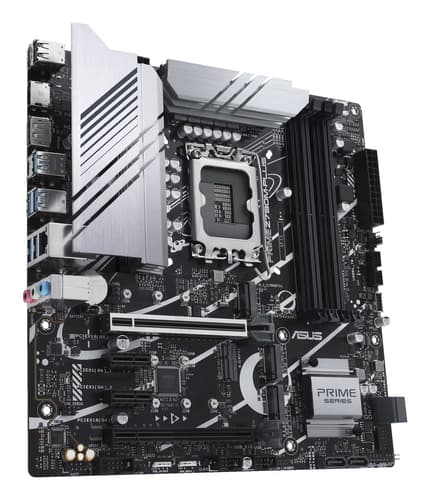

ASUS PRIME Z790M-PLUS - Motherboard - micro ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) — image 1
