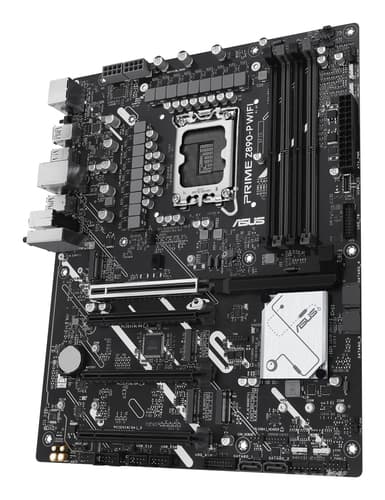

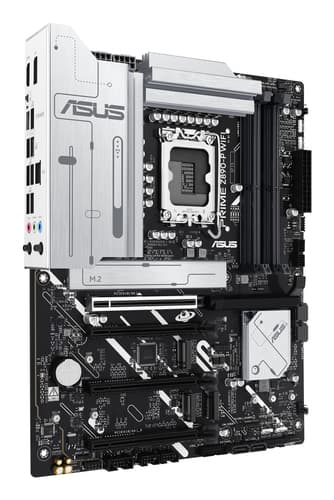

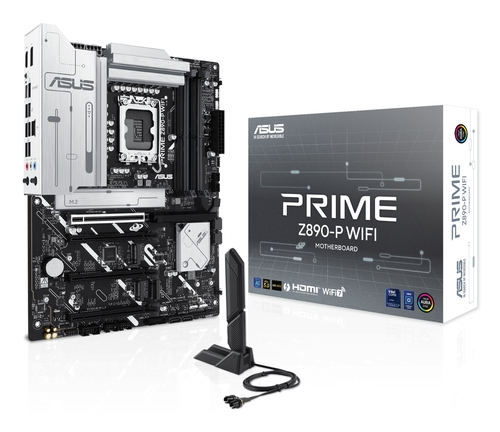

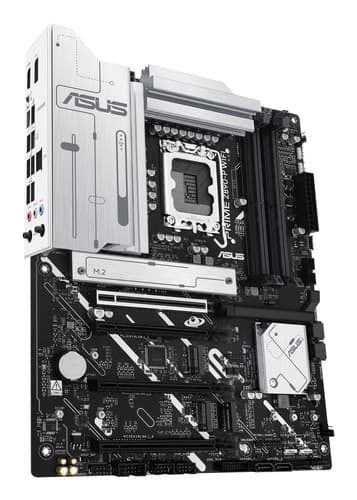

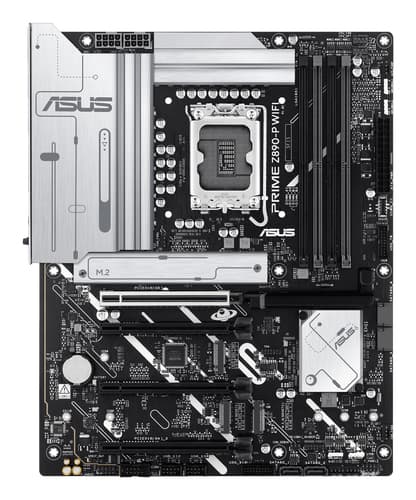

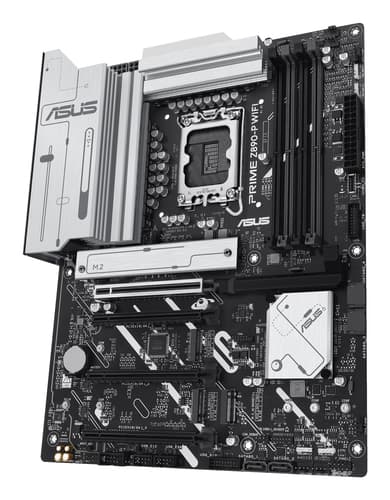

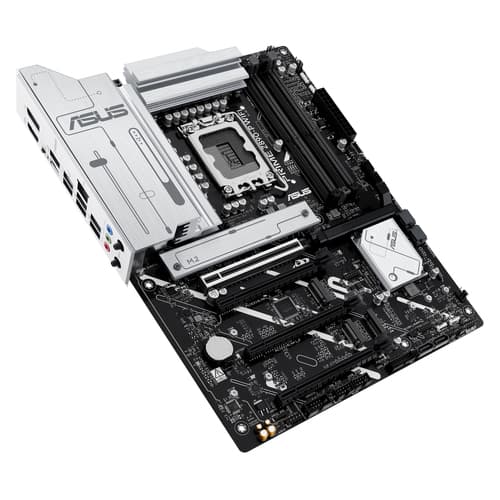

ASUS PRIME Z890-P WIFI
Motherboard
ATX
LGA1851 Socket
Z890 Chipset
USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Weight: 1.86 KG
- Supports Intel Core Ultra processors with LGA1851 socket
- Equipped with four DIMM slots for DDR5 SDRAM with speeds up to 4333 MHz
- Multiple connectivity options including Thunderbolt 4 and USB 3.2
- Robust expansion with PCIe 5.0 x16 slots and multiple M.2 storage options
- High definition audio output for improved sound quality
Similar Products
Overview
The ASUS PRIME Z890-P WIFI motherboard is designed to elevate computing experiences with a robust feature set that supports Intel Core Ultra processors (Series 2). With a micro ATX form factor and a chipset based on Intel Z890, it accommodates DDR5 SDRAM technology and supports speeds up to 4333 MHz (O.C.), ensuring efficient operation for demanding tasks. The motherboard is equipped with four DIMM slots allowing for substantial memory capacity and dual-channel architecture, enhancing overall system performance. Connectivity and expansion are key components of this motherboard. The PRIME Z890-P features a range of ports including Thunderbolt 4, USB 3.2, HDMI, and DisplayPort, ensuring seamless integration with various devices. Gamers and content creators will benefit from multiple PCIe 5.0 x16 slots for graphics cards and expansion cards, as well as flexible storage options with up to four SATA-600 ports and four M.2 slots that support RAID configurations. With features like ASUS Aura Sync and high definition audio, this motherboard provides an immersive experience for both work and play.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 192 GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speed (max)
- 7600 MHz
- Unbuffered memory
- Yes
- Maximum internal memory
- 192 GB GB
- Supported memory clock speed (max)
- 7600 MHz MHz
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 4
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- Thunderbolt headers
- 1
- 12V power connector
- Yes
- RGB LED pin header
- Yes

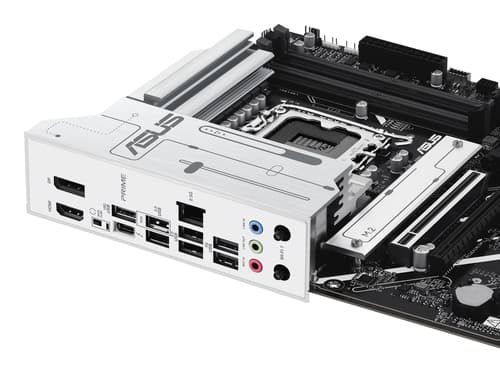

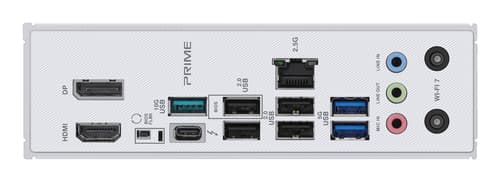

Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Headphone outputs
- 1
- Line-in
- Yes

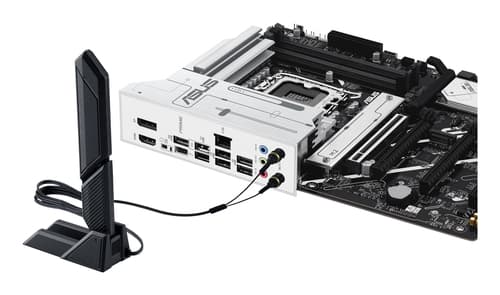

Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel Z890
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10, Windows 11
- Audio output channels
- 7.1 channels channels
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 3
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 4
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- BIOS memory size
- 256 Mbit Mbit
Packaging data
- Package width
- 353 mm
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 1.89 kg
- Package width
- 353 mm mm
- Package depth
- 273 mm mm
- Package height
- 68 mm mm
- Package weight
- 1.89 kg kg
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Width
- 305 mm mm
- Depth
- 244 mm mm

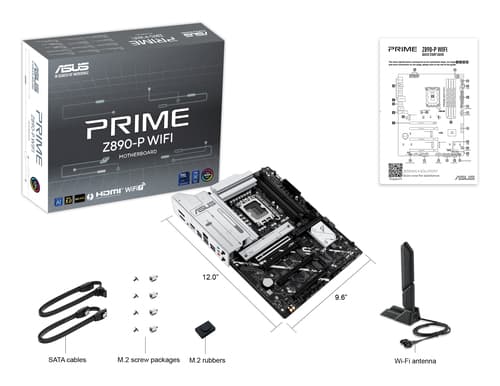

Packaging content
- Cables included
- SATA
Other features
- Quick installation guide
- Yes
- Back-to-BIOS button
- Yes
