This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

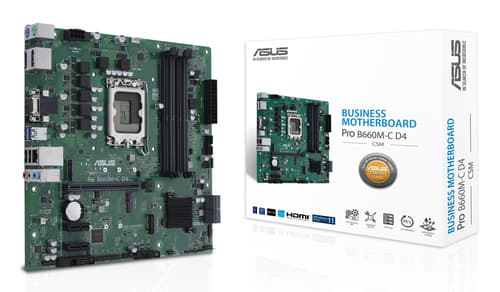

ASUS PRO B660M-C D4-CSM - Motherboard - micro ATX - LGA1700 Socket - B660 Chipset - USB 3.2 Gen 1, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) - ASUS Corporate Stable Model (CSM)
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
- PC micro ATX Intel B660 Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA RAID support
- 128 Mbit
- Gigabit Ethernet Bluetooth 5.2
Similar Products
Overview
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
- Maximum number of SMP processors
- 1
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA
- Supported storage drive types
- HDD & SSD
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
- Number of displays supported
- 3
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- Number of SATA II connectors
- 0
- Number of SATA connectors
- 0
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- PS/2 ports quantity
- 2
- HDMI version
- 2.1
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Headphone outputs
- 1
- Microphone in
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Top Wi-Fi standard
- Not available
- Bluetooth
- Yes
- Bluetooth version
- 5.2
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel B660
- Audio output channels
- 7.1 channels
- Audio chip
- Realtek ALC897
- Product colour
- Green
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI slots
- 0
- Number of M.2 (M) slots
- 2
BIOS
- BIOS memory size
- 128 Mbit
Logistics data
- Harmonized System (HS) code
- 84733020
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 51 mm
Packaging content
- Cables included
- SATA
- Drivers included
- Yes
Other features
- Weight
- 634 g
