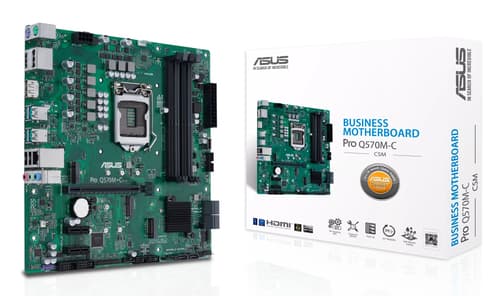

ASUS Pro Q570M-C/CSM - Motherboard - micro ATX - LGA1200 Socket - Q570 Chipset - USB 3.2 Gen 2, USB-C Gen1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- Intel LGA 1200 (Socket H5) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- PC micro ATX Intel Q570 Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- M.2, SATA III
- 192 Mbit Clear CMOS jumper
- Gigabit Ethernet
Similar Products
Overview
ASUS PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX
Specifications
Rear panel I/O ports
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- DVI-D ports quantity
- 0
- PS/2 ports quantity
- 2
- HDMI version
- 1.4/2.0
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1200 (Socket H5)
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Maximum number of SMP processors
- 1
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,2933,3200 MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
Graphics
- Parallel processing technology support
- Not supported
- Maximum resolution
- 4096 x 2304 pixels
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 6
- Audio connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 2
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Intel® I219-V
- Wake-on-LAN ready
- Yes
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel Q570
- Audio output channels
- 7.1 channels
- Audio chip
- Realtek ALC897
- Windows operating systems supported
- Windows 10 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 slots
- 1
- Number of M.2 (M) slots
- 2
BIOS
- BIOS memory size
- 192 Mbit
- Clear CMOS jumper
- Yes
Logistics data
- Harmonized System (HS) code
- 84733020
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 51 mm
Packaging content
- Cables included
- SATA
Other features
- Weight
- 634 g
