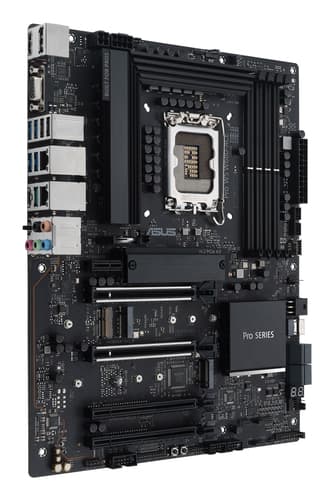

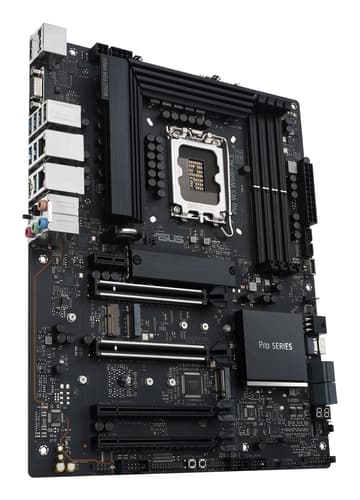

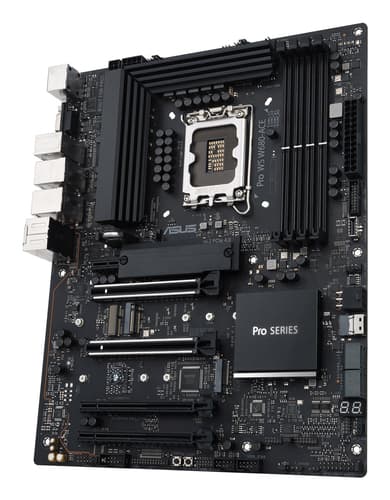

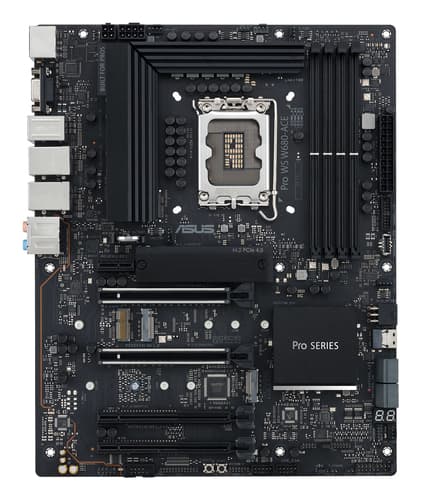

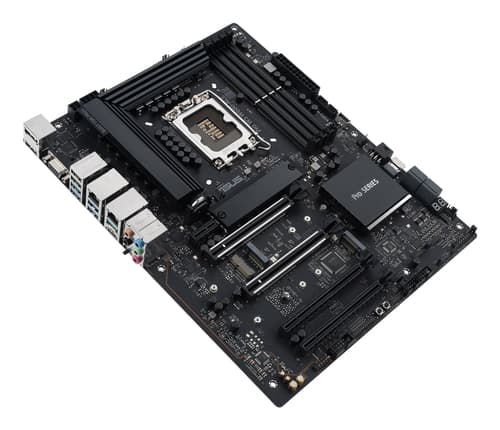

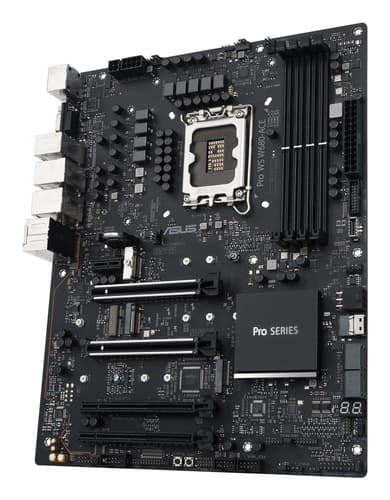

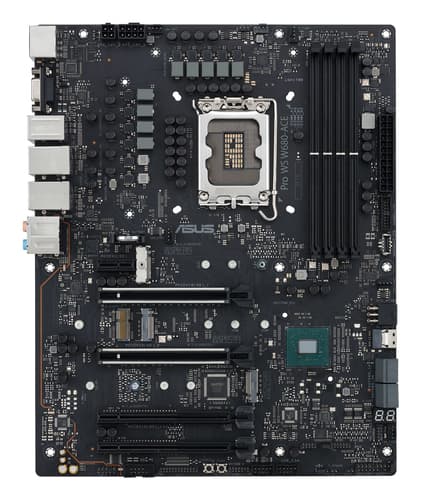

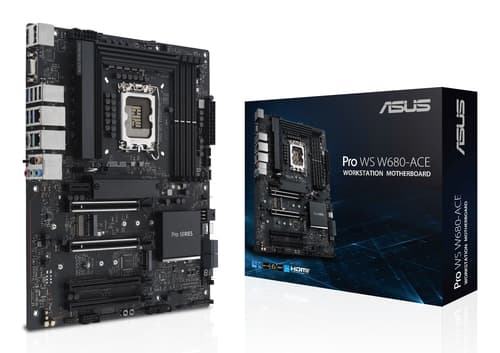

ASUS Pro WS W680-ACE - Motherboard - ATX - LGA1700 Socket - W680 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2 - 2 x 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
Similar Products
Overview
ASUS PRO WS W680-ACE, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Processor manufacturer
- Intel
- Maximum number of SMP processors
- 1
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR5-SDRAM
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB GB
- Unbuffered memory
- Yes
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
Storage controllers
- Supported storage drive interfaces
- M.2, NVMe, SATA III
- Number of HDDs supported
- 8
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
- Supported storage drive types
- HDD & SSD
- Number of storage drives supported
- 11
Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- DVI-D ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Line-in
- Yes
- Microphone in
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
Features
- Motherboard chipset family
- Intel
- Product colour
- Black
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
- Motherboard chipset
- Intel W680
- Audio output channels
- 7.1 channels channels
- Component for
- PC
- Motherboard form factor
- ATX
Internal I/O
- Number of SATA III connectors
- 4
- Number of SATA connectors
- 0
- Number of chassis fan connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 2.0 connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA II connectors
- 0
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 1
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- Front panel audio connector
- Yes
- TPM connector
- Yes
- Integrated SAS ports
- 1
- Thunderbolt headers
- 1
- 12V power connector
- Yes
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 2
- Number of M.2 (M) slots
- 3
Packaging data
- Package width
- 331 mm mm
- Package height
- 76 mm mm
- Package weight
- 1.18 kg kg
- Package depth
- 266 mm mm

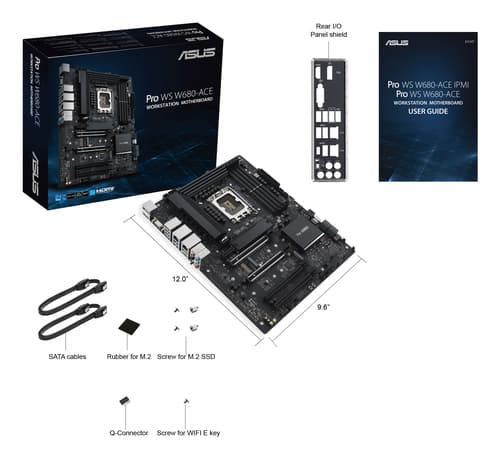

Packaging content
- Cables included
- SATA
- User guide
- Yes
Other features
- mSATA ports quantity
- 0
- Number of M.2 (E) slots
- 1
- Weight
- 997 g g
- Back-to-BIOS button
- Yes
BIOS
- BIOS memory size
- 256 Mbit Mbit
- BIOS type
- UEFI AMI
Weight & dimensions
- Width
- 305 mm mm
- Depth
- 244 mm mm
- Height
- 50 mm mm
