Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

ASUS PRO WS W680M-ACE SE - Motherboard - micro ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - Gigabit LAN, 2 x 2.5 Gigabit LAN - onboard graphics - HD Audio (8-channel)

Manuf P/N: 90MB1FA0-M0EAY0

APAXON#: 10492768

EAN: 4711387298190

ASUS PRO WS W680M-ACE SE - Motherboard - micro ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - Gigabit LAN, 2 x 2.5 Gigabit LAN - onboard graphics - HD Audio (8-channel)
  • Next-gen connectivity: PCIe 5.0 Safeslot, 2 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, TPM header
  • Comprehensive cooling: VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core Processors
  • Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
  • Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
  • Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery

Similar Products

Compare All

ASUS PRO WS W680M-ACE SE, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1700, DDR5-SDRAM, 192 GB

Processor

Supported processor sockets
LGA 1700
Compatible processor series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket
LGA 1700
Processor manufacturer
Intel

Storage controllers

Number of storage drives supported
10
RAID support
Yes
Supported storage drive interfaces
M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Number of HDDs supported
8
RAID levels
0, 1, 5, 10

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Unbuffered memory
Yes
Maximum internal memory
192 GB GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC

Internal I/O

Number of SATA III connectors
4
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
CPU fan connector
Yes
USB 2.0 connectors
2
Audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes

Rear panel I/O ports

USB 2.0 ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
Number of SAS ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
3
HDMI ports quantity
1
DVI-D ports quantity
0
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Headphone outputs
1
DisplayPort version
1.4

Graphics

Parallel processing technology support
Not supported

Network

Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi
No
Ethernet LAN
Yes

Features

Motherboard chipset
Intel W680
Motherboard chipset family
Intel
Audio output channels
7.1 channels channels
Power source type
ATX
Component for
PC
Motherboard form factor
micro ATX
Cooling type
Passive
Windows operating systems supported
Windows 10, Windows 11

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit Mbit

Packaging data

Package width
275 mm mm
Package depth
275 mm mm
Package height
67.5 mm mm
Package weight
1.35 kg kg

Expansion slots

PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
PCI Express x4 (Gen 4.x) slots
1

Weight & dimensions

Width
244 mm mm
Depth
244 mm mm

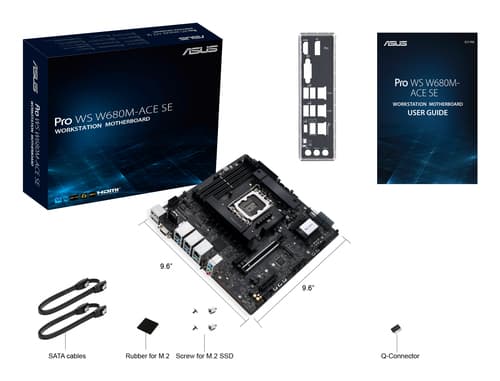

Packaging content

Cables included
SATA
User guide
Yes

Other features

Back-to-BIOS button
Yes
Weight
820 g g

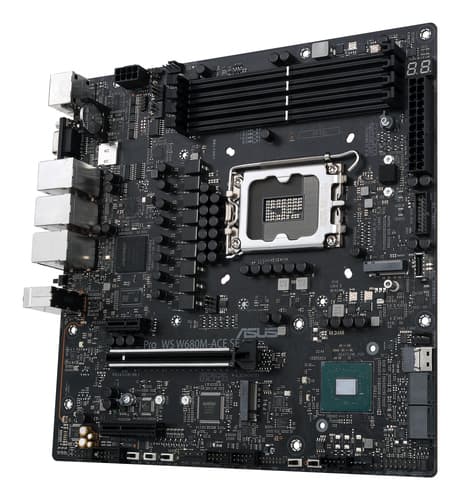

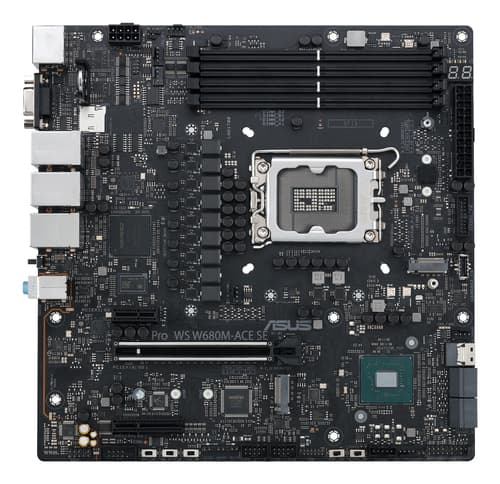

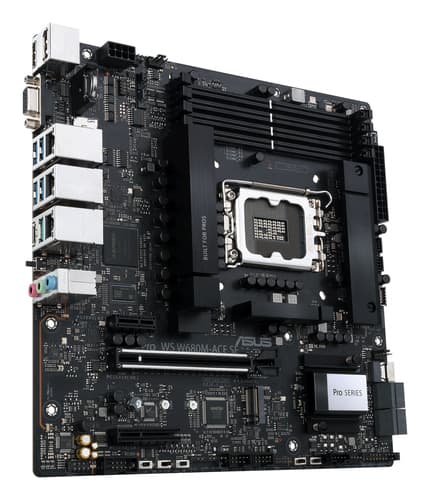

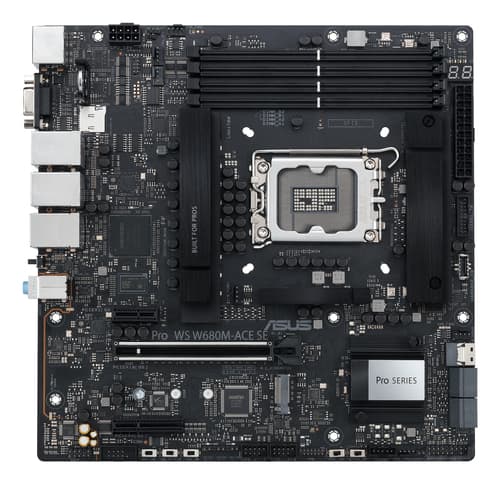

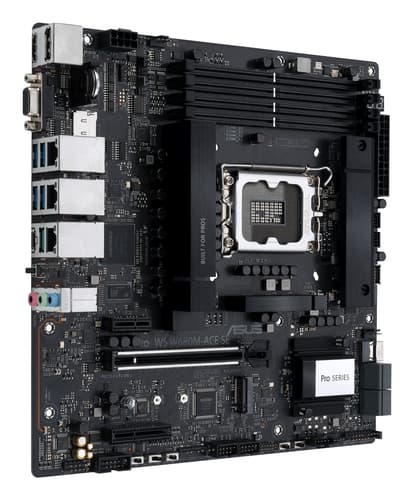

ASUS PRO WS W680M-ACE SE - Motherboard - micro ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - Gigabit LAN, 2 x 2.5 Gigabit LAN - onboard graphics - HD Audio (8-channel) — image 1
