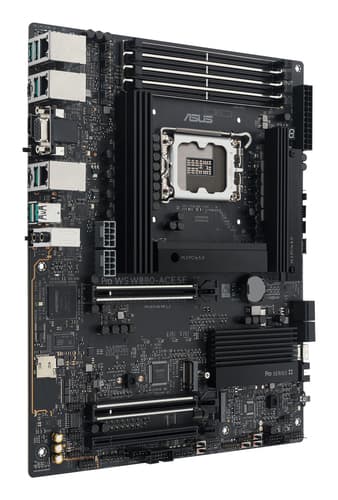

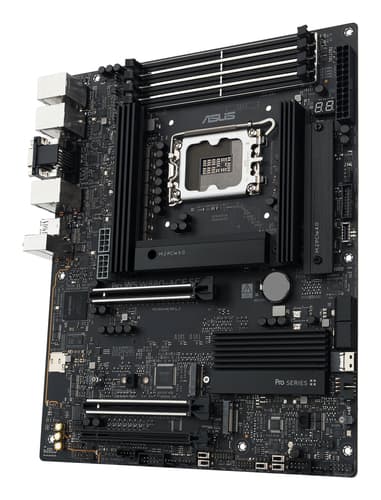

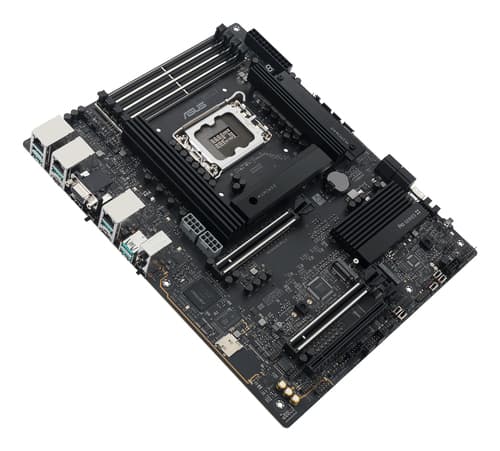

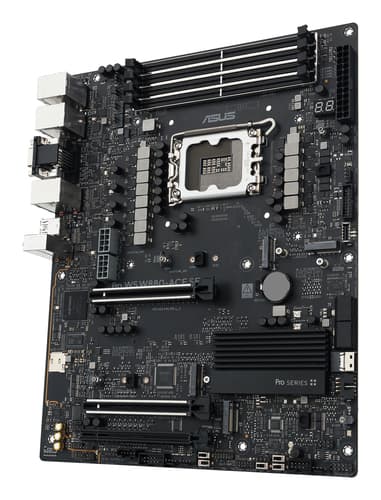

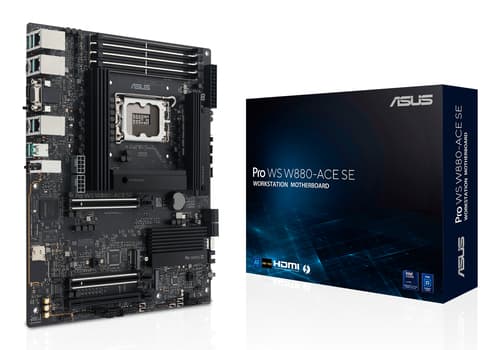

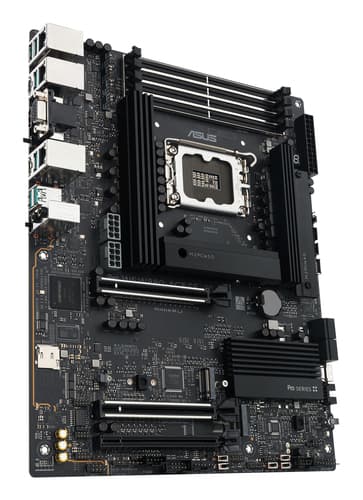

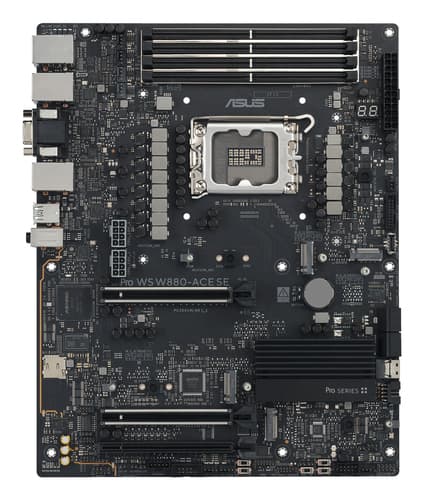

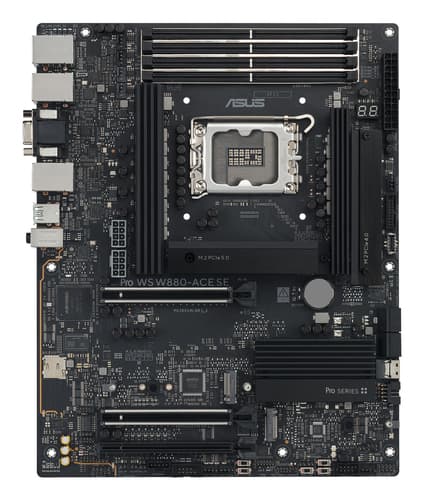

ASUS Pro WS W880-ACE SE - Motherboard - ATX - LGA1851 Socket - W880 Chipset - USB4, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 2.5 Gigabit LAN, Gigabit LAN - onboard graphics - HD Audio (8-channel)
ASUS Pro WS W880-ACE SE - Motherboard - ATX - LGA1851 Socket - W880 Chipset - USB4, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 2.5 Gigabit LAN, Gigabit LAN - onboard graphics - HD Audio (8-channel)
- Ready for advanced AI PCs : Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications
- Robust performance : 8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity : Thunderbolt 4, Dual 2.5Gb Ethernet, two PCIe 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
- DIY-friendly design : M.2 Q-Latch, BIOS FlashBack, Q-Connector
- Server-grade IPMI remote management and onboard BMC : Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
- Intel LGA1851 socket : Ready for Intel Core Ultra 9, 7, and 5 desktop processors
- Exclusive AI technologies : AI Cooling II, AI Advisor and NPU boost
Similar Products
Overview
ASUS PRO WS W880-ACE SE, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Specifications
Storage controllers
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Supported storage drive interfaces
- M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel connector
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 5
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 2
- Thunderbolt headers
- 1
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of CPU fan connectors
- 1
- Chassis intrusion connector
- Yes
- USB 2.0 connectors
- 2
- 12V power connector
- Yes
- Integrated SAS ports
- 1
- Number of COM connectors
- 1
- Number of water pump connectors
- 1
- Number of temperature sensor headers
- 1
Processor
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- Processor manufacturer
- Intel

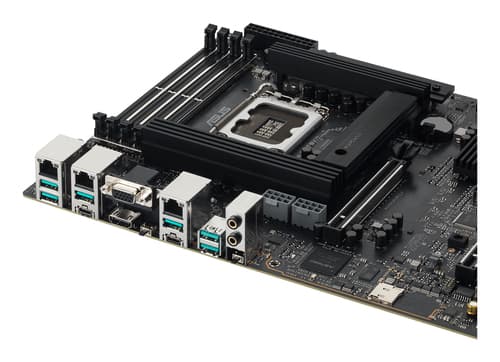

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 3
- DVI-D ports quantity
- 0
- Headphone outputs
- 1
- Thunderbolt ports quantity
- 1
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- VGA (D-Sub) ports quantity
- 1
- HDMI version
- 2.1
- DisplayPort version
- 2.1
- Line-in
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- HDMI ports quantity
- 1
Memory
- Maximum internal memory
- 256 GB GB
- Memory slots type
- DIMM
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB GB
- Supported memory clock speed (max)
- 9066 MHz MHz
- Unbuffered memory
- Yes
Graphics
- Maximum resolution
- 3840 x 2160 pixels pixels
- Parallel processing technology support
- Not supported
Features
- Cooling type
- Passive
- Motherboard chipset
- Intel W880
- Audio chip
- Realtek ALC1220P
- Product colour
- Grey
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Component for
- Workstation
- Audio output channels
- 7.1 channels channels
Expansion slots
- 1st M.2 highest PCI Express generation
- 5.0
- PCI Express x16 (Gen 4.x) slots
- 1
- 1st M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 5.x) slots
- 2
- Number of M.2 (M) slots
- 4
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- 4th M.2 largest key size
- 2280
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet, Gigabit Ethernet
BIOS
- BIOS memory size
- 256 Mbit Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes

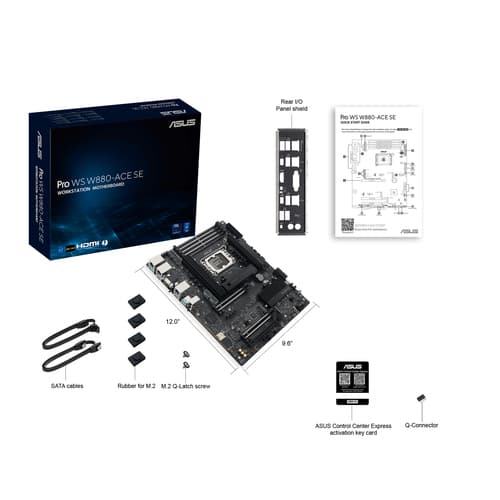

Packaging content
- Cables included
- SATA
Weight & dimensions
- Width
- 305 mm mm
- Depth
- 244 mm mm
