This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

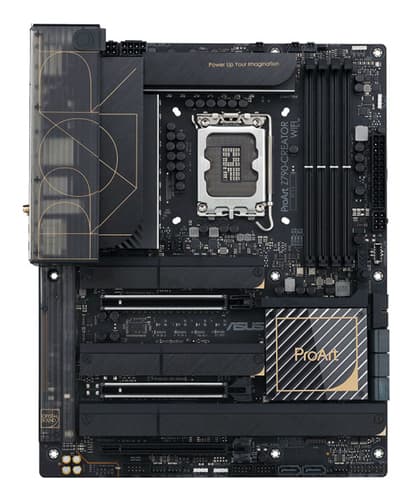

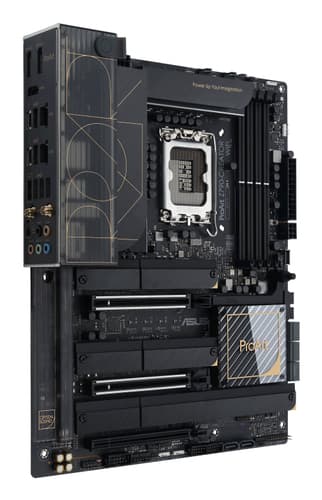

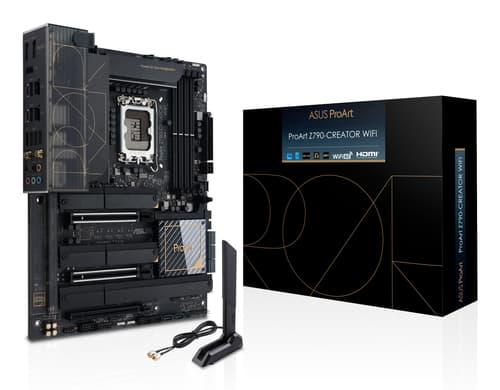

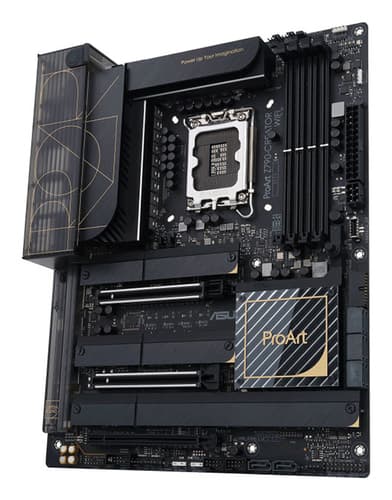

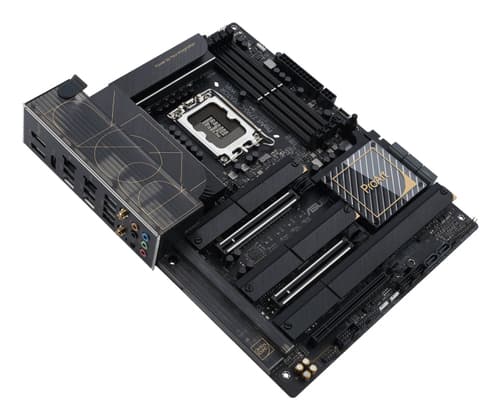

ASUS ProArt Z790-CREATOR WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Similar Products
Overview
ASUS PROART Z790-CREATOR WIFI, AMD, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Processor socket
- LGA 1700
- Maximum number of SMP processors
- 1
- Processor manufacturer
- AMD
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
Internal I/O
- Number of SATA III connectors
- 8
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA connectors
- 0
- Number of SATA II connectors
- 0
- Number of chassis fan connectors
- 5
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Rear panel I/O ports
- DisplayPorts quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- HDMI version
- 2.1
- DisplayPort version
- 1.4
- Line-in
- Yes
- Thunderbolt ports quantity
- 2
- WiFi-AP antenna jack
- 2
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- Headphone outputs
- 1
- Microphone in
- Yes
Features
- Power source type
- ATX
- Component for
- PC
- Motherboard chipset family
- Intel
- Audio output channels
- 7.1 channels channels
- Audio chip
- Realtek S1220A
- Product colour
- Black
- Cooling type
- Passive
- Windows operating systems supported
- Windows 10, Windows 11
- Motherboard form factor
- ATX
- Motherboard chipset
- Intel Z790
Memory
- Number of memory slots
- 4
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speed (max)
- 7200 MHz MHz
- Unbuffered memory
- Yes
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Network
- Ethernet interface type
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Bluetooth
- Yes
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth version
- 5.3
Expansion slots
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 2
BIOS
- BIOS memory size
- 256 Mbit Mbit
Packaging data
- Package width
- 331 mm mm
- Package depth
- 266 mm mm
- Package height
- 76 mm mm
- Package weight
- 2.43 kg kg
Weight & dimensions
- Width
- 305 mm mm
- Depth
- 244 mm mm
Other features
- mSATA ports quantity
- 0
- Back-to-BIOS button
- Yes
- Number of M.2 (E) slots
- 1
