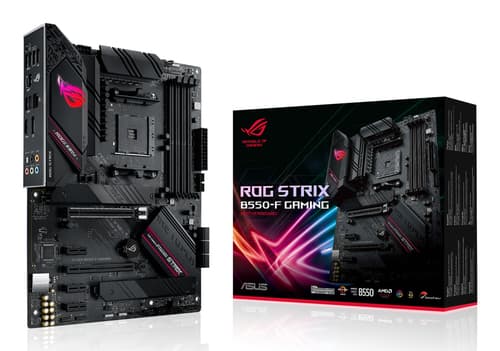

ASUS ROG STRIX B550-F GAMING - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB14S0-M0EAY0
APAXON#: 5766435
EAN: 4718017749688
ASUS ROG STRIX B550-F GAMING - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC ATX AMD B550 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- 2-Way CrossFireX
- BIOS type: UEFI AMI 256000 Mbit
- 2.5 Gigabit Ethernet Bluetooth 5.0
Stock138
Price Ā£137.51
Quantity
|
Similar Products
ASUS ROG STRIX B550-F GAMING - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock138
Ā£137.51
ASUS ROG CROSSHAIR X670E HERO - Motherboard - ATX - Socket AM5 - AMD X670E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.1 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS ROG STRIX B550-F GAMING AMD B550 Socket AM4 ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Group 1020
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
6
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
Parallel processing technology support
2-Way CrossFireX
On-board graphics card
No
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
6
Number of SATA II connectors
0
Number of SATA connectors
0
Number of Parallel ATA connectors
0
Number of EATX power connectors
1
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Thunderbolt headers
1
12V power connector
Yes
Group 2206
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
eSATA ports quantity
0
PS/2 ports quantity
0
Firewire (IEEE 1394) ports
0
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
Group 2764
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Intel I225-V
Wake-on-LAN ready
Yes
Bluetooth
Yes
Bluetooth version
5.0
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Product colour
Black
PC health monitoring
CPU, Fan
Cooling type
Active
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Group 4189
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI slots
7
PCI Express slots version
3.0, 4.0
Number of M.2 (M) slots
2
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256000 Mbit
Group 35800
Harmonized System (HS) code
84733020
Group 1019
Width
305 mm
Depth
244 mm
Height
68 mm
Group 4753
Cables included
SATA
Manual
Yes
Drivers included
Yes
Group 7333
mSATA ports quantity
0
Weight
945 g
