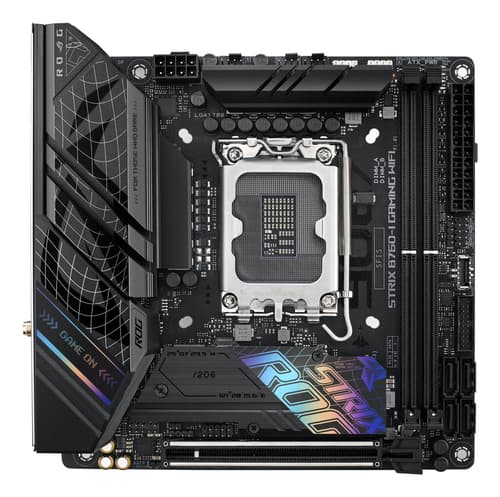

ASUS ROG STRIX B760-I GAMING WIFI - Motherboard - mini ITX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1D90-M1EAY0

APAXON#: 9818610

EAN: 4711081997658

Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
PC mini ITX Intel B760 SupremeFX S1220A 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 128 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3

Stock40

Price £132.32

Quantity

Notify me when available.

Product Summary

ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX

Extended Specification

Group 1382

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors

Supported processor sockets

LGA 1700

Group 1020

Supported memory types

DDR5-SDRAM

Number of memory slots

Maximum internal memory

96 GB

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

7466,4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Supported memory clock speed (max)

7600 MHz

Unbuffered memory

Yes

Group 27949

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of HDDs supported

Number of storage drives supported

RAID support

Yes

RAID levels

0, 1, 5, 10

Group 11085

Parallel processing technology support

Not supported

On-board graphics card

Group 2207

USB 2.0 connectors

USB 3.2 Gen 1 (3.1 Gen 1) connectors

USB 3.2 Gen 2 (3.1 Gen 2) connectors

Number of SATA III connectors

Number of SATA II connectors

Number of SATA connectors

S/PDIF out connector

Yes

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

EPS power connector (8-pin)

Yes

12V power connector

Yes

RGB LED pin header

Yes

Group 2206

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Ethernet LAN (RJ-45) ports

VGA (D-Sub) ports quantity

HDMI ports quantity

DVI-D ports quantity

USB 3.2 Gen 2x2 Type-C ports quantity

DisplayPorts quantity

Headphone outputs

Line-in

Yes

Microphone in

Yes

Group 2764

Wi-Fi

Yes

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Group 13324

Component for

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio output channels

7.1 channels

Audio chip

SupremeFX S1220A

Product colour

Black

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Group 4189

PCI Express x16 (Gen 5.x) slots

Number of M.2 (M) slots

Group 4754

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Group 1019

Width

170 mm

Depth

170 mm

Group 7333

mSATA ports quantity

ASUS ROG STRIX B760-I GAMING WIFI - Motherboard - mini ITX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
