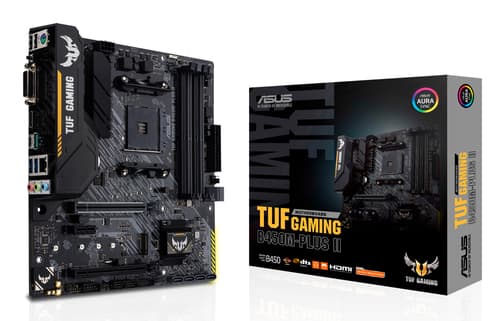

ASUS TUF GAMING B450M-PLUS II - Motherboard - micro ATX - Socket AM4 - AMD B450 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM4 AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
- PC micro ATX AMD B450 Realtek ALC887 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- M.2, SATA, SATA II, SATA III Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 6.1
- Gigabit Ethernet
Similar Products
Overview
ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX
Specifications
Memory
- ECC сompatibility
- ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz
- Unbuffered memory
- Yes
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
Storage controllers
- Supported storage drive interfaces
- M.2, SATA, SATA II, SATA III
- Number of storage drives supported
- 7
- RAID levels
- 0, 1, 10
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 6
- Number of SATA II connectors
- 0
- Number of Parallel ATA connectors
- 0
- S/PDIF out connector
- Yes
- Audio connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 1
- eSATA ports quantity
- 0
- PS/2 ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- AMD
- Motherboard chipset
- AMD B450
- Audio output channels
- 7.1 channels
- Audio chip
- Realtek ALC887
- Windows operating systems supported
- Windows 10 x64, Windows 7 x64
Expansion slots
- PCI Express x1 (Gen 2.x) slots
- 1
- PCI Express x16 (Gen 2.x) slots
- 3
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 6.1
Logistics data
- Harmonized System (HS) code
- 84733020
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 259 mm
Packaging content
- Cables included
- SATA
- Bundled software
- Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Other features
- Weight
- 849 g
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
