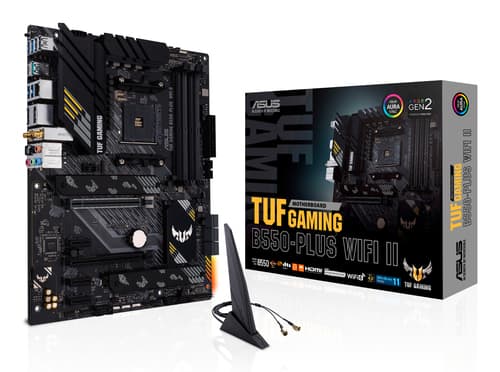

ASUS TUF GAMING B550-PLUS WIFI II - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB19U0-M0EAY0
APAXON#: 7219502
EAN: 4711081338413
ASUS TUF GAMING B550-PLUS WIFI II - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC ATX AMD B550 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA RAID support
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2
Stock49
Price Ā£114.67
Quantity
|
Similar Products
ASUS TUF GAMING B550-PLUS WIFI II - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock49
Ā£114.67
ASUS ROG STRIX Z790-H GAMING WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
ASUS Prime X670-P - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB-C 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Supported processor sockets
Socket AM4
Group 1020
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC Ńompatibility
ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
Parallel processing technology support
Not supported
On-board graphics card
No
Number of displays supported
2
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
6
USB 3.2 Gen 2x2 connectors
0
Number of SATA II connectors
0
Number of SATA connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
RGB LED pin header
Yes
Group 2206
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
0
USB4 Gen 3x2 ports quantity
0
PS/2 ports quantity
0
DVI-I ports quantity
0
DisplayPorts quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
S/PDIF out port
Yes
USB connector type
USB Type-A, USB Type-C
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.2
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Product colour
Black
Windows operating systems supported
Windows 10, Windows 11
Group 4189
PCI Express x1 slots
0
PCI Express x1 (Gen 2.x) slots
0
PCI Express x1 (Gen 3.x) slots
3
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 slots
0
PCI Express x4 (Gen 1.x) slots
0
PCI Express x4 (Gen 2.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 slots
0
PCI Express x8 (Gen 1.x) slots
0
PCI Express x16 slots
0
PCI Express x16 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
0
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
0
PCI slots
0
PCI-X slots
0
Mini PCI Express slots
0
Mini PCI Express (Gen 1.x) slots
0
Mini PCI Express (Gen 2.x) slots
0
Mini PCI Express slot (full length)
0
Mini PCI Express slot (half-length)
0
PCI Express OCuLink connectors (NVMe support)
0
Number of M.2 (M) slots
2
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 35800
Harmonized System (HS) code
84733020
Group 1019
Width
305 mm
Depth
244 mm
Height
75 mm
Group 4753
Cables included
SATA
Drivers included
Yes
Group 7333
mSATA ports quantity
0
Weight
945 g
Packaging content
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide
