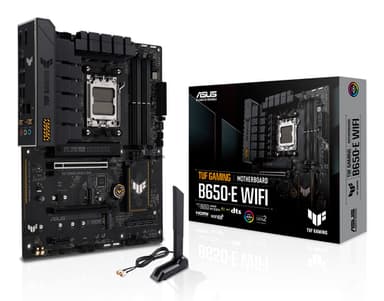

ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C Gen2, USB 3.1 Gen 2 - Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1GT0-M0EAY0
APAXON#: 9824514
EAN: 4711387423073
ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C Gen2, USB 3.1 Gen 2 - Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM5
- PC ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Stock0
Price Ā£111.04
Quantity
|
Similar Products
ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C Gen2, USB 3.1 Gen 2 - Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock0
Ā£111.04
ASUS ROG STRIX Z790-H GAMING WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
ASUS Prime X670-P - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB-C 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
192 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC Ńompatibility
ECC & Non-ECC
Supported memory clock speeds
8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max)
8000 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
Parallel processing technology support
Not supported
On-board graphics card
No
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
USB 3.2 Gen 2x2 connectors
1
Number of SATA II connectors
0
Number of SATA connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes
RGB LED pin header
Yes
Group 2206
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Microphone in
Yes
WiFi-AP antenna jack
1
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Product colour
Black
Windows operating systems supported
Windows 10 x64, Windows 11
Group 4189
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
3
Number of M.2 (M) slots
3
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 72243
Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.36 kg
Group 1019
Width
305 mm
Depth
244 mm
Group 7333
mSATA ports quantity
0
