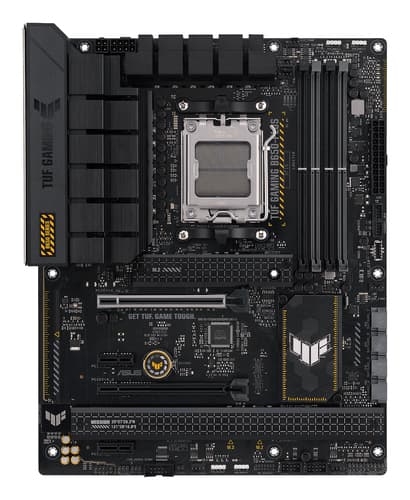

ASUS TUF Gaming B650-Plus - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 2x2, USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1BY0-M0EAY0
APAXON#: 7925869
EAN: 4711081912767
ASUS TUF Gaming B650-Plus - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 2x2, USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
Stock84
Price £155.98
Quantity
|
Similar Products
Product Summary
ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX
Extended Specification
Group 2206
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
Group 2764
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11 x64
Group 4189
PCI Express x4 (Gen 1.x) slots
2
PCI Express x16 (Gen 4.x) slots
2
Number of M.2 (M) slots
3
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 72243
Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.36 kg
Group 1019
Width
305 mm
Depth
244 mm
Group 7333
Back-to-BIOS button
Yes
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
Parallel processing technology support
Not supported
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of COM connectors
1
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes
