Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

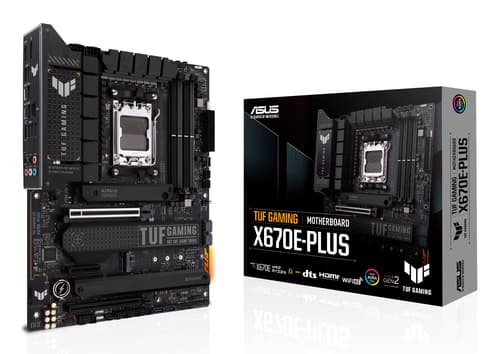

ASUS TUF GAMING X670E-PLUS - Motherboard - ATX - Socket AM5 - AMD X670E Chipset - USB-C 3.2 Gen2, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1BJ0-M0EAY0

APAXON#: 7925909

EAN: 4711081905608

ASUS TUF GAMING X670E-PLUS - Motherboard - ATX - Socket AM5 - AMD X670E Chipset - USB-C 3.2 Gen2, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
  • AMD Socket AM5
  • PC ATX AMD X670 Realtek S1220A 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet

Similar Products

Compare All

ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Unbuffered memory
Yes

Storage controllers

Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10

Graphics

Parallel processing technology support
Not supported
Maximum resolution
7680 x 4320 pixels

Internal I/O

USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes

Rear panel I/O ports

USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
Headphone outputs
1
Microphone in
Yes

Network

Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet

Features

Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
Audio output channels
7.1 channels
Audio chip
Realtek S1220A
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x4 slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
4

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Packaging data

Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.35 kg

Weight & dimensions

Width
305 mm
Depth
244 mm

Packaging content

Cables included
SATA
User guide
Yes
Drivers included
Yes

Other features

Special features
TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Packaging content
Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide
