ASUS WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - HD Audio (8-channel)

Manuf P/N: 90SW00J0-M0EAY0

APAXON#: 4846253

EAN: 4712900962956

ASUS WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - HD Audio (8-channel)
  • Powerful performance with Intel® Xeon® W processor and ECC memory
  • High Speed networking with dual Intel® 10G LAN
  • Ultimate graphics power with up to 4-way NVIDIA® SLI™ and AMD® CrossFireX™
  • Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen2 Type-A and Type-C connections
  • ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
  • Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance

Similar Products

Compare All

ASUS WS C422 SAGE/10G, Intel, LGA 2066 (Socket R4), 14 nm, DDR4-SDRAM, 512 GB, Quad-channel

Processor

Processor socket
LGA 2066 (Socket R4)
Lithography
14 nm nm
Processor manufacturer
Intel

Memory

Number of memory slots
8
Maximum internal memory
512 GB GB
Supported memory types
DDR4-SDRAM
Memory channels
Quad-channel
Supported memory clock speeds
2133,2400,2666 MHz MHz

Storage controllers

RAID support
Yes
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
4-Way CrossFireX, 4-Way SLI

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
PS/2 ports quantity
0
VGA (D-Sub) ports quantity
0
DVI-D ports quantity
0

Network

Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Intel® X550-AT2

Features

Audio output channels
7.1 channels channels
Audio chip
Realtek ALC S1220A
Motherboard chipset
Intel® C422
Component for
Workstation
Motherboard form factor
CEB
Motherboard chipset family
Intel

Operational conditions

Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
20 - 90% %
Operating temperature (T-T)
10 - 35 °C °C

Logistics data

Harmonized System (HS) code
84733020

Weight & dimensions

Width
305 mm mm
Height
300 mm mm
Depth
267 mm mm

Internal I/O

USB 2.0 connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
TPM connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
8
Number of EATX power connectors
1
EPS power connector (8-pin)
Yes
Number of chassis fan connectors
2
Number of COM connectors
1

Expansion slots

PCI Express x8 (Gen 3.x) slots
0
PCI Express x16 (Gen 2.x) slots
0
PCI Express x8 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
7
Number of M.2 (M) slots
2

BIOS

Clear CMOS button
Yes
BIOS type
UEFI

Other features

Maximum LRDIMM memory
512 GB GB
Number of DIMM slots
8
Number of processors supported
1
Weight
2.24 kg kg

Packaging content

Cables included
SATA
User guide
Yes

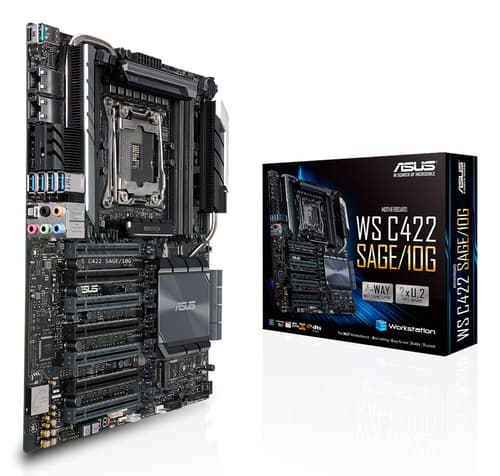

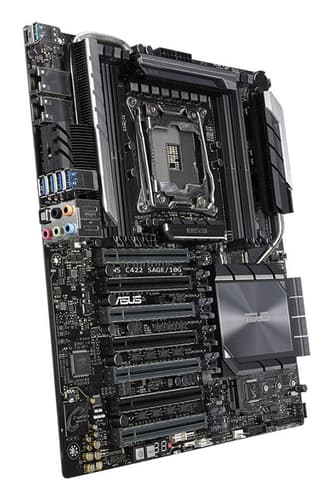

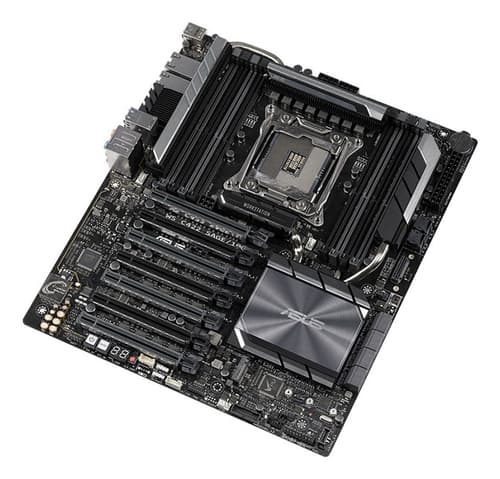

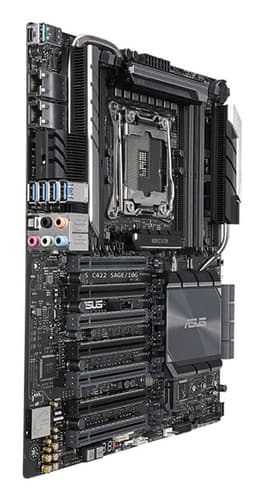

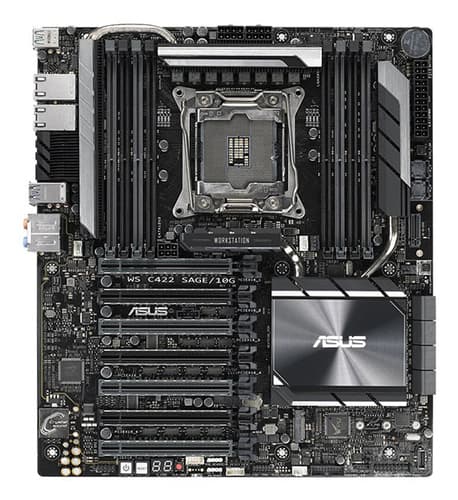

ASUS WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - HD Audio (8-channel) — image 1
