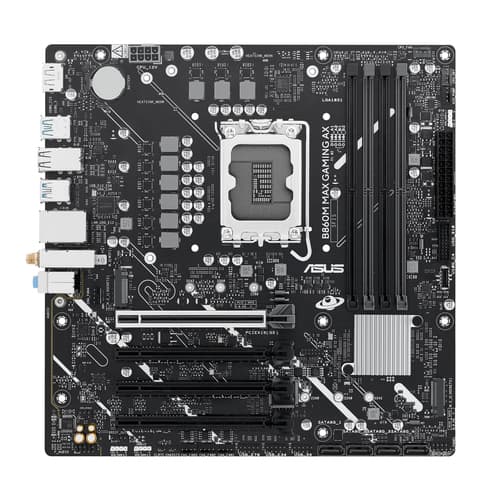

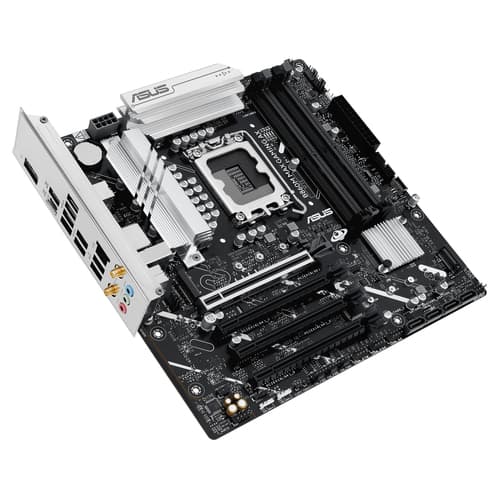

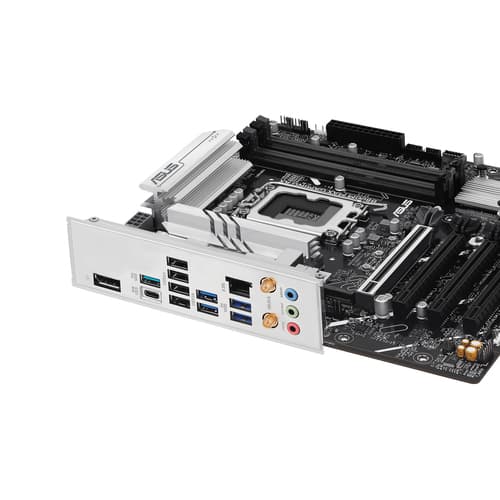

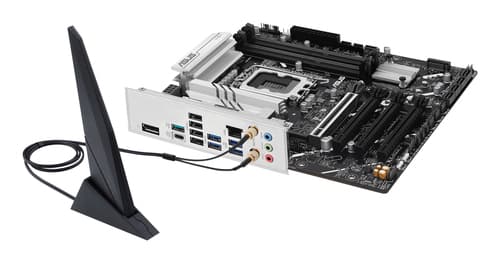

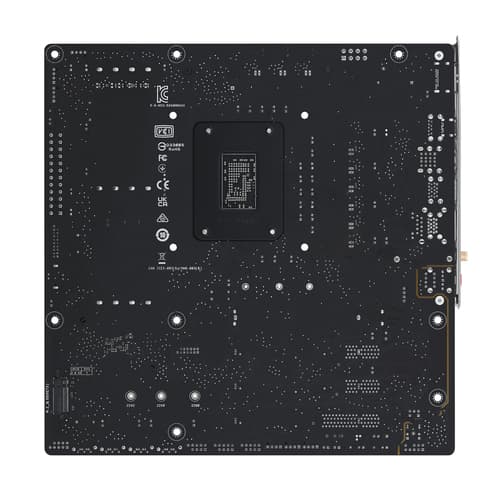

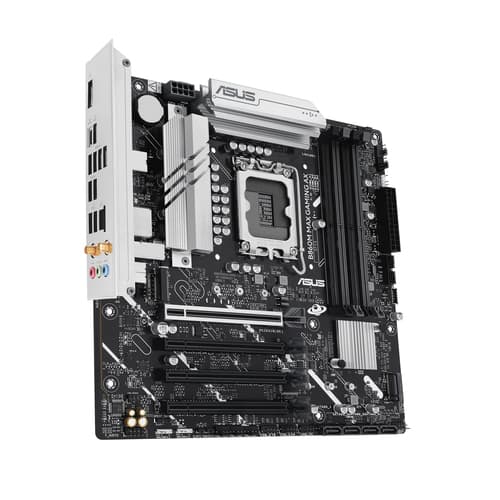

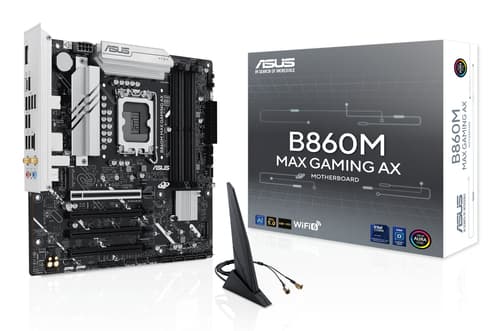

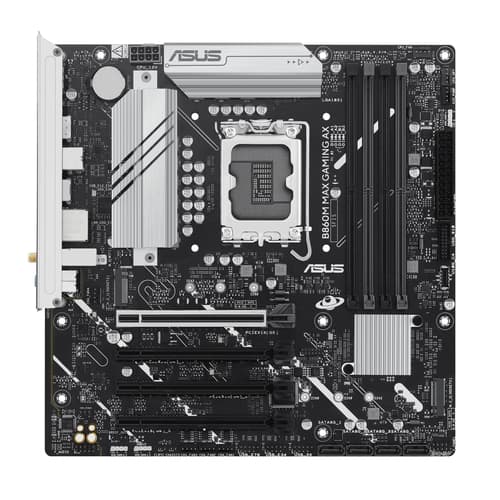

B860M MAX GAMING AX

Manuf P/N: 90MB1JZ0-M0EAY0

EAN: 4711387831694

ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax)

Similar Products

Compare All

ASUS B860M MAX GAMING AX, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851

Memory

Number of memory slots
4
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB GB
Unbuffered memory
Yes
Maximum internal memory
256 GB GB
Supported memory clock speed (max)
8666 MHz MHz
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC

Graphics

Parallel processing technology support
Not supported
Maximum resolution
3840 x 2160 pixels pixels

Storage controllers

Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
PCI Express 4.0, PCI Express 5.0
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 5, 10

Internal I/O

USB 2.0 connectors
3
S/PDIF out connector
Yes
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
1
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Front panel connector
Yes
Number of CPU fan connectors
1
CPU fan connector
Yes
Chassis intrusion connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
TPM connector
Yes
Number of RGB LED pin headers
3

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DisplayPort version
1.4
HDMI ports quantity
0
DisplayPorts quantity
1
DVI-D ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
WiFi-AP antenna jack
2
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
Line-in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Microphone in
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Wi-Fi
Yes
Ethernet LAN
Yes
Bluetooth version
5.3

Expansion slots

PCI Express x16 (Gen 5.x) slots
1
1st M.2 highest PCI Express generation
5.0
PCI Express x16 (Gen 4.x) slots
3
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
3
2nd M.2 highest PCI Express generation
4.0

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit Mbit

Packaging content

Screws included
Yes
Cables included
SATA
Antenna included
Yes

Other features

Quick installation guide
Yes

Features

Product colour
Grey
Cooling type
Passive
Audio output channels
7.1 channels channels
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Power source type
ATX
Component for
PC
Motherboard chipset
Intel B860

Weight & dimensions

Width
244 mm mm
Depth
244 mm mm

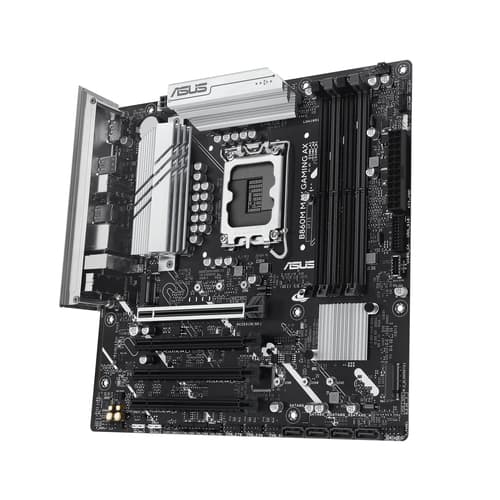

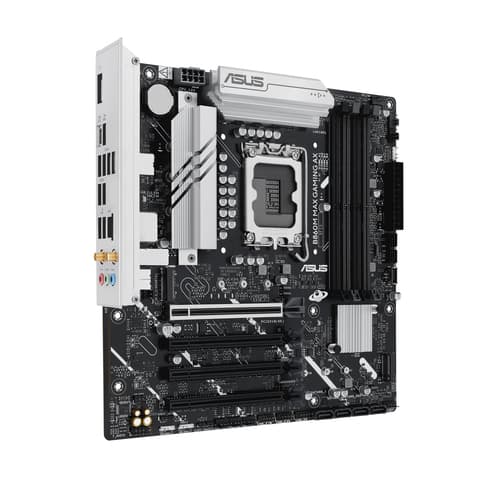

B860M MAX GAMING AX — image 1
